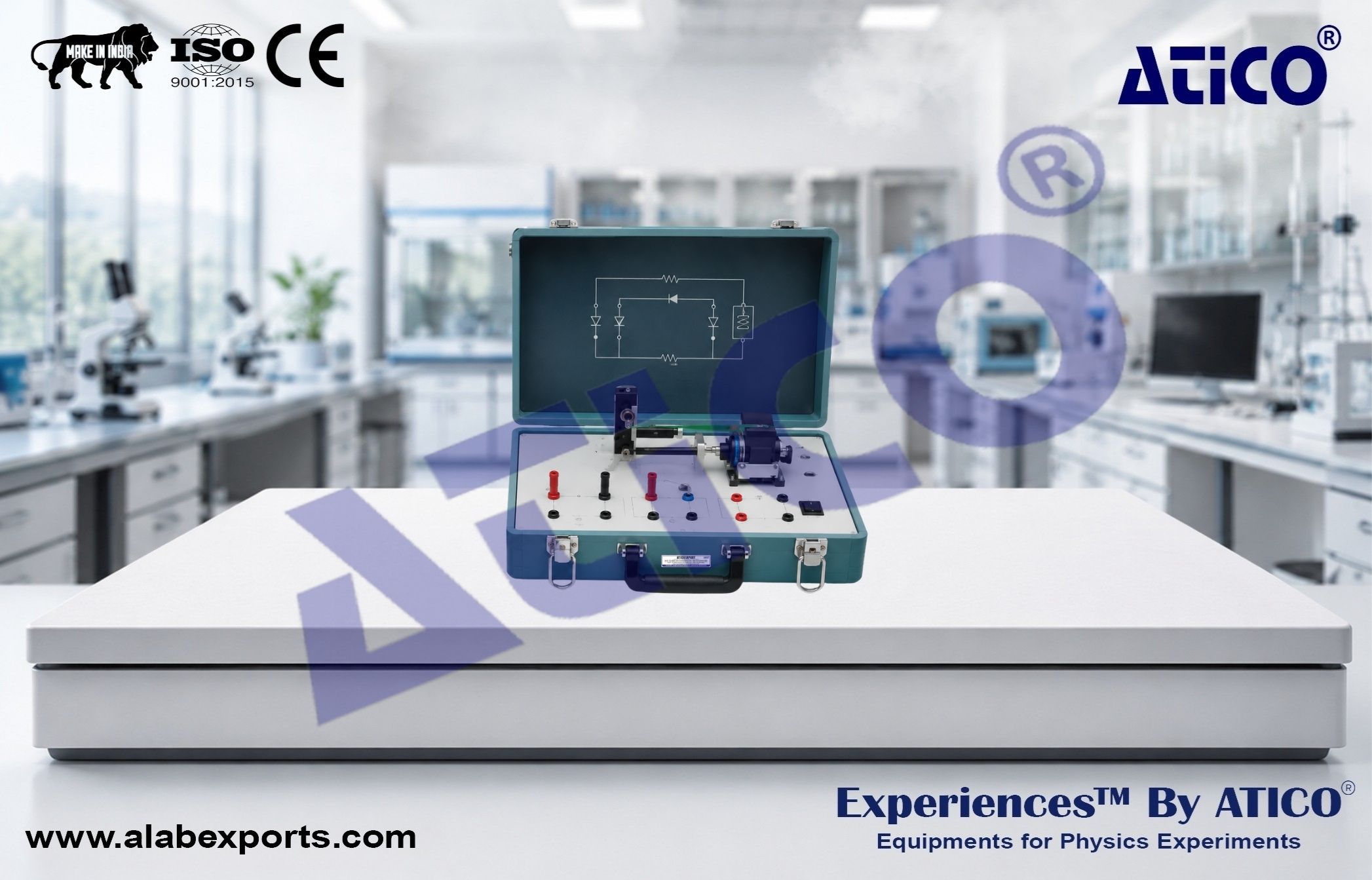

Hall Effect Experimental Apparatus

Experiments :

• Study of the Hall Effect and plotting of Hall element characteristic curves.

Experiments :

• Measurement of magnetic induction intensity using the Hall Effect principle.

Experiments :

• Investigation and mapping of the magnetic field distribution of an electromagnet coil.

Excitation Constant Current Source :

• Output Range: 0–1.2 A continuously adjustable.
• Resolution: Better than 1 mA.
• 3.5-digit LED digital display.

Sample Working Current :

• Range: 0–5 mA.
• Stability: Better than 10⁻⁵.

DC Millivoltmeter :

• Measuring Range: 0–20 mV.
• Resolution: 10 μV.

Current Reversing System :

• High-quality reversing switch for changing current direction.
• Provides reliable operation and eliminates the wear issues associated with relays and conventional switches.

Magnetic Field Generation :

• Electromagnet-based magnetic field source.
• Current range and magnetic field strength can be customized according to experimental requirements.

Manufactured By :

• Atico Export India for advanced Physics Lab Experiments.
