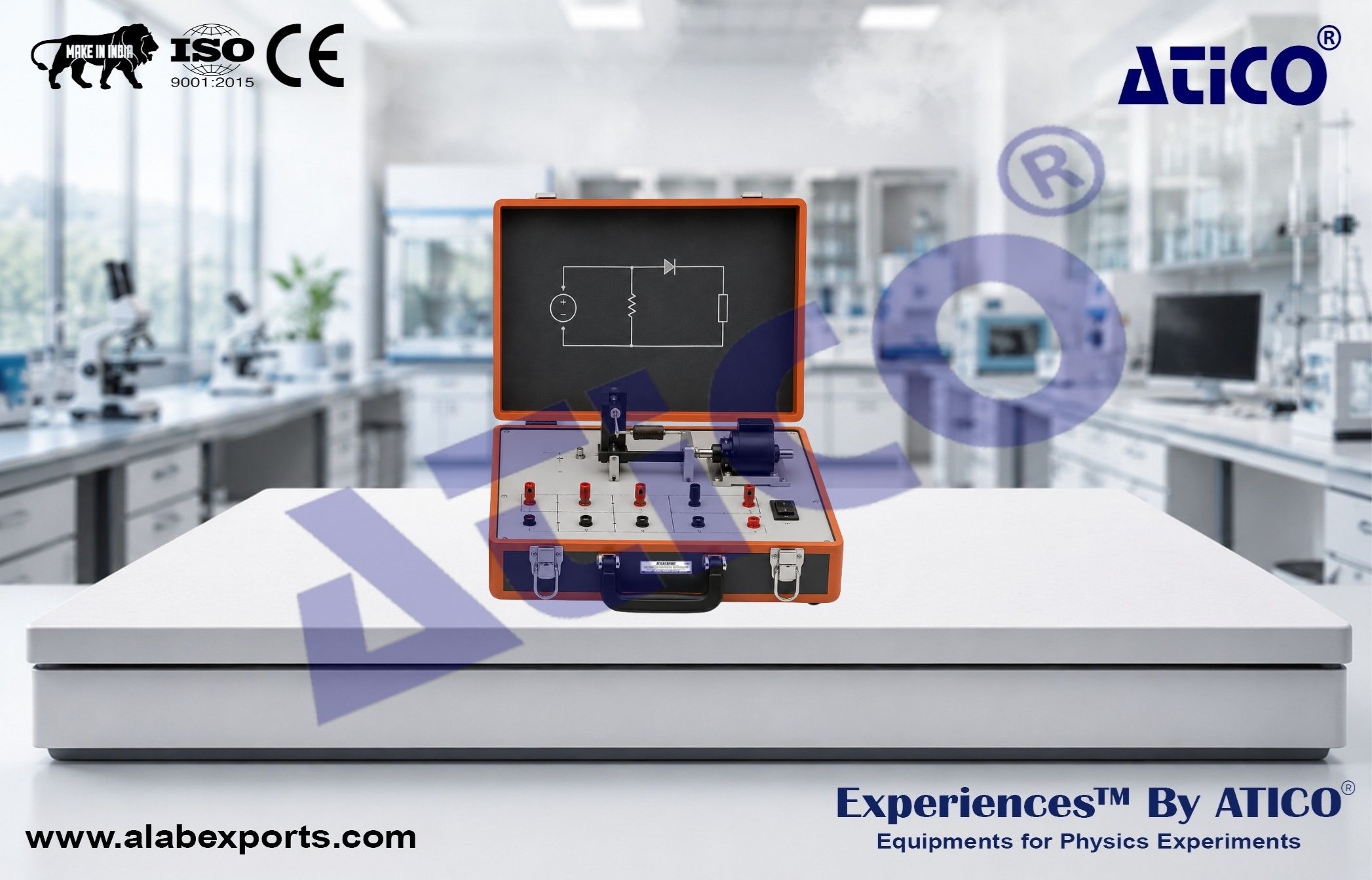

Hall Effect Experimental Apparatus (with Software)

Experiments :

• Understanding the fundamental principles of the Hall Effect.

Experiments :

• Measurement of the relationship between Hall voltage and Hall current under a constant magnetic field.

Experiments :

• Determination of the sensitivity of Hall elements in a DC magnetic field.

Stabilized DC Current Source :

• Output Range: 0–1.999 mA.
• Continuously adjustable.

Hall Element :

• Maximum operating current: 5 mA.

Electromagnet :

• Magnetic Field Strength: –190 mT to +190 mT.
• Continuously adjustable magnetic field.

Design Features :

• Improved design with enhanced functionality, accuracy, and operational performance.

Designed For :

• Physics Lab Experiments from Atico Exports.
