Heat distribution and control in heating systems

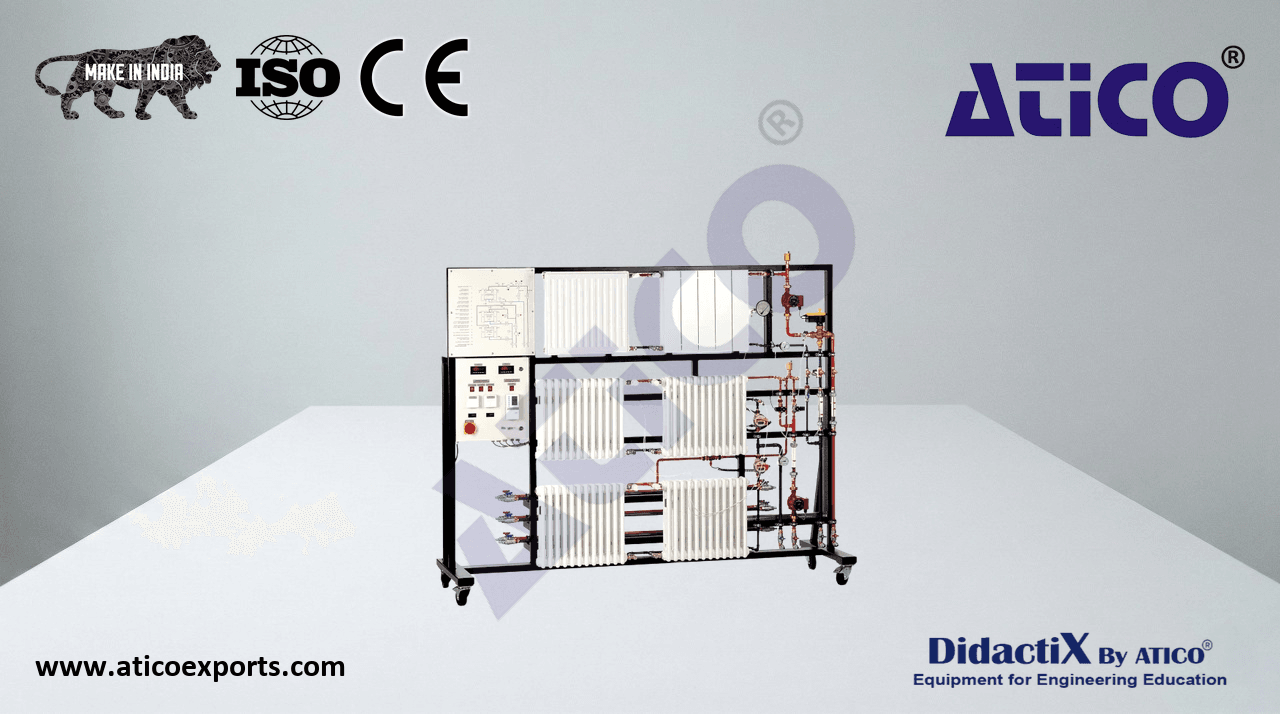

A complete domestic heating system can be set up using this trainer together with a hot water generator. Hot water passes through the radiators and heats the room air. The temperature is controlled by means of heating controllers. Learn about Heat distribution and control in heating systems suppliers for optimal educational outcomes..

• together with hot water generator: setup of a complete domestic heating system with two independent heating circuits
• heating circuit with one subcircuit contains two flat radiators, circulating pump, heating controller with 3-way mixing valve and simulator for variation of outside temperature
• heating circuit with two subcircuits contains four ribbed radiators, circulating pump, two heating controllers, two solenoid valves
• flow control valves for hydronic balancing in heating circuit with two subcircuits
• measurement of flow rate and pressure
• nine measuring points for differential pressure and temperature
• hot water connections with quick-release couplings
