Heat Pump for different Heat Sources and Heat Exchangers

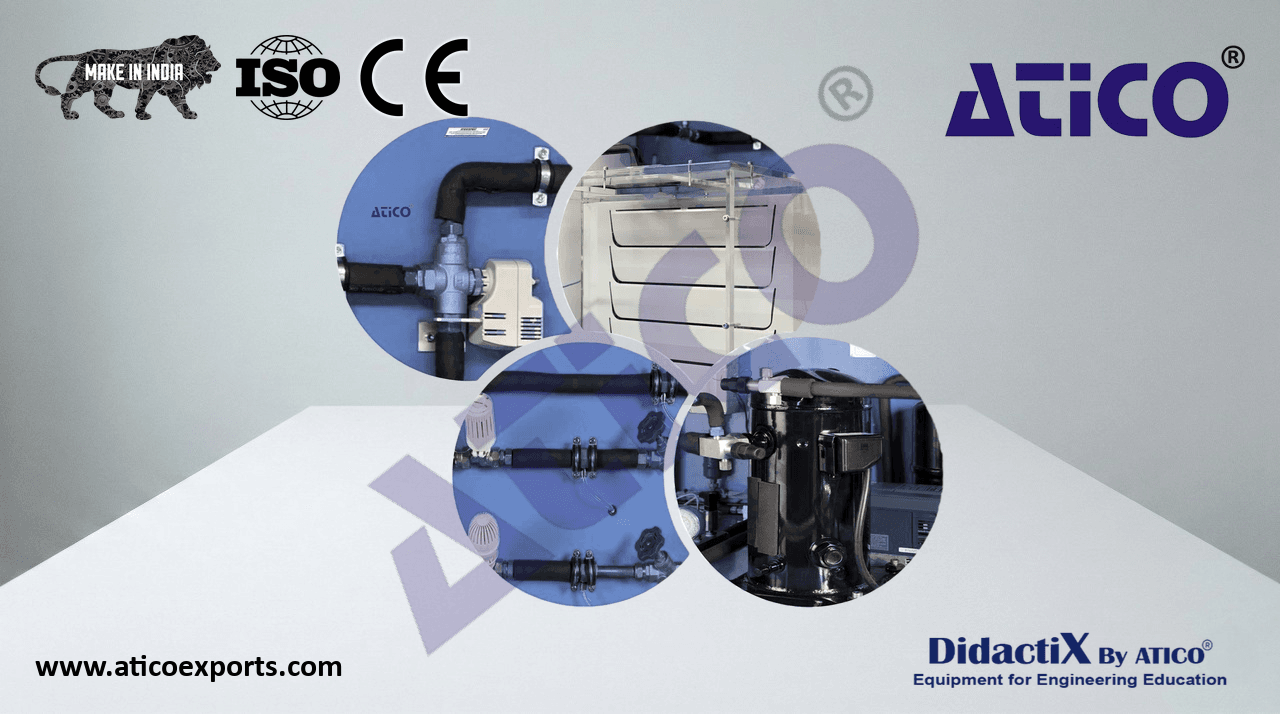

The Heat Pump for different Heat Sources and Heat Exchangers, has a heat pump that can be connected to different heat sources and heat exchangers that act as heat sinks, allowing the study of the generation and accumulation of heat and cold.

ATENG 12742 — Heat Pump for different Heat Sources and Heat Exchangers

Anodized aluminum frame and panels made of painted steel.

The unit includes wheels to facilitate its mobility.

Main metallic elements made of stainless steel.

Diagram in the front panel with distribution of the elements similar to the real one.

• Heat pump:
• Heating capacity: approx. 2.3 kW at 5/65 °C.
• Heating and source circuit pumps:
• Max. flow rate: 3 m³/h.
• Max. head: 4 m.
• Heating controller:
• Inputs: up to 16.
• Outputs: up to 16.
• Interfaces: DL bus, CAN, LAN.
• Refrigerant: R410A.
• Measuring ranges:
• Temperature:
• Four units; range: -50 °C to 180 °C.
• Three units; range: 0 °C to 120 °C.
• One unit; range: -20 °C to 60 °C.
• Flow rate: one unit; range: 20 to 2500 l/h.
• Pressure:
• One unit; range: -1 to 15 bar.
• One unit; range: -1 to 49 bar.
• Two units; range: 0 to 6 bar.
• Two units; range: 0 to 50 bar.
• One unit; range: 0 to 18 bar.
• Two units; range: 0 to 10 bar.
• 400 V, 50 Hz, 3 phases; 400 V, 60 Hz, 3 phases.
• 230 V, 60 Hz, 3 phases; UL/CSA optional.
  Cables and accessories, for normal operation.
