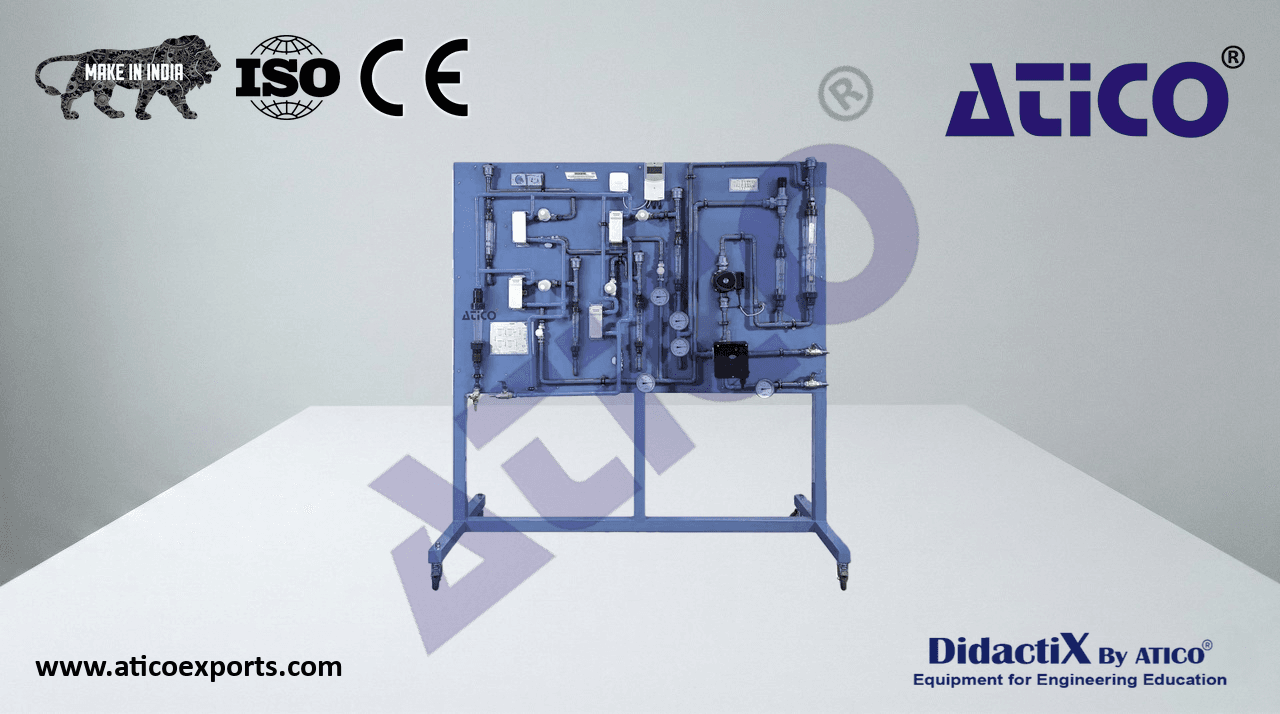

ATENG 12728 — Heating System Training Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Diagram in the front panel with distribution of the elements similar to the real one.
- Heating system:
- Circulation pump:
- Maximum flow rate: 3600 l/h.
- Maximum head: 4 m.
- Four-ways mixing valve:
- Nominal diameter: 20 mm.
- Nominal pressure: 10 bar.
- Working temperature: -10 – 110 ºC.
Heating controller with feedback of the feed flow temperature with input for two temperature sensors.
Five automatic air vents.
Overflow valve. ATENG 12728 detail
- Four radiators:
Heat exchanger with eight plates.
Four thermostatic valves to control the temperature of the radiators.
- Five bimetallic thermometers, range: 0 – 100 ºC.
- Seven rotameters:
Four of them with a range from 0 – 400 l/h.
Two of them with a range from 150 – 1600 l/h.
One of them with a range from 0 – 1000 l/h.
- Four water connections:
Two DN 15 cold water connections with quick-release fittings.
Two DN 15 boiler water connections with quick-release fittings.
