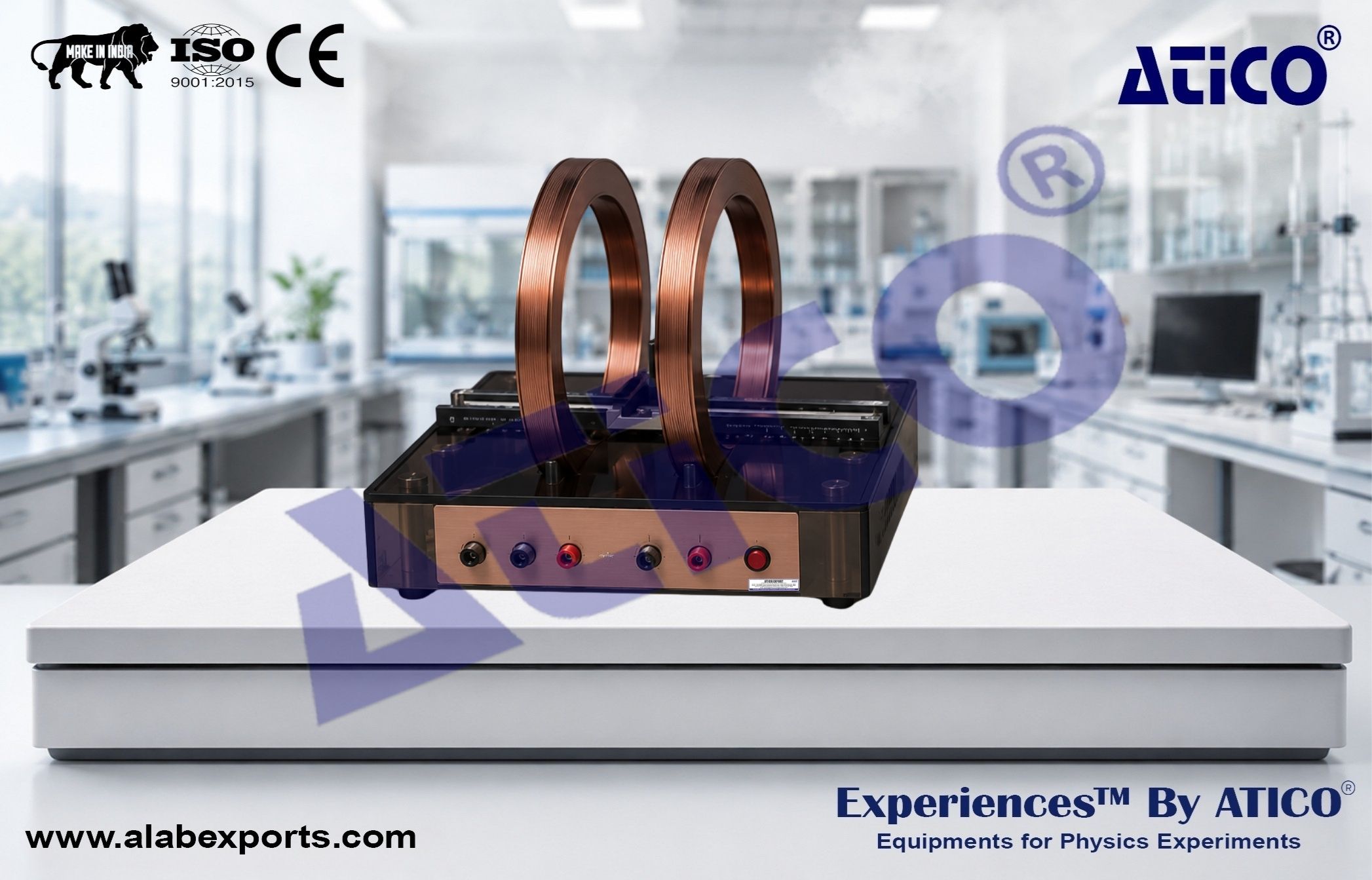

Helmholtz Coil Magnetic Field Apparatus

Experiments :

• Study of magnetic induction measurement using the principle of electromagnetic induction.

Experiments :

• Investigation of the magnitude and distribution of the non-uniform magnetic field generated by a single circular coil.

Experiments :

• Measurement and analysis of the magnetic field strength and distribution of a Helmholtz coil system.

Helmholtz Coil :

• Two identical coils with an effective radius of 100 mm.
• Center-to-center spacing: 100 mm.
• Number of turns per coil: 400.

Two-Dimensional Non-Magnetic Positioning Platform :

• Horizontal travel: ±130 mm.
• Vertical travel: ±50 mm.
• Equipped with non-magnetic guides for smooth, backlash-free movement and high positioning accuracy.

Detection Coil :

• Number of turns: 1000.
• Rotation angle: 360°.

Frequency Range :

• 20 Hz to 200 Hz.
• Resolution: 0.1 Hz.
• Measurement accuracy: ±1%.

Sine Wave Generator :

• Maximum output voltage amplitude: 20 Vp-p.
• Maximum output current amplitude: 200 mA.

AC Millivoltmeter :

• 3.5-digit LED digital display.
• Measuring range: 19.99 mV.
• Measurement accuracy: ±1%.

Manufactured By :

• Atico Export India for advanced Physics Lab Experiments.
