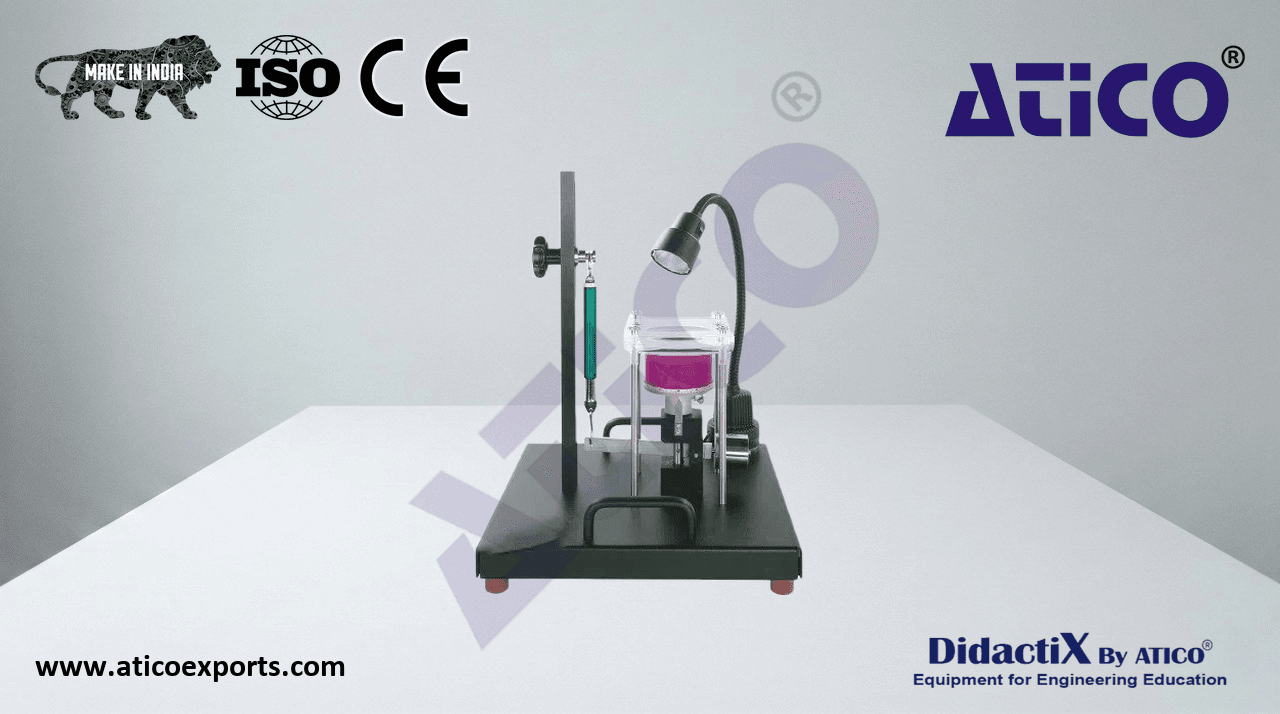

Hertzian pressure

When two bodies with a convex surface are pressed against each other, ideally, these bodies only come into contact linearly or at one or more points. In the real world, as the two bodies approach each other, an elliptical contact area occurs at the contact point due to deformation. In this case, the compressive stresses (compression) are proportionally distributed to the deformations. Learn about Hertzian pressure equipment for optimal educational outcomes.. Heinrich Hertz, a physicist, developed a theory to calculate the largest pressure, also known as Hertzian pressure. The size and shape of the contact areas and the extent and distribution of the mechanical stresses under the contact areas can also be calculated. Learn about Hertzian pressure suppliers for optimal educational outcomes..

• demonstration of Hertzian pressure
• silicone rubber pressure pad
• transparent plastic plate with grid lines makes it easier to measure the contact area
• spring scale to measure force
• movable device for the spring balance to generate a continuously adjustable contact force
• optimum illumination of the contact area by side-mounted halogen lamp
