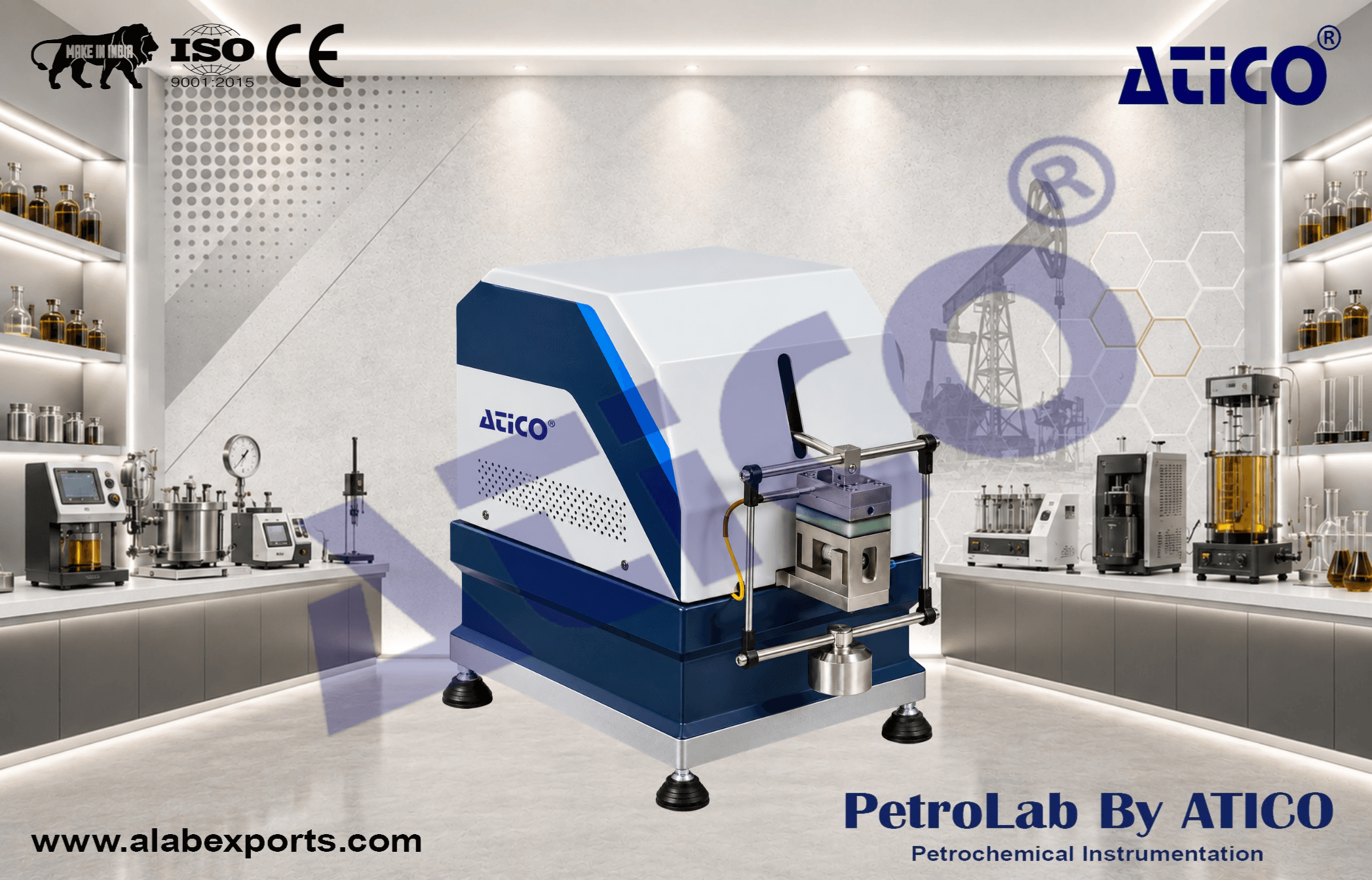

High Frequency Reciprocating Rig for Petroleum Testing Equipment

The High Frequency Reciprocating Rig is designed to evaluate the lubricity, friction, and wear characteristics of diesel fuels and other materials under dry or lubricated conditions. It is used to determine the lubricating performance of diesel fuels in accordance with applicable test methods.

During testing, a 2 mL fuel sample is placed in the test reservoir and maintained at 25°C or 60°C. A non-rotating steel ball mounted on a vibrator arm is loaded against a stationary test disk immersed in the fuel. The ball reciprocates against the disk with a specified stroke and frequency for a defined duration. After testing, the ball is cleaned, and the major and minor axes of the resulting wear scar are measured under magnification.

The system uses a voice-coil actuator and closed-loop electronic control to regulate reciprocating frequency and displacement. Integrated sensors and data acquisition software record frictional force, coefficient of friction, and temperature in real time.

Manufactured by Atico Export for reliable fuel lubricity evaluation and tribological testing in petroleum and research laboratories.

• Evaluation of diesel fuel lubricity
• Determination of wear scar dimensions
• Measurement of frictional force and coefficient of friction
• Tribological testing under dry and lubricated conditions
• Assessment of lubricant and fuel performance
• Research and quality control of petroleum products

Contact Geometry :

• Ball-on-plate configuration with point contact

Stroke Length :

• 20 microns to 2 mm

Frequency Range :

• 10 Hz to 200 Hz

Test Load :

• 1 N to 10 N using dead weights

Frictional Force Range :

• 0 to 10 N

Temperature Range :

• Ambient to 150°C

Test Disc Dimensions :

• 10 mm diameter × 3 mm thickness

Test Ball Diameter :

• 6 mm

Power Supply :

• 115 V, 60 Hz, single phase
• 230 V, 50/60 Hz, single phase

Standard Accessories :

• Test plates and test balls
• Data acquisition system and software

Optional Accessories :

• Digital microscope for wear scar measurement, requiring an external PC
• Electrical Contact Resistance (ECR) measurement system
• Ball holder
• Calibrated 200 g weight
• Humidity and temperature probe
• Thermocouple
• Additional test plates and test balls

• Variable test frequency from 10 Hz to 200 Hz
• Software-controlled reciprocating frequency and displacement
• Digital microscope and software for wear scar measurement
• Real-time data acquisition of frictional force, coefficient of friction, and temperature
• User-friendly software with customizable test sequences
• Pre-programmed automated testing procedures
• Fully computer-controlled operation
• PC-based data acquisition and analysis
• Easy on-site calibration
• Designed for repeatable and reproducible test results
• Rigid tabletop construction
• Compatible with optional electrical contact resistance measurement
• Optional humidity-controlled testing environment
