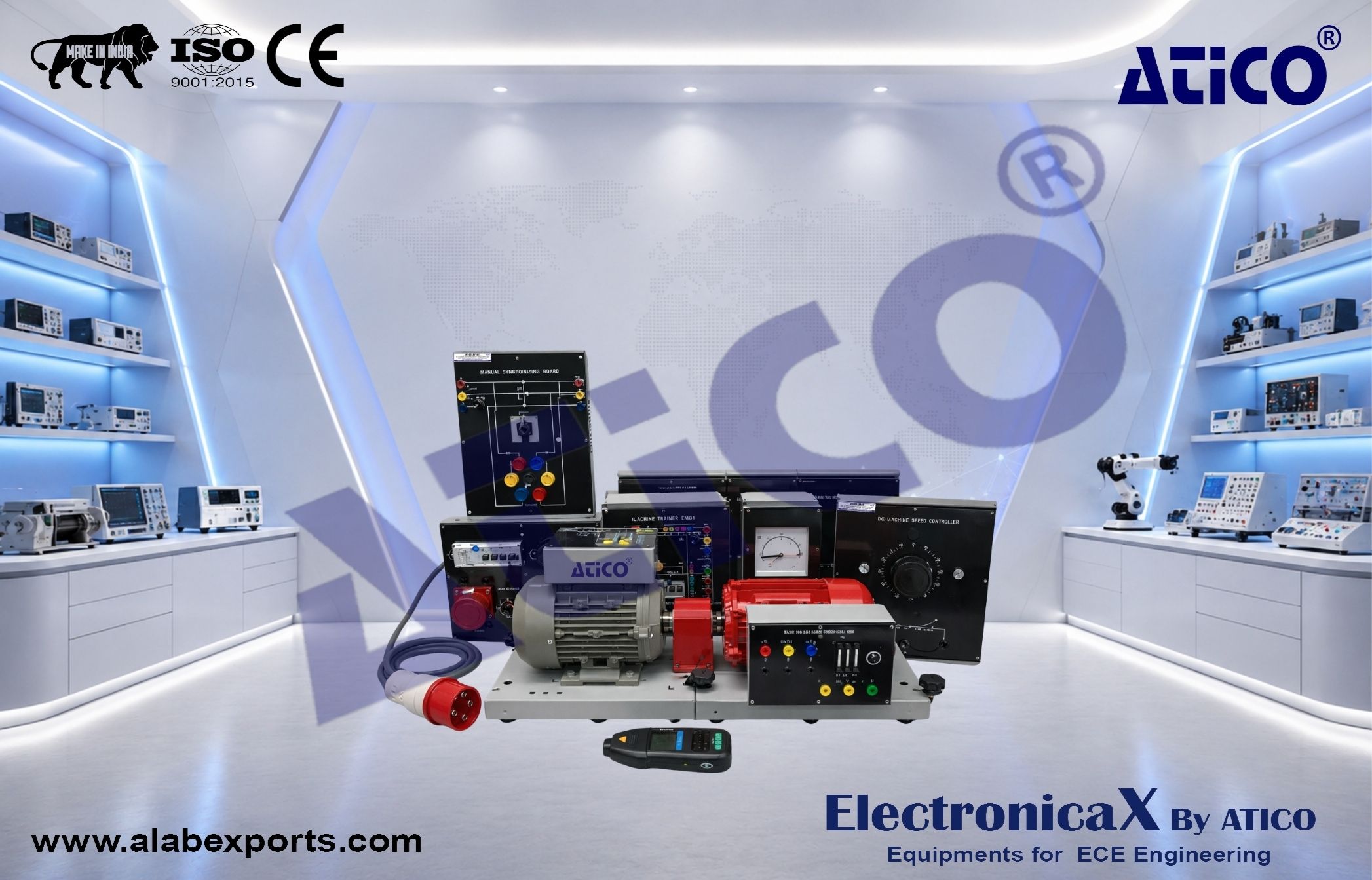

THREE PHASE POWER SUPPLY
-
The system designed to provide all fixed AC supplies which necessary in an electrical machines laboratory to perform the experiment required and work project.
-
The unit is contained in a metal housing with clear front panel identification and 4mm safety sockets that make it easy and safe.
Specification
- Power Input: 3 Phase 240V/415V, 50Hz via input 5 core cable with 5 pin AC Plug, 32A
- 5 Pin AC Socket 16A
- Indicator: 3 pilot lamp for power line in three color coded (Red, Yellow & Blue)
- Connection: 3P+N+PE
- Protection: Earth leakage circuit breaker and miniature circuit breaker
- Three Pole ON/OFF Selector Switch
Output Section
- Fixed Three Phase AC Power supply: 3 ° 415V AC; 13A AC (Line To Line)
- Fixed Single Phase AC Power supply: 3 ° 240V AC; 13A AC (Line To Neutral)
AC/DC VARIABLE POWER SUPPLY
-
The system designed to provide all fixed AC and DC supplies which necessary in an electrical machines laboratory to perform the experiment required and work project.
-
The unit is contained in a metal housing with clear front panel identification and 4mm safety sockets that make it easy and safe.
Specification
- Power Input Requirement: Single Phase 240VAC, 50Hz
- Connection: 3 Pin Power Cord (UK Type) On/Off Switch With Indicator
- Fuse Protection
Output Section
- Fixed Single Phase AC Power Supply: 240VAC, 50Hz (Channel 1)
Adjustable Single Phase AC/DC Power Supply (Simultaneously):
- 0 ~ 250VAC, 0 ~ 5A AC (Channel 2) Complete With AC Voltmeter & AC Ammeter
- 0 ~ 250VDC, 0 ~ 5A DC (Channel 3) Complete With DC Voltmeter & DC Ammeter
THREE PHASE INDUCTION MOTOR
- Rated Power: 1KW
- Rated Voltage: 240 / 415V (Delta/Star)
- Rated Current: 3.50 / 2.5 A (Delta/Star)
- Rated Speed: 1500 rpm
- Frequency: 50 Hz
- Power Factor: 0.78
- Winding Poles: 4
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Break Load Unit / Generator Unit
THREE PHASE SYNCHRONOUS MACHINE (2 Units)
- Nominal Power: 1KW
- Nominal Voltage: 240 / 415 V (Delta/Star)
- Nominal Current: 2.85 / 3.85A (Delta/Star)
- Nominal Speed: 1500 rpm
- Frequency: 50 Hz
- Excitation Voltage: 0 ~ 110 VDC
- Excitation Current: 3.5A
- Winding Poles: 4
- Terminals: 4mm Safety Socket
- Base Plate: Attachable To Prime Mover
AC/DC GENERATOR BRAKE CONTROLLER (2 Units)
Modular design
- Suitable for all type of AC and DC Generator Brake up to 3HP
- Measurement Range: 0% to 100%
- Protection: Fuse
- Unit Type: Panel H2
AC FREQUENCY INVERTER (2 Units)
- Type: 2.2KW (3HP)
- Power Supply: 1 phase 240V, 50Hz
- Output: 6.5A
- Overload: 150% min
- Machine Control Module
- AC Machine Control Terminals: 1 color coded 4mm safety socket (U1, V1 & W1)
- AC Line Voltage Terminals (230VAC, 50Hz)
- System Ground Terminal
PARALLEL SYNCHRONIZATION BOARD
Modular design
- The synchronization board complete with six indicating lamps, three line fuse protection and synchronizing switch terminated by color coded 4mm safety socket
- Suitable for investigate the synchronism between AC Generators when are parallel connected or generator with main network
- With six indicator lamps for qualitative indication of the phase relationship between mains and generator voltage (Bright-dark circuit)
- Unit Type: Panel H2
- Terminals: 4mm Safety Socket
DOUBLE VOLTMETER
Modular design
- Double voltmeter 500VAC for voltage comparison of the paralleling circuits
- Terminals: 4mm Safety Socket
- Unit Type: Panel H1
SYNCHRONOSCOPE
Modular design
- With rotational indicator for phase comparison in synchronizing circuits with three phase or single phase AC line
- Instrument: Air-core, electro-dynamic quotient movement
- Unit Type: Panel H1
DIGITAL AC VOLTMETER (2 Units)
- Measurement range: AC 0 ~ 600V
- Display: 3 ° digits 14.2 mm LED
- Accuracy: ° 0.2% ° 1 digit
- Resolution: 1V
- Input impedance: 1M°
- Power source: 220Vac, 50/60 Hz
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets (Color Coded)
DOUBLE FREQUENCY METER
Modular design
- Double frequency meter 45 – 55Hz, 500VAC for frequency comparison of the paralleling circuits
- Terminals: 4mm Safety Socket
- Unit Type: Panel H1
PHASE SEQUENCE METER
Modular design
- The display of these meters indicates the order of phase sequence to which their terminals are designed
- Instrument: Air-core, electro-dynamic quotient movement
- Unit Type: Panel H1
DIGITAL AC AMMETER (2 Units)
- Measurement range: AC 0 ~ 5A
- Display: 3 ° digits 14.2 mm LED
- Accuracy: ° 0.3% ° 1 digit
- Resolution: 0.01 A
- Input impedance: < 0.1°
- Power source: 220Vac, 50/60 Hz
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets (Color Coded)
THREE PHASE POWER QUALITY METER (2 Units)
- Display Type: HD LCD Display
- Real-Time Measurement
- Phase voltage: V1, V2, V3, Vlnavg
- Line voltage: V12, V23, V31, Vllavg
- Current: I1, I2, I3, Iavg, In
- Active power: per phase and total active power
- Reactive power: per phase and total reactive power
- Apparent power: per phase and total apparent power
- Power factor: per phase and total power factor
- Total frequency
Energy And Demand
- Four quadrant active energy: Import, Export, Total, Net
- Four quadrant reactive energy: Import, Export, Total, Net
- Active, Reactive, Apparent demand
Power Quality Analysis
- Voltage unbalance
- Current unbalance
- Voltage THD (Total harmonic distortion), Odd-even harmonic distortion
- Voltage individual harmonics, Crest factor
- Current THD, Odd-even harmonic distortion
- Current individual harmonics, K factor
Communication
- Ethernet 10/100M network port
- Trend Logging
- Phase voltage
- Line voltage
- Current
- Active power
- Reactive power
- Apparent power
- Power factor
- Frequency
- Three-phase unbalance
- Active energy
- Reactive energy
- Apparent energy
- Phase
Software Accessibility
- 4 Tariffs (DataLog) Sharp, peak, flat, valley in different season and schedule (TOU)
PowerMeter Management Software Interface
- Protection: Fuse
- Terminals: 4mm Safety Socket
- Unit Type: Panel H2
POWER MANAGEMENT SOFTWARE
- PC software for power quality meter
- True-RMS measuring parameters
- ANSI and IEC 0.2 accuracy class
- Power quality analysis
- 4 quadrant energy
- Data logging
- Measure individual harmonics from 2nd to 49th
- TOU, 4 Tariffs, 6 Seasons, 6 Schedules
THREE PHASE POWER SUPPLY MODULE (2 Units)
Modular Design
- Power Input: 3 Phase 240V/415V, 50Hz via input 5 core cable with 5 pin AC Plug, 32A
- Connection: 3P+N+PE
- Protection: Earth leakage circuit breaker and miniature circuit breaker
- Complete with START and STOP Push Button
- Three Pole ON/OFF Selector Switch
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets
PUSH BUTTON SWITCH MODULE (I) (2 Units)
- Push Button Switch 1 (NCx1, NOx1)
- Push Button Switch 2 (NCx1, NOx1)
- Push Button Switch 3 (NCx2)
- Push Button Switch 4 (NOx2)
- Unit Type: Panel H1
- Terminals: 4mm Safety Socket
CIRCUIT BREAKER (3 POLES) MODULE (2 Units)
Modular Design
- Connection: 3P+N+PE
- Three Pole Circuit Breaker
- Switch Load: 10A
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets
PILOT LAMP MODULE (2 Units)
- Modular Design
- 4 Units Pilot Lamp (Color: Red, Yellow, Blue & Green)
- Unit Type: Panel H1
- Terminals: 4mm Safety Socket
STAR DELTA STARTING SWITCH MODULE
- Modular design
- Switch load: 400VAC/15A
- Switch positions: 0-1-2 (0-Y-–)
- Terminals: 4 mm safety sockets
TACHOMETER
- Range: 5 to 99,999 RPM
- Resolution:
- 0.1RPM < 1000RPM
- 1RPM > 1000RPM
- Display: 5 Digits, 10mm (0.4–) LCD
- Accuracy: °0.05% + 1 Digits
- Photo Detection Distance: 50 to 150mm
- Battery: 1.5V AA x 4 pcs
- Memory: Last Value, Max. Value, Min. Value
COUPLING HUB, NYLON SLEEVE & SAFETY GUARD
- Application: Motor & Generator
- Coupling Sleeve For Mechanical Connection Of Two Electrical Machines
EXPERIMENTAL TABLE
- 5– Standard Desktop
- Dimension:
- Length: 1500mm
- Width: 800mm
- Height: 850mm
- 3 Layer Drawers (Optional)
COMPUTER DESKTOP SYSTEM (OPTIONAL)
- Operating system: Windows 10 Home 64
- Processor: Intel° Celeron° J1800 with Intel HD Graphics (2.41 GHz, 1 MB cache)
- Hard drive description: 500 GB 7200 rpm SATA
- Keyboard: USB wired Windows 8 keyboard
- Pointing device: USB wired optical mouse
- Network interface: Integrated Ethernet 10/100 BASE-T
SELECTOR SWITCH MODULE (2 Units)
- Switch 1: 4 Pole Selector Switch
- L1, L2, L3 and N
- Switch Load: 415Vac, 10A
Switch 2: 2 Way Selector Switch
- Way 1: Normally Close (NC)
- Way 2: Normally Open (NO)
Switch Load: 240Vac, 5A
Switch 3: Key Switch
- Way 1: Normally Close (NC)
- Way 2: Normally Open (NO)
- Switch Load: 240Vac, 5A
- Unit Type: Panel H1
MAGNETIC CONTACTOR MODULE (3 Units)
- Modular Design
- 3 Pole Magnetic Contactor
- Auxiliary Switch (NCx2, NOx2)
- Unit Type: Panel H1
- Terminals: 4mm Safety Socket
CURRENT LIMIT PROTECTION MODULE (2 Units)
- Modular Design
- Connection: 3P+N+PE
- Switch Load: 415Vac, 10A
- Current Setting Range: 4 ~ 6.3A (Adjustable Current Limiting)
- Complete with START and STOP Push Button
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets
TIMER MODULE (2 Units)
- Supply Voltage: 240VAC, 50Hz
- Time Range: 30 Sec
- Contact Rating: 240VAC, 5A
Timer 1:
- Contact 1 (NCx1, NOx1)
- Contact 2 (NCx1, NOx1)
Timer 2:
- Contact 1 (NCx1, NOx1)
- Contact 2 (NCx1, NOx1)
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets
ROTATION REVERSING SWITCH MODULE
- Modular Design
- Switch Load: 400VAC/15A
- Switch positions: FORWARD-OFF-REVERSE
- Unit Type: Panel H1
- Terminals: 4mm Safety Sockets
CONNECTING SAFETY TEST LEAD SET
- The set consists of 2 type lead set and 2 type bridging plug set in 5 different coded colors and lengths chosen to allow the realization of all experiment manual
- Leads are capable of 15A current safety plugs (4mm):
- 25cm ° 10 units
- 50cm ° 10 units
- 100cm ° 5 units
- 19mm Bridging Plug Set ° 10 units
- 19mm Bridging Plug Set (Stackable) ° 10 units
EXPERIMENT PANEL FRAME
- Din Standard A4 With Two Shelves
- Side Frame: T Shape
- Dimension:
- Length: 1450mm
- Width: 20mm
- Height: 300mm
