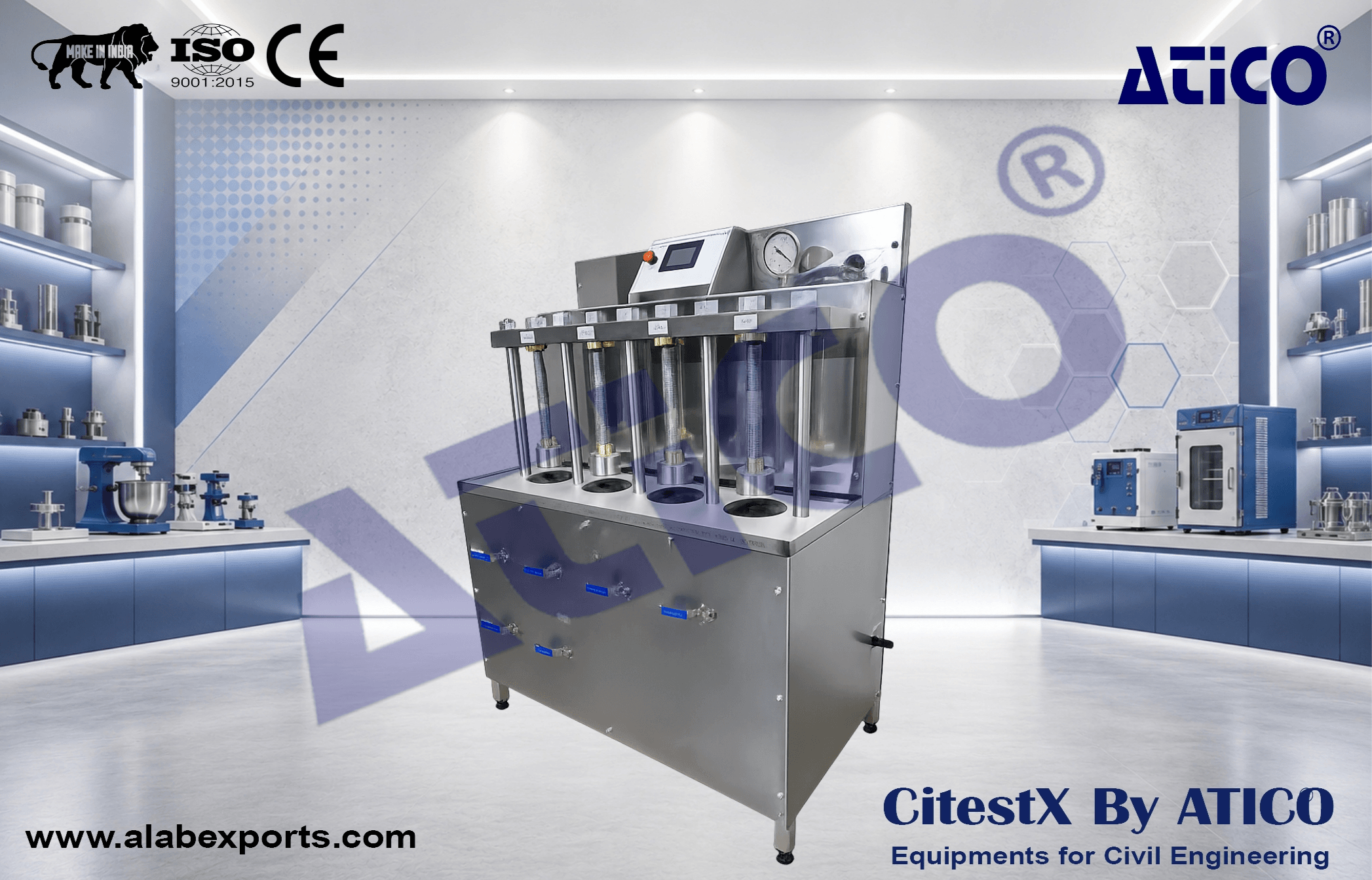

Automatic High Pressure Permeability Tester is used for the determination of the depth of penetration of water into hardened concrete specimens under pressure.
Capacity & Specimen Types :
Specimen capacity: 4, 6, 12 or 18 specimens.
The system can test :
°75, °100, °150, °200 mm cube specimens
°100 ° 200 mm and °150 ° 300 mm cylinder specimens
Maximum pressure: up to 40 bar, with 0.1 bar precision.
Impermeability gaskets for every cell and the measurement apparatus are supplied with the device as standard.
Technical Data :
Measuring range: 1–40 bar
Universal rubber seals: 75, 100, 150, 200 mm
Electronic controller with high-resolution touch screen
Controlled by pressure regulator with pressure gauge (0.1 bar graduation)
Data test with quantitative measurement of water penetration
