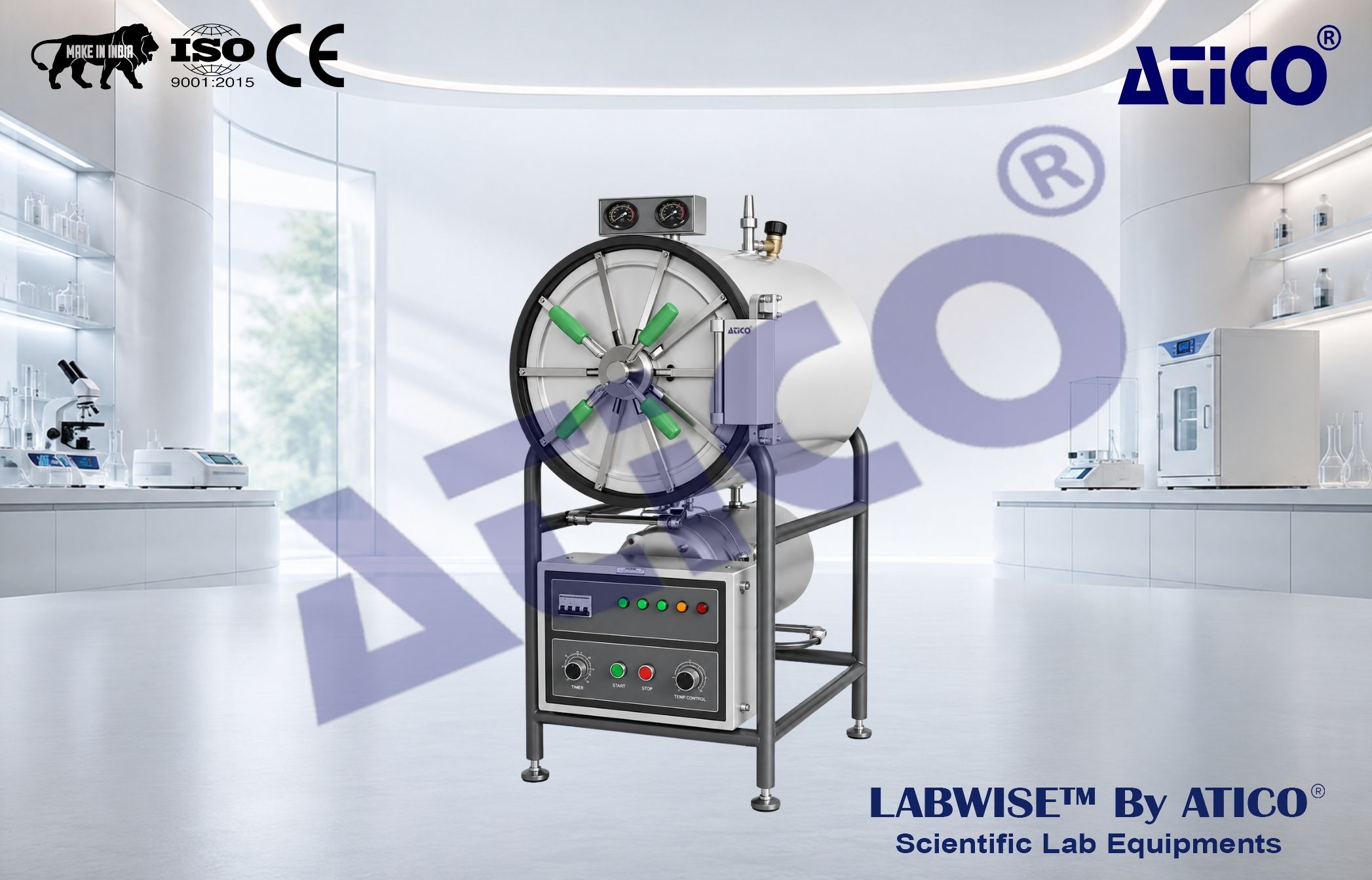

Horizontal Autoclave ALB578

Horizontal Autoclave is designed for efficient and high-capacity sterilization with a 280 L chamber capacity. It operates within a temperature range of 40 to 134 °C and maintains a working pressure of 0.22 MPa for consistent sterilization performance. The unit features automatic over-temperature and over-pressure protection for enhanced operational safety. A safety interlock system prevents accidental steam release, while the stainless steel chamber ensures durability and reliable long-term operation. Laboratory Equipment from Atico Exports.

• Sterilization of surgical instruments
• Laboratory utensils
• Test fabrics
• Hospitals
• Operating rooms
• Pharmaceutical units
• Scientific research laboratories

Capacity :

• 280 L

Temperature Range :

• 40 to 134 °C

Maximum Working Temperature :

• 134 °C

Temperature Uniformity :

• ≤ ±2 °C

Working Pressure :

• 0.22 MPa

Maximum Working Pressure :

• 0.23 MPa

Timer Range :

• 0 to 60 min

Drying Time Range :

• 0 to 60 min

Power Consumption :

• 12 kW

Power Supply :

• AC 380 V / 50 Hz

Interior Dimensions :

• Φ 600 × 1000 mm

Exterior Dimensions :

• 1400 × 770 × 1780 mm

Packaging Dimensions :

• 1680 × 920 × 2100 mm

Net Weight :

• 365 kg

Gross Weight :

• 465 kg

• Pressure alarm
• Safety valve
• Low water protection
• Overcurrent protection
• Stainless steel chamber
• Energy-efficient operation
• User-friendly interface
• Automatic over-temperature protection
• Automatic over-pressure protection
• Safety interlock system
• Reliable and consistent sterilization performance
