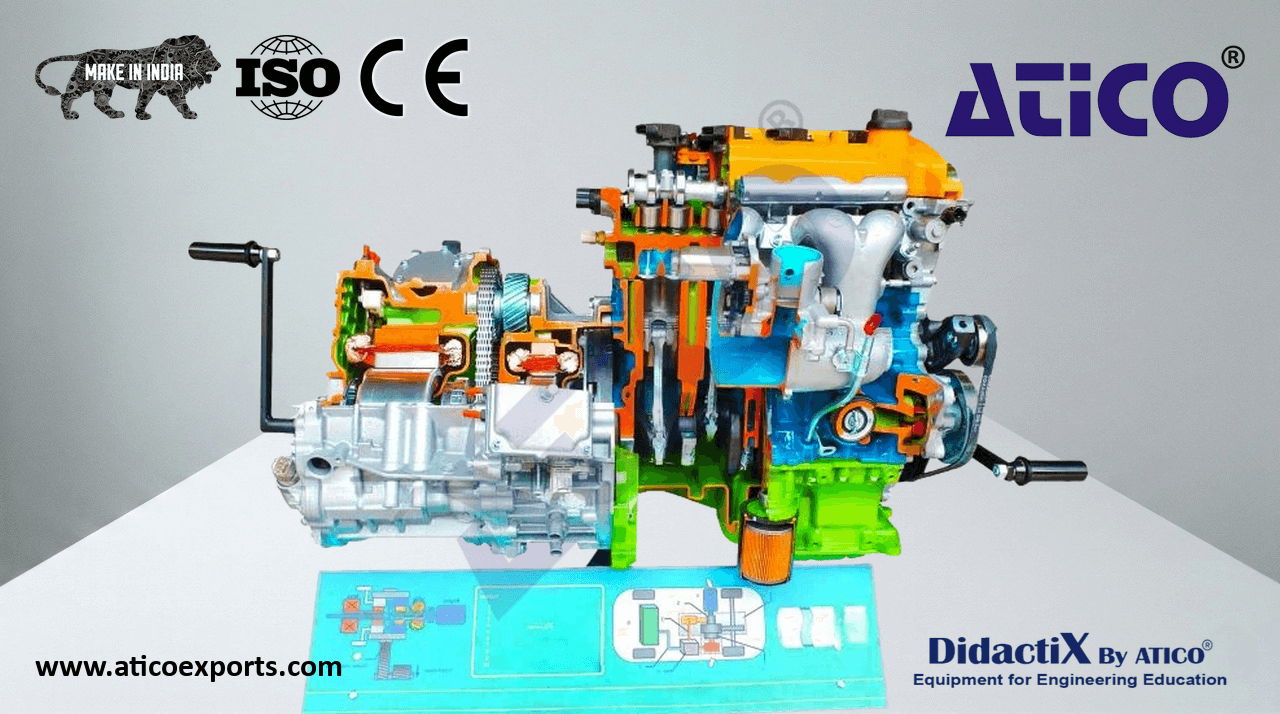

+91 98967 93832This is a parallel-type hybrid engine — a combination of a 1. 5L gas engine and a Nickel-Hydrogen battery-powered motor.
**
Technical Features:
| Feature | Details |
|---|---|
| Engine Type | Water Cooled Series, 4 Cylinders |
| Valve | DOHC 16 Valves |
| Gross Displacement | 1496 cc |
| Motor Type | AC Synchronous, Permanent Magnet Synchronous |
| Max Engine Output | 77PS / 5,000 rpm |
| Max Motor Output | 68PS / 1,200~1,540 rpm |
| Max Engine Torque | 11. 7 kg-m / 4,200 rpm |
| Max Motor Torque | 40. 8 kg-m / 0~1,200 rpm |
Weight & Dimensions:
Also available is the electrically operated version for clear instruction of the concepts and stages of the hybrid system.
