Hydraulic and Electro-Hydraulic Application

The includes a set of practical exercises through which the students will understand how to work with the most common elements of a hydraulic and electro-hydraulic system.

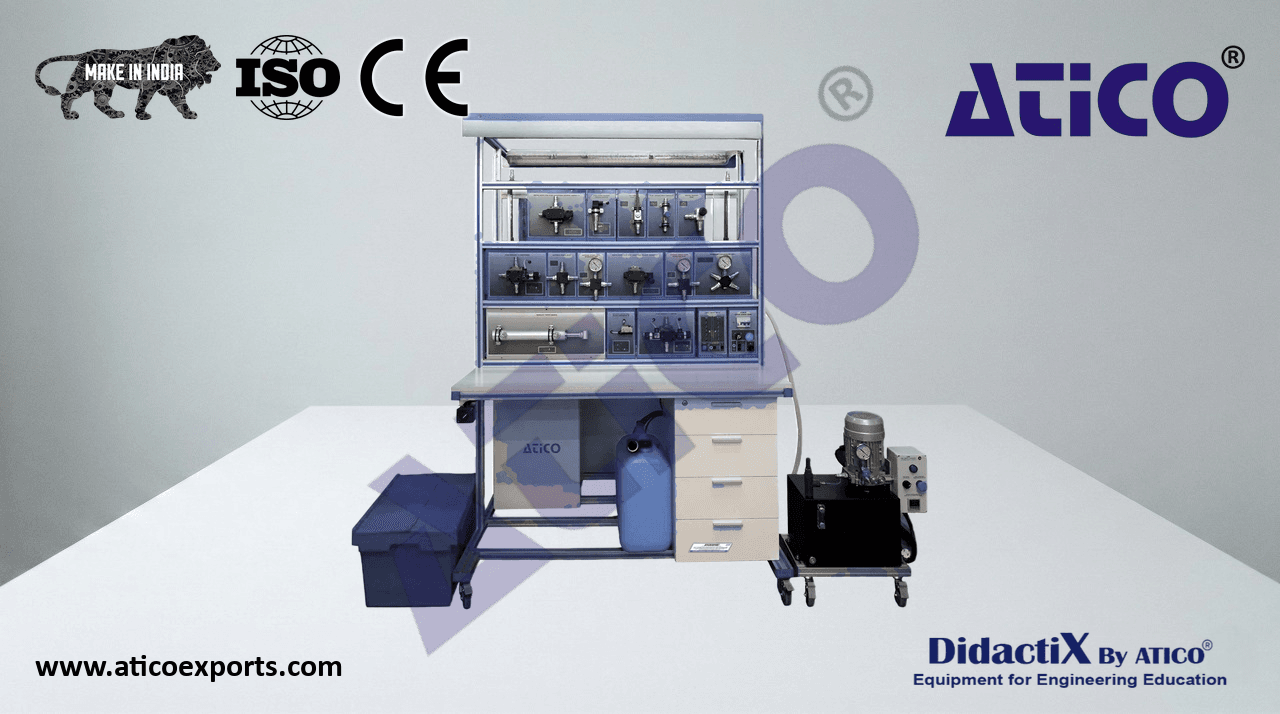

ATENG 12391 — Hydraulic and Electro-Hydraulic Application

• All the hydraulic components of the “ATENG 12391” application:
• Work with a working hydraulic pressure of 50 bar.
  The components include quick and self-sealing connectors with built-in Stop Mechanism.
  Are attached to a screen printed metallic plate with the name and the standard symbol of the component. These metallic plates are
  designed to be placed on the workbenches.
• Optional kits of Hydraulic components:
• HK-K0. Kit to Study the Hydraulics Fundamentals:
• Pressure control valves:
  N-HVHO01. Hydraulic Pressure Limiting Valve Module.
  Knob to regulate the pressure level.
• Pressure regulation: 5 - 50 bar.
• Flow control valves:
  N-HVHO02. Hydraulic Shut-off Valve Module.
  Shut-off valve.
  N-HVAFC01. Adjustable Flow Control Hydraulic Valve Module. N-HVHO01
  Knob to regulate the flow.
  Graduated scale.
• Manual distribution valves:
  N-HVHO09. Monostable 4/3 Hydraulic Valve with Closed Center Activated by Toggle Lever Module.
  Mechanical activation by lever.
  Closed center.
  Spring return. N-HVHO02
• Maximum flow: 60 l/min.
• Maximum pressure: 350 bar.
• Hydraulic actuators:
  N-HACT01. Hydraulic Double Effect Cylinder Module.
• Material: stainless steel.
  Ball head at the end of the rod.
• Diameter: 40 mm.
• Stroke: 200 mm. N-HVHO09
• Connection parts and accessories:
  N-HHP03. Hydraulic Hoses Set Module 3.
  0.6 m hose (6 units).
  1 m hose (6 units).
  2 m hose (4 units).
• Hard plastic box to keep the components of the unit:
  N-HACT01
  Polypropylene.
• Capacity: 58 l.
  Lid attached to the box.
  N-HMAN02. Hydraulic Cross-shaped Manifold with Pressure Gauge Module.
  Three available intakes.
• Manometer, range: 0 - 100 bar, with glycerin damping and diameter of 63 mm.
  N-TMTANK01. Transparent measuring tank Module.
  Manufactured in transparent methacrylate.
• Capacity: 3 l.
  Graduated scale.
  Overflow protection.
• Required elements (Not included):
• ATENG 12392. Hydraulic Power Unit.
  Mounted on a frame with wheels with brakes.
• Single-phase motor: 0.75 KW.
• Storage tank: 30 l.
• Maximum pressure: 150 bar.
• Maximum flow: 2.4 l/min.
  Double scale manometer (psi and bar).
  Temperature meter.
  Hydraulic fluid level indicator. ATENG 12392
  Control panel with start/stop switch, emergency pushbutton and light indicator.
  Hydraulic fluid required for normal operation included, 30 l of hydraulic oil ISO 46.
  Include the connector types to work with hydraulic units of.
  3

Specifications
