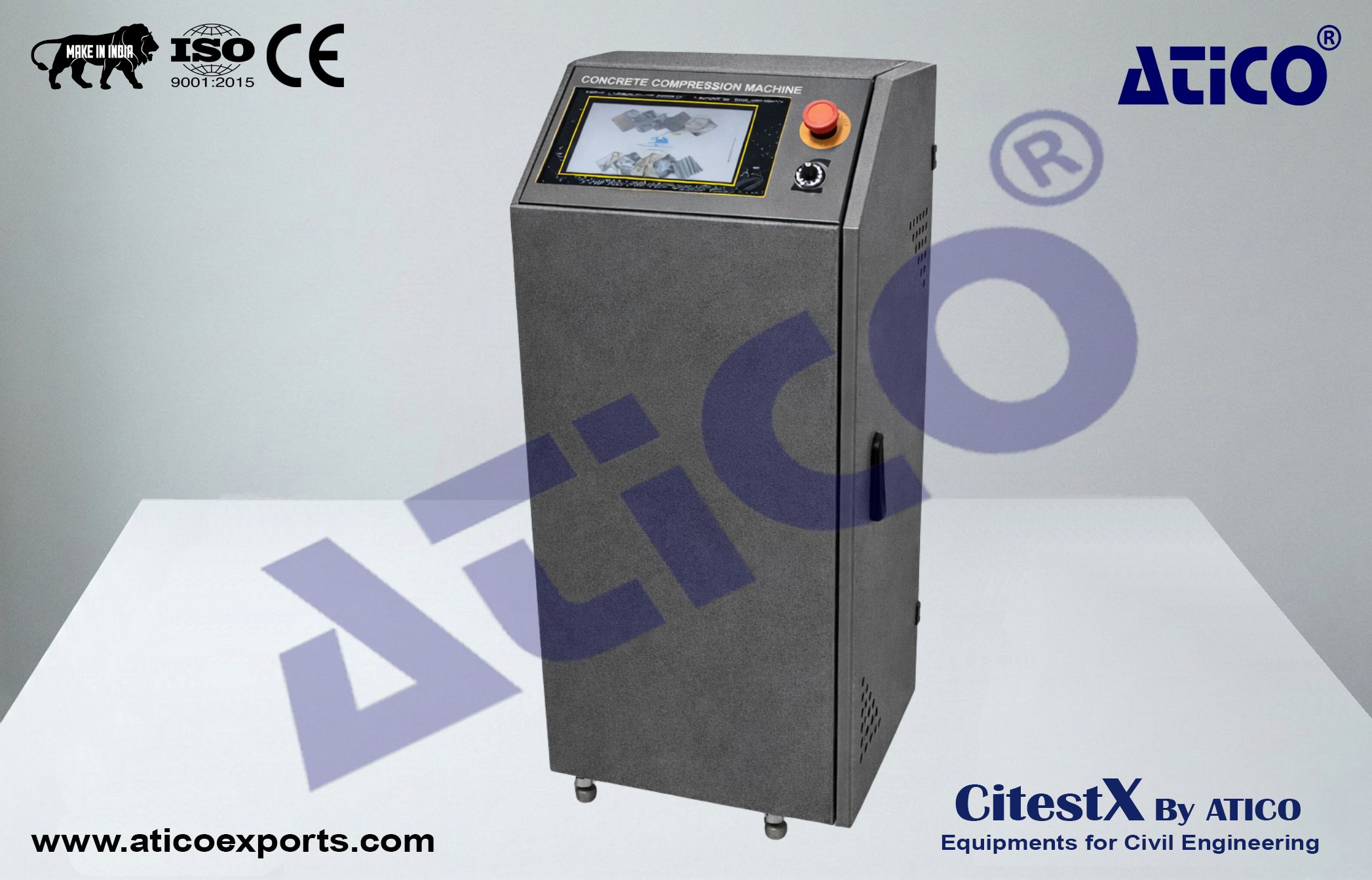

The Automatic Dual-Stage Hydraulic Power Pack is designed to supply controlled hydraulic oil flow to the load frames during testing operations.
The controller unit features a compact configuration. The Hydraulic Power Pack, Control Unit, and Readout Unit are positioned for easy accessibility, improved productivity, and safe operation.
Performance
- Loading rate: 1 – 20 kN/sec
- Accuracy: °5%
- Rapid approach pump included as standard
- Maximum working pressure: 400 bar
- Maximum pressure safety valve to prevent overloading
- Low noise operation
- Dual Stage Pump System
- The dual-stage pump consists of:
- Low-pressure gear pump
- High-pressure radial piston pump
- The low-pressure gear pump provides rapid approach.
- The high-pressure radial piston pump performs the test execution.
- The rapid approach feature significantly reduces the time between piston start and specimen contact, increasing testing efficiency when multiple specimens are tested.
Motor :
- AC motor
- Controlled via motor inverter
- Oil flow regulated by motor speed variation
Distribution Block :
- The distribution block controls oil flow direction from the dual-stage pump.
Includes:
- Solenoid valve
- Maximum pressure safety valve
- Pressure transducer
- Low-pressure gear pump
- High-pressure radial piston pump
- High Precision Pressure Transducer (Optional)
- Upgradeable to Class 1 calibration starting from 1% of full scale.
- Enables advanced applications such as:
- Early-age (2–3 days) compression strength tests
- Flexural tests (with accessories)
- Splitting tensile tests
- Mortar compression tests
- Core testing
Oil Tank :
- Capacity: 25 liters
- Oil level and temperature indicator included
- Hydraulic oil No. 46 required
DIGITAL DATA ACQUISITION & CONTROL SYSTEM
- The digital control unit is designed to manage compressive, flexural, and splitting tensile tests by processing data from load cells, pressure transducers, or displacement sensors.
User Interface
- Color resistive TFT-LCD touchscreen display
- Function keys for direct access
- Menu-driven interface
- Simultaneous display of machine status, test values, warnings, and real-time graphs
- Real-Time Graphical Display
- Load vs. Time
- Stress vs. Time
- Load vs. Displacement
- Main Control Features
- 2 analog channels for load cell, pressure, or displacement sensors
- Control of 2 separate testing frames
- Closed-loop PID load control
- Optional integrated thermal printer
- Real-time numeric and graphical display with automatic resolution adjustment
- Up to 8-point calibration support
- Adjustable digital gain for each channel
- Customizable load and position limits
- User-defined test termination conditions
- Backup and restore device settings
- Factory reset option
Storage capacity:
- Up to 10,000 test results
- Or 80 hours real-time data recording (1 sample/sec, variable interval)
- Configurable graph axes (fixed or auto-scale)
- Multiple unit systems:
- kN – MPa – mm
- lbf – psi – in
- kgf – kgf/cm° – cm
- Adjustable real-time clock and date
- Multi-language support
- LAN connection for real-time PC data transfer
- USB port for flash drive data transfer
- Password protection for calibration and settings
- Export of results in TXT and Excel formats
- Customizable IP settings
HARDWARE SPECIFICATIONS
- 2 fully customizable analog channels
- 24-bit ADC with PGA-FPGA circuitry
- 800 ° 480 pixel TFT-LCD touchscreen (65,535 colors)
- 33 Hz control loop
- 32-bit ARM Cortex-M3 processor (data acquisition)
- 32-bit ARM Cortex-M3 processor (data display)
- External USB memory support up to 32 GB
- Optional integrated thermal printer
- LAN connectivity
- USB data transfer support
- Real-time graphical display capability
PC SOFTWARE :
The included PC software is designed for:
- Data acquisition
- Test control (Start/Stop)
- Processing and analysis
- Presentation and reporting
- Database management
- The machine can be fully controlled via computer at no additional cost.
Software Capabilities
- Entry of test parameters and specimen details
- Customer and laboratory information management
- Printable reports with Load vs. Time or Stress vs. Time graphs
- Advanced database navigation
- Storage of up to 30 tests per file
- Multi-curve comparison
- Export of reports and graphs
- Flexible report formats
- Customizable user interface
- Multi-language support
- Supported Test Types
- Compressive strength of concrete cylinders and cubes
- Flexural strength of concrete beams
- Compressive strength of cement mortars
- Flexural strength of cement mortars
- Splitting tensile strength of paving blocks
- Splitting tensile strength of cylinders and cubes
- Flexural strength of roofing tiles
- Flexural strength of kerbs
- Compressive strength of masonry units
