ATENG 12725 — Hydraulic Radiator Balancing Training Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.

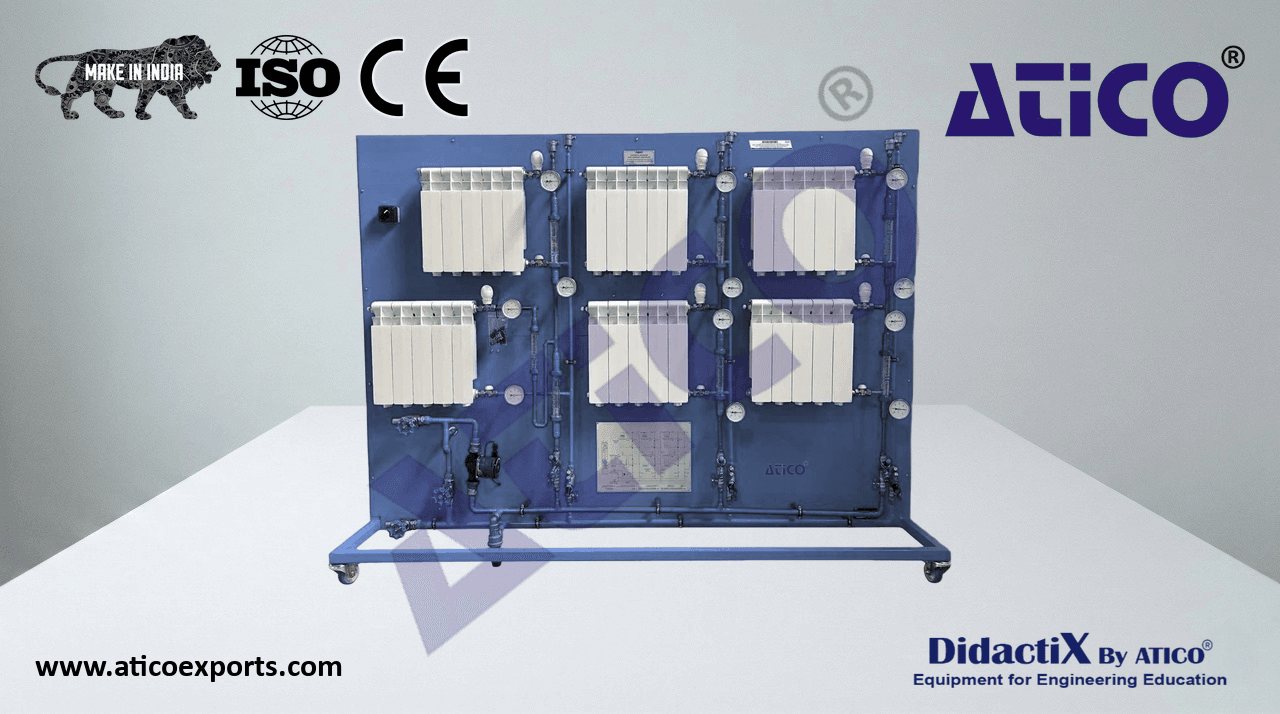

Diagram in the front panel with distribution of the elements similar to the real one.
- Heating system:
- Hydraulic circulation pump:
- Maximum flow: 3.6 m³/h.
- Maximum height: 4 m.
- Maximum operating pressure: 10 bar.
- Temperature range: -10 –110 °C.
- Six radiators:
- Dimensions: 425 x 420 mm.
Made of aluminium.
Made up of five batteries.
Thermostatic valve with thermostatic head to control the temperature of the radiators. ATENG 12725 detail
Manual air purger to remove air from the system.
Lockshield.
Six automatic air vent valve.
Six balancing valves.
Differential pressure overflow valve.
Water expansion vessel.
Built in steel or similar.
- Volume: 8 l.
- Maximum service pressure: 5 bar.
Boiler safety group according to DIN 4751.
- Seven flowmeters:
- Six with a flow range: 60 – 650 l/h.
- One with a flow range: 30 – 350 l/h.
Six butterfly valves.
Twelve thermometers at the entrance and exit of the radiators to control the temperature of entrance and exit of the radiators.
Water intakes with quick coupling.
