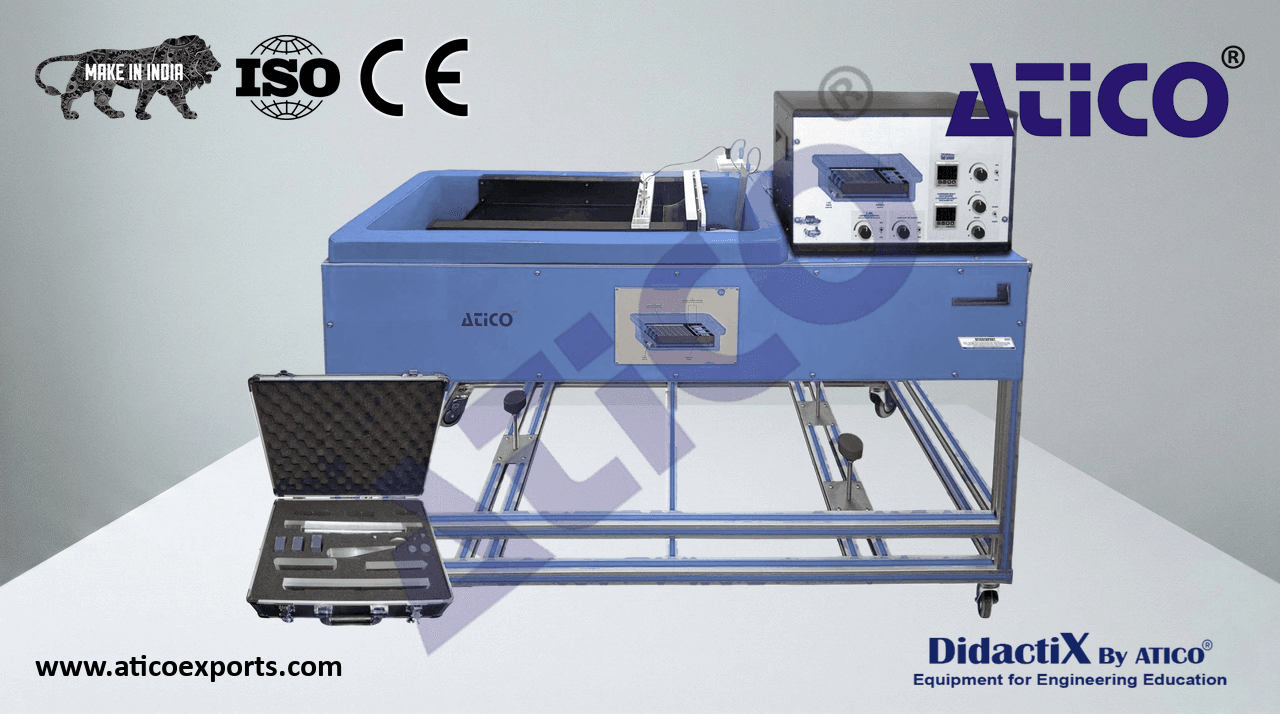

ATENG 11791 — Hydrogen Bubble Flow Visualization Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
Tank made of fiberglass with capacity of 25 l.
- Submersible adjustable speed pump:
- Maximum flow: 1320 l/h.
- Maximum height: 14 m.
Flow rectifier and inlet gate to obtain a uniform flow without turbulence.
ATENG 11791 detail
- Working section of dimensions: 600 x 290 mm, included:
Outlet gate to regulate the depth of the working section.
- Plate made of stainless steel with a thickness of 1 mm that forms the anode.
- Three threads made of platinum with a diameter of 0.2 mm and different lengths (30, 50,
- 75 mm) that form three exchangeable cathodes.
Three fork-shaped supports for the cathodes.
- Bubble generator:
- Maximum intensity: 450 mA. Pause: 0 – 2000 ms. Pulse: 0 – 2000 ms.
Set of submersible white light LEDs with adjustable intensity.
- Briefcase with set of models: Detail of interchangeable
cathodes with support
- Four cylinders made of PVC with different size (6, 12, 19, 25 mm. of diameter).
Rectangular block made of PVC (70 x 40 x 25).
- Two straight guides of 330 mm long.
Aerodynamic section made of methacrylate.
Flat plate made of methacrylate with rounded ends.
Flat plate made of methacrylate with one triangular end and one rectangular end.
Two curved plates made of methacrylate.
- Console, including:
Metallic box. Main switch.
DC switch and control. DC digital display.
Pulse time and pause between current pulses switch and control.
Pulse time and pause between current pulses digital display.
Cables and accessories, for normal operation.
