IMPACT OF A JET MODULE

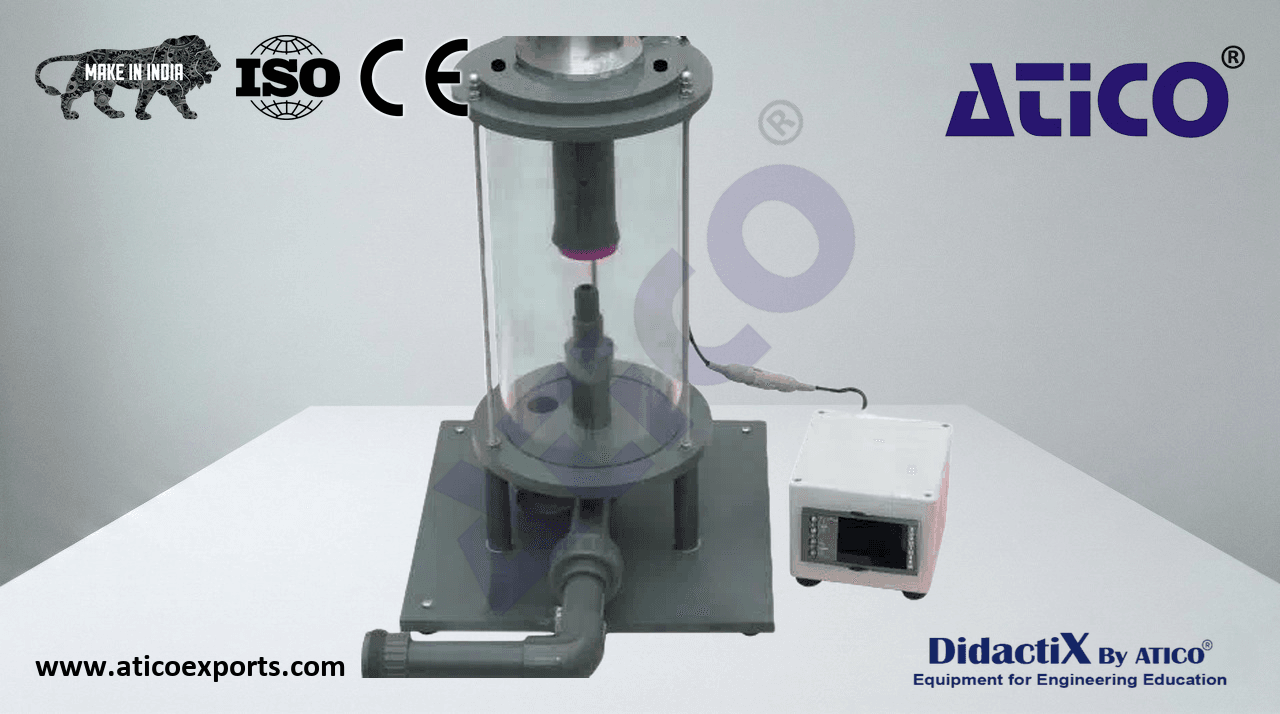

This module consists of a clear plastic cylinder in which a nozzle is housed. Pressurised water is forced through the nozzle aimed at a deflector on the upper surface. The impact of the jet causes a force on the deflector whose magnitude depends on the shape and efficiency of the deflector. Learn about IMPACT OF A JET MODULE manufacturers for optimal educational outcomes.. To measure the force exerted, a small load cell is connected to the top of the unit and connects to a digital display. The flow rate of the water can be adjusted to vary the impact on the deflectors. Learn about IMPACT OF A JET MODULE exporters for optimal educational outcomes.. Conical (male and female), flat, and hemispherical deflectors are supplied and can be easily changed by detaching the load cell module. After impact, water drains to the bottom of the enclosure and runs back into the storage tank, creating a closed recycling system. Learn about IMPACT OF A JET MODULE suppliers for optimal educational outcomes.. Screw adjustments are incorporated into the mounting point to ensure the load cell is central with respect to the nozzle. > Note: The Flowmeter Module is required for operation of this module. Learn about Digital IMPACT OF A JET MODULE for optimal educational outcomes..

• Flat Deflector: 90°
• Hemispherical Deflector: 180°
• Convex Deflector: 60°
• Deflector diameter: 48mm
• Digital Force Display: 0.01N resolution
