IMPACT OF A JET

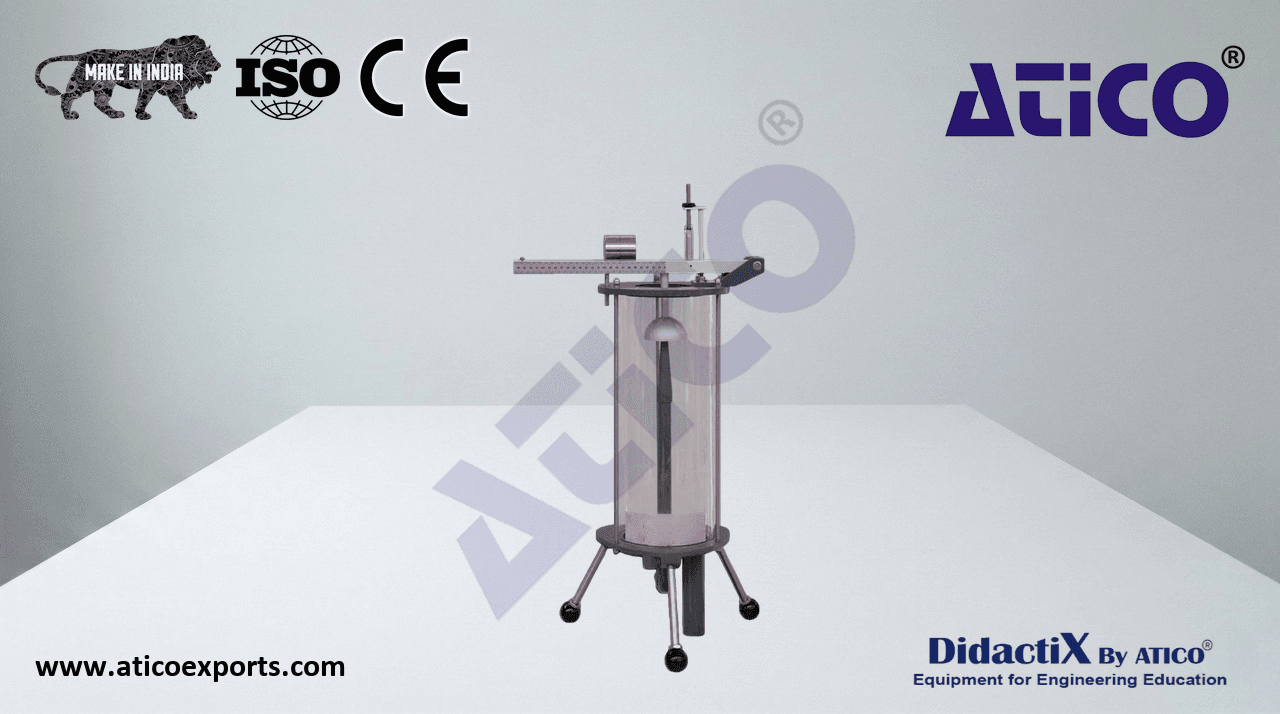

A cylindrical tank for investigating the force generated by a jet striking plates (representing turbine vanes) to aid in the understanding of how turbines work.

To understand correctly how a turbine (a Pelton wheel for example) works, students need to understand how jet deflection produces a force on turbine vanes. They also need to know how this force affects the rate of momentum flow in the jet. The Impact of a Jet apparatus shows students the force produced by a jet of water as it strikes a flat plate, angled plate, 120 degree plate, or hemispherical cup. Learn about IMPACT OF A JET exporters for optimal educational outcomes.. They can then compare this to the momentum flow rate in the jet. For use with the Digital Hydraulic Bench (available separately), the equipment comprises a transparent cylinder containing a vertically tapered nozzle and a test plate. Learn about IMPACT OF A JET price for optimal educational outcomes.. The cylinder is on legs and mounts on the top of the hydraulic bench. The nozzle, supplied by the hydraulic bench, produces a high-velocity jet of water which hits the test plate. Learn about Digital IMPACT OF A JET for optimal educational outcomes.. The test plate connects to a weigh beam assembly with jockey weight which measures the jet force. A drain tube in the base of the cylinder directs water back into the hydraulic bench, allowing accurate flow rate measurement. Learn about IMPACT OF A JET manufacturers for optimal educational outcomes..
