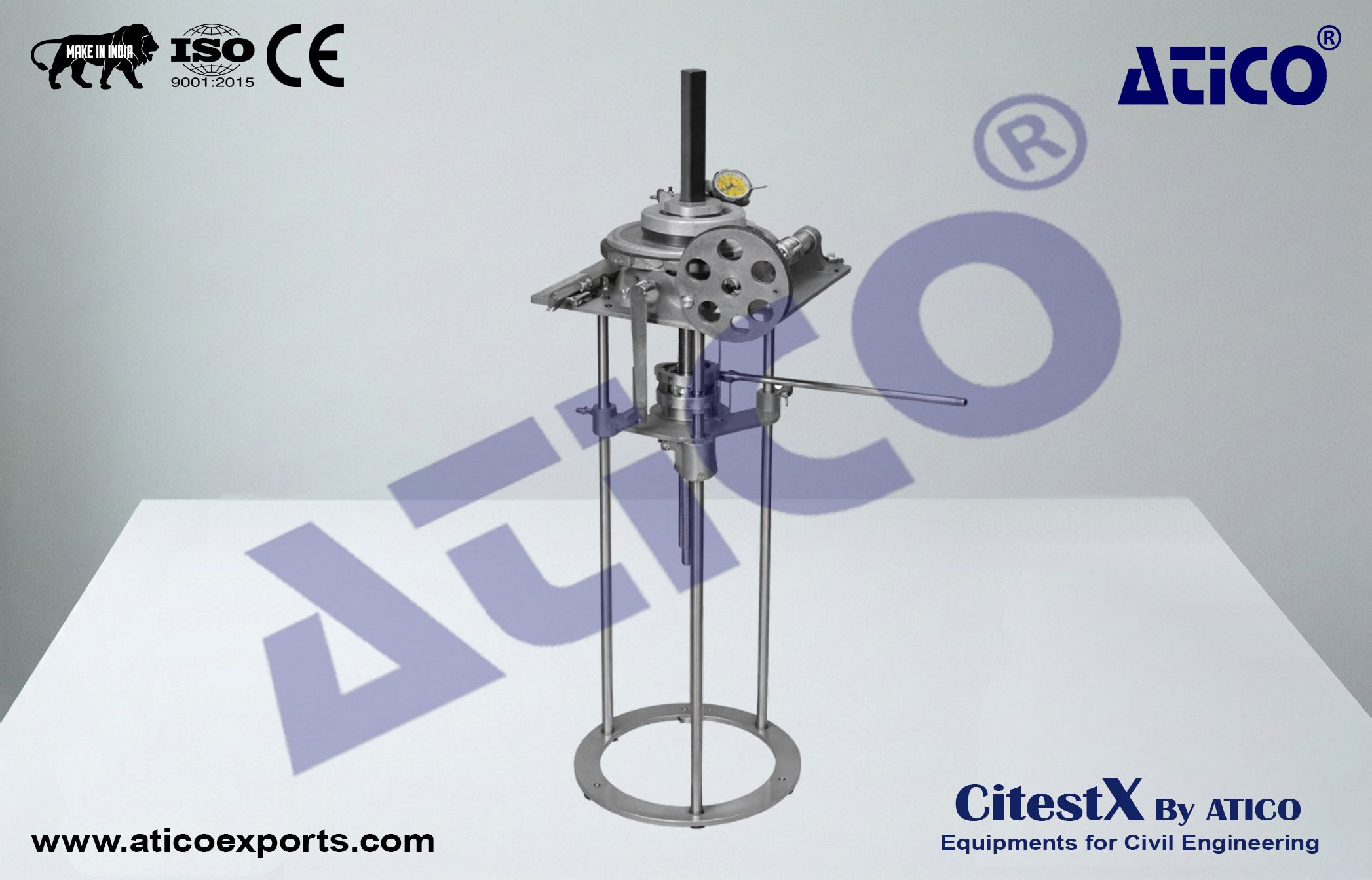

In-Situ Vane Shear Test

Usage :

• Suitable for laboratory experiment

Construction :

• Solid-Robust Construction

Torque Applicator Assembly :

• Mounted on Base, Capacity : 2000kg/cm2

Split Proving Ring :

• Complete with stand.

Dial Gauge :

• Range : 0.002 x 5mm

Major Components :

• Vane (with Vane Rod) –
• Dia. 37.5mm x Length : 75mm – 1 No.
• Dia. 50.0 mm x Length : 100mm – 1 No.
• Torque Rod (Square Cross-Section), Length : 0.6mts – 1 No.
• Rods Quick Coupling type, Length : 1 mtr.– 1 No.
• Rods Quick Coupling type, Length : 1 ° mtr.–1 No.
• Dummy Rod, Corresponding to 37.5mm Vane–1No.
• Dummy Rod, Corresponding to 50.0mm Vane–1No.

Standards Compliance :

• IS 4434-1967
