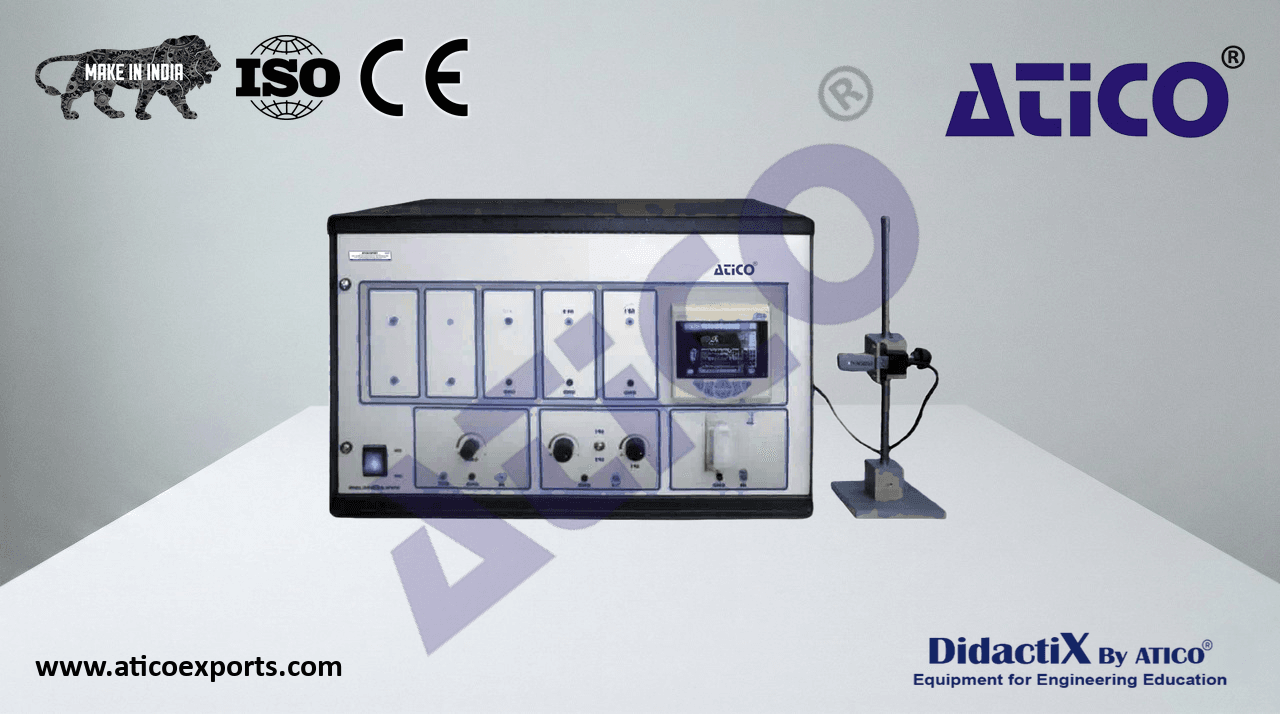

Industrial Controllers Unit

The Industrial Controllers Unit, is based on a modular design structure whose functionality is divided into different modules toallow the student a better understanding of the unit. The modules included in the unit are: industrial controller, digital voltmeter, set pointgenerator, system simulator and communication module.

ATENG 12650 — Industrial Controllers Unit

• Main unit (in metallic box), including:
• Industrial Controller:
  ABB Controller Cm30.
• Display: Color 1/4 VGA TFT, liquid crystal display (LCD) with built-in backlight.
• Language: English, German, French, Italian and Spanish.
• Operator keypad: six tactile membrane keys.
• Password protection: Basic/Advanced user-assigned password protection.
• Trend display:
  Recording of two variables.
  Configurable sample rate (1 second to 5 minutes).
• Control parameters:
• Proportional band: 0 – 999.9 %.
• Integral: 0 – 10000 s.
• Derivative: 0 – 999.9 s.
• Manual Reset: 0.0 – 100 %.
• Autotune: On-demand calculation of control settings.
• Process alarms:
• Number: 8.
• Types: High/Low process and High/Low latch.
• Acknowledgement: Via front panel keys or digital signals.
• Source: Fully configurable (for example, PV, analog input, math block inbuilt, OP control loop deviation).
• Hysteresis: Level and time.
• Alarm enable: Enable/Disable of individual alarms via a digital signal.
• Analog inputs:
• Number: 2.
• Complete configurable process input: voltage (V or mV), current (mA), resistance (ohms), Thermocouple, 3-Wire RTD, frequency,
• pulse, volt-free digital input and 24 V digital input.
  Selectable set points via software (remote from the computer) or front panel.
• Analog/Digital output:
• Number: 1.
• Type: Configurable as analog or digital pulse.
• Analog range: 0 – 20 mA (programmable).
• Control output types (Configurable through software):
  Current proportioning/Voltage proportioning (using resistor).
  Time proportioning.
  On/Off.
  Motorized valve with feedback.
  Motorized valve without feedback.
  Split output with combinations of relay digital O/P and current O/Ps.
• Relays:
• Number: 2.
• Type: N/O.
• Contact rating: 5 A, 240 V.
• Digital Voltmeter:
• Range: 0 – 10Vdc.
• Resolution: 10 mVdc.
• Set Point Generator:
  Two voltages selectable through a switch, which allows generate a step signal.
• Amplitude: 0 – 10 Vdc.
• System Simulator:
  Simulates a first order lag System.
• Time constant (T): 20 s.
  Gain 1 to 10 (clockwise direction).
• Communication module:
  Allows connect to computer using IrDA protocol.
• Software: ABB device type manager (DTM), configuration software for Control Master industrial controller versions:
  The software allows selection of type of control, industrial controller parameters, setting of alerts and alarms, type of system loop, etc.
  The access to configuration of different parameters is through a comprehensible Blocks scheme of the system process.
  Cables and Accessories, for normal operation.
