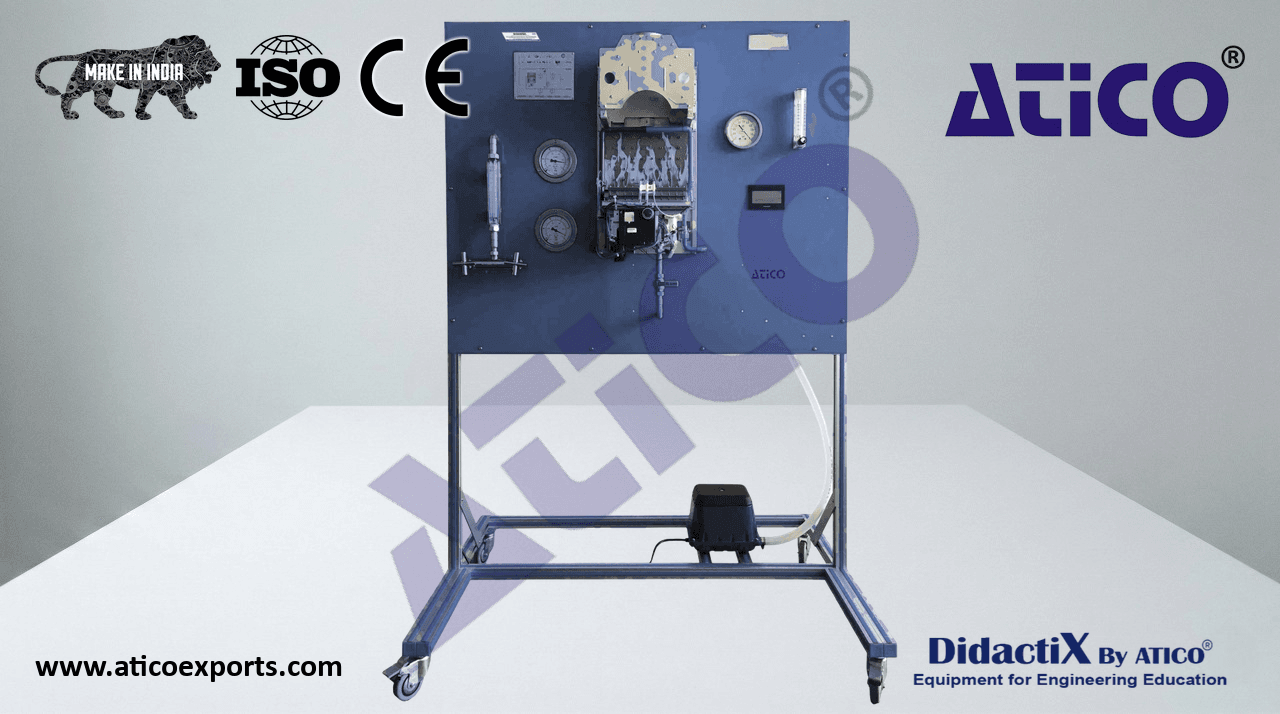

ATENG 12961 — Instantaneous Gas Heater Experimentation Unit
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Gas heater circuit:
- Diaphragm pump: 100 l/min - 0.04 mpa.
- Heater. Power: 20 Kw.
- Pressure regulator: 10 - 400 mbar.
Venturi type nozzles.
- Water flowmeter. Range: 0 - 10 l/min.
- Air flowmeter. Range: 0 - 100 l/min.
- Air manometer: 0 - 0.5 bar.
- Water manometer. Range: 0 - 6 bar.
Thermostat.
- PLC controller with touchscreen:
Box made of steel.
- Power supply: 110 - 240 Vac.
ON/OFF main switch. ATENG 12961 detail
Power supply connector.
- Protection fuse: 5 A.
RS232 cable for communication with computer.
- Panasonic FP-XC30R PLC unit. Main characteristics:
Ultra-high processing speed of 0.32 µs per instruction.
Great programming capacity of 16 Ksteps.
Memory for independent comments.
Maximum of 300 I/O (Inputs/Outputs) points.
- Touchscreen:
- Display: STN monochrome LCD. Resolution: 128 (W) x 64 (H) points. Display colors: 2. LCD duration: an average of 50000 hours.
- Backlight: 3 colors LED (green, red, orange). Different sources. Types of characters: alphanumeric characters. Graphs: straight lines,
- continuous straight lines, squares, circles, ovals, arches, elliptic arches, etc. Number of screens: 160 approx. Part of the functions:
messages, lamps, switches, data, bar graphs, keyboard. Contrast control.
Cables and Accessories, for normal operation.
