Intermediate Spectrometer Goniometer Optics Educational Kits

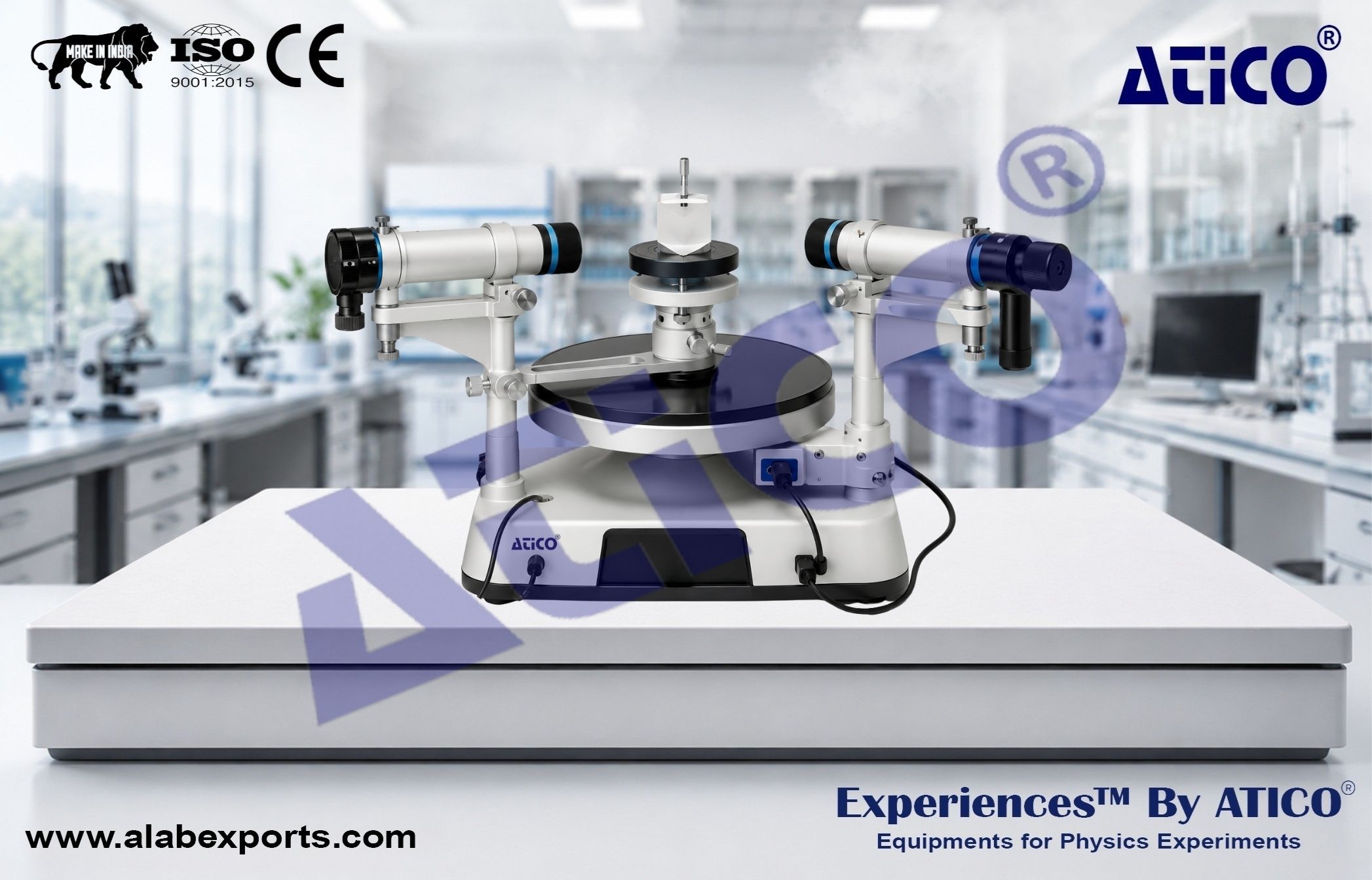

The Intermediate Spectrometer Goniometer is a precision optical instrument designed for spectroscopy, diffraction, refraction, and angular measurement experiments. Equipped with a rotatable telescope, collimator, precision graduated scale, and stable specimen stage, the system enables accurate optical measurements for physics and optics laboratories. The apparatus allows students to investigate prism optics, diffraction gratings, spectral analysis, refractive index determination, and material dispersion characteristics. Its precision mechanical construction and vernier reading system ensure reliable and repeatable measurements, making it suitable for both educational and research applications. With an optional Hydrogen-Deuterium lamp, the instrument can also be used for atomic spectroscopy experiments, including measurement of Hydrogen spectral lines and determination of the Rydberg constant. Physics Lab Experiments from Atico Exports.

Experiments :

• Measurement of Prism Angle Using Reflection Method
• Measurement of Minimum Deviation Angle of a Prism
• Determination of Refractive Index and Material Dispersion
• Measurement of Light Wavelength Using Diffraction
• Determination of Grating Constant
• Study of Diffraction and Interference Phenomena
• Measurement of Hydrogen Balmer Series Spectral Lines (Optional)
• Determination of the Rydberg Constant (Optional)

Angle Measurement Accuracy :

• 1'

Objective Focal Length (Collimator & Telescope) :

• 170 mm

Effective Aperture :

• 22 mm Diameter

Field of View :

• 3°22′

Eyepiece Focal Length :

• 24.3 mm

Maximum Distance Between Collimator and Telescope :

• 120 mm

Slit Width :

• 0.02 – 2 mm Adjustable

Eyepiece Compensation Range :

• ±5 Diopters

Stage Diameter :

• 70 mm

Rotation Range :

• 360°

Vertical Adjustment Range :

• 20 mm

Scale Disk Diameter :

• 178 mm

Graduation Range :

• 0–360°

Scale Division :

• 0.5°

Vernier Reading :

• 1'

Verniers :

• Dual Symmetrical Verniers

Prism :

• 60° ± 5'

Transformer :

• 6.3 V

Holographic Grating :

• 300 Lines/mm

Spectrometer Main Unit :

• Quantity: 1

Prism :

• Quantity: 1

Optical Parallel Plate :

• Quantity: 1

Handheld Magnifier with Illumination :

• Quantity: 1

Holographic Grating :

• Quantity: 1

Transformer :

• Quantity: 1

Cleaning Brush :

• Quantity: 1

Spare Lamps :

• Quantity: 3

Screwdriver :

• Quantity: 1

Instruction Manual :

• Quantity: 1

Optional Accessory :

• Hydrogen-Deuterium Lamp with Power Supply for Atomic Spectrum Experiments

• Copper Construction for Main Mechanical Components
• High Measurement Accuracy
• Easy Operation and Alignment
• Suitable for Spectroscopy and Angular Measurements
• Detailed Instruction Manual
