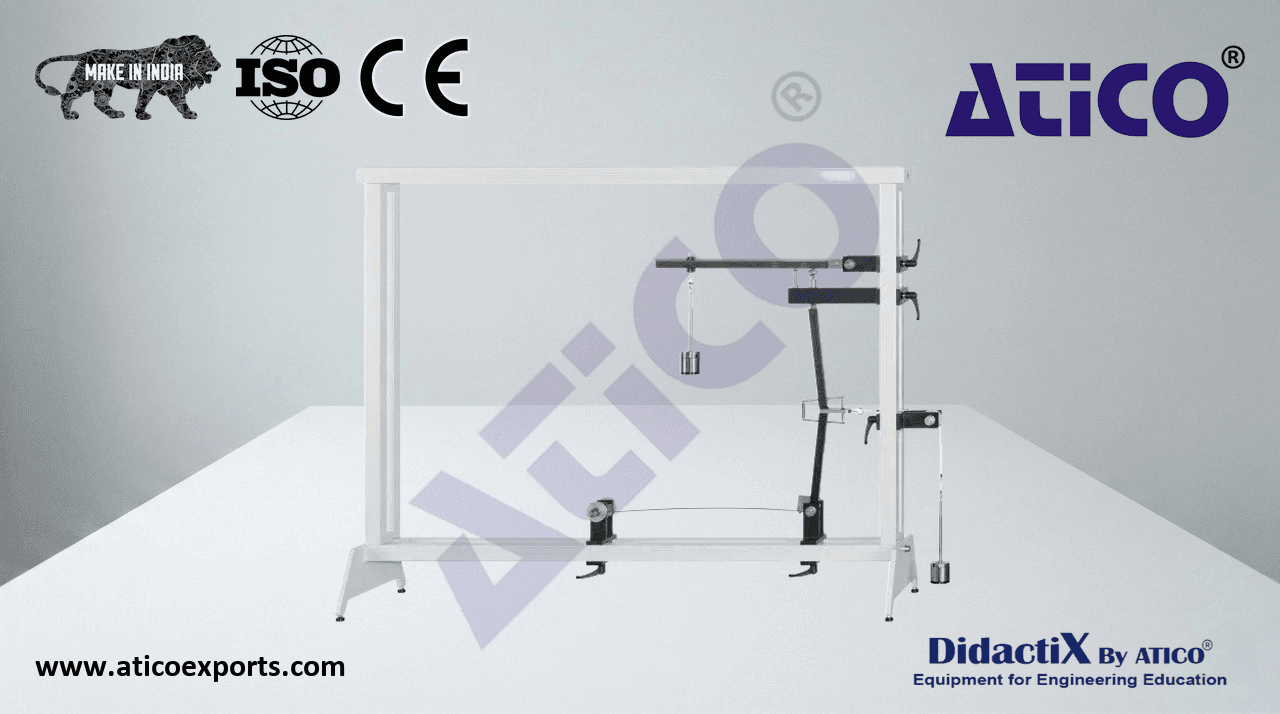

Investigation of simple stability problems

Buckling is a stability problem which occurs in practice when slim components are subjected to compressive loading. Following a –disturbance– to its equilibrium, such as caused by compressive loading, a stable system returns to equilibrium when the loading is removed. If the compressive load increases excessively, instability of the system results. Learn about Investigation of simple stability problems manufacturers for optimal educational outcomes.. The component buckles and fails. The critical compressive load at which the system becomes unstable is termed the buckling force. Learn about Investigation of simple stability problems specifications for optimal educational outcomes..

• investigation of the buckling load under different conditions (elastic joint, elastic fixed end)
• two-part buckling bar with central joint
• loading continuously variable with lever and weights
• determination of loading via scale on load application lever
• various degrees of clamping via leaf spring with variable length on bottom support
• thrust pad guided friction-free inside spherical shell
• low-friction joints with roller bearings
• device to generate shear forces
• storage system to house the components
• experimental setup in frame SE 112
