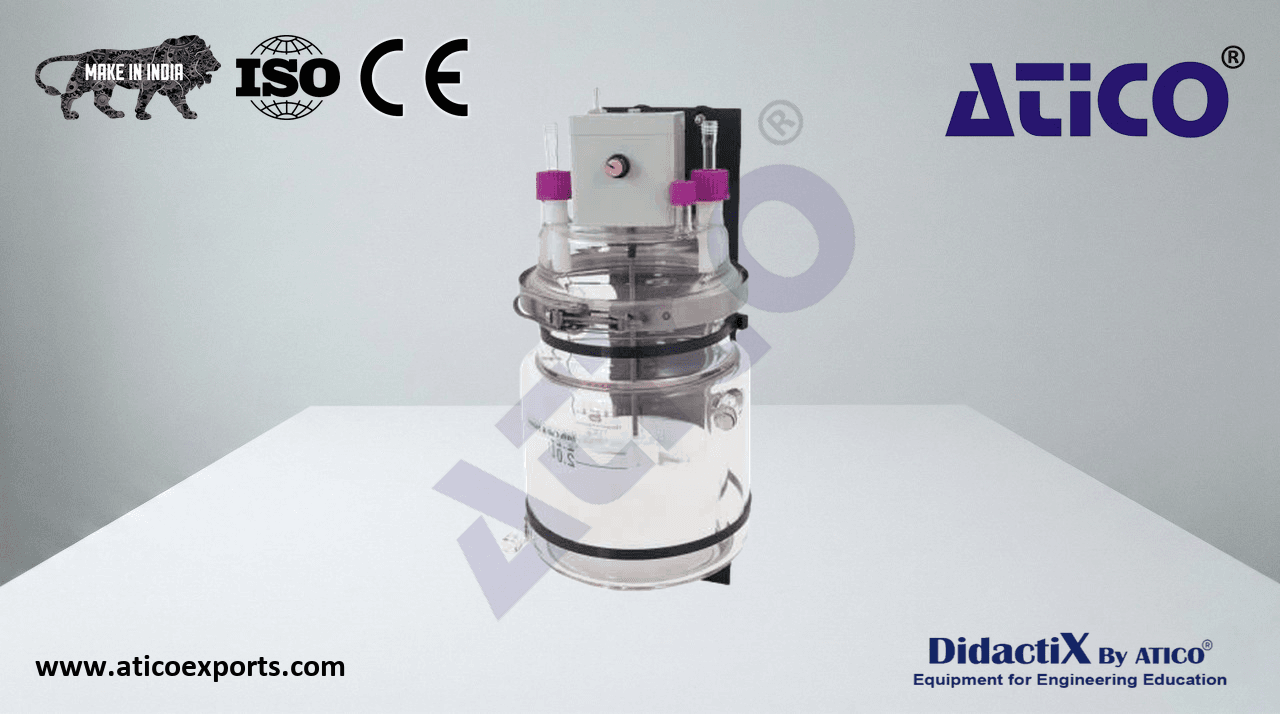

JACKETED VESSEL with COIL AND STIRRER

This unit allows batch and flow processes to be examined with and without the use of a stirrer. Both jacket and coil heating methods may also be investigated. The unit is to be used with the Heat Exchanger Service Unit. Learn about JACKETED VESSEL with COIL AND STIRRER manufacturers for optimal educational outcomes.. The vessel consists of a glass cylinder with annular jacket. Threaded hose connectors allow the jacket to be filled with hot fluid for indirect heating of the vessel contents. Learn about JACKETED VESSEL with COIL AND STIRRER equipment for optimal educational outcomes.. Alternatively, a glass coil submerged beneath the contents may be used to indirectly heat them by passing hot fluid through the coil. An adjustable overflow tube allows the level of the vessel contents to be controlled. Learn about JACKETED VESSEL with COIL AND STIRRER exporters for optimal educational outcomes.. The vessel contents may be operated in Fixed Batch mode or Flow Process mode. A height-adjustable thermocouple allows temperature measurement at any depth in the fluid batch. Learn about JACKETED VESSEL with COIL AND STIRRER suppliers for optimal educational outcomes.. Flexible hoses allow the hot and cold streams from the base unit to be coupled to the jacket, the coil and the vessel.

• Vessel wall inside diameter: Ø152.4mm
• Vessel wall outside diameter: Ø154.2mm
• Coil tube outside diameter: Ø6.3mm
• Coil tube bore diameter: Ø4.9mm
• Effective length of coil tube: 1150mm
