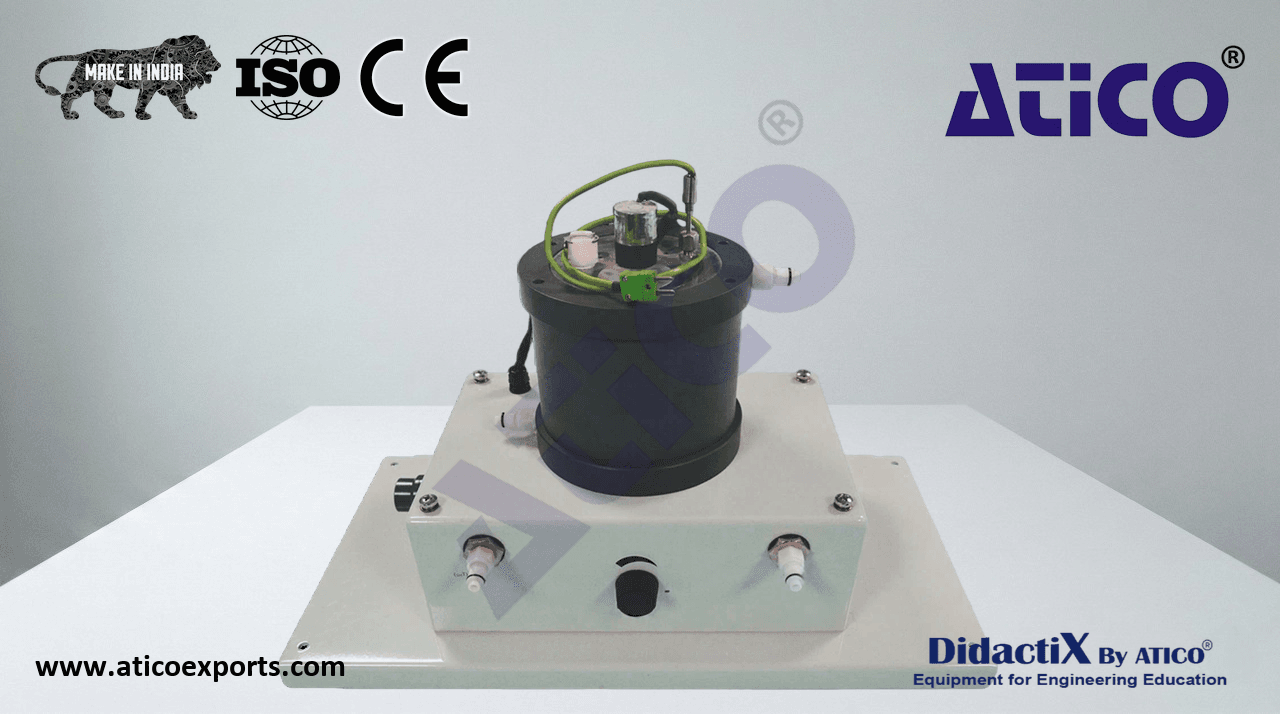

JACKETED VESSEL WITH COIL AND STIRRER Deluxe

Shows how a 'jacketed vessel' heat exchanger works and how stirring affects heat transfer.

This heat exchanger mimics those used in the process industry. It can show heat transfer by using the outer skin (or 'jacket') of the vessel, or by a coil inside the vessel. You can set a continuous feed to the vessel for heating or set a fixed batch for heating. Learn about JACKETED VESSEL WITH COIL AND STIRRER for educational labs for optimal educational outcomes.. The unit has an extra thermocouple to measure the batch temperature. It also has a motorised stirrer to show how stirring affects heat transfer. Learn about JACKETED VESSEL WITH COIL AND STIRRER equipment for optimal educational outcomes.. The Heat Exchanger Service Module provides hot and cold water to the heat exchanger and all the instruments needed to measure its performance. All fluid connections between the service module and the heat exchanger are self-sealing quick connectors – for safety and simplicity. Learn about JACKETED VESSEL WITH COIL AND STIRRER manufacturers for optimal educational outcomes.. The hot and cold fluid streams have different connectors to reduce errors. The heat exchanger is on a bedplate that has a clear schematic diagram showing the connections. Learn about JACKETED VESSEL WITH COIL AND STIRRER thermodynamics India for optimal educational outcomes..
