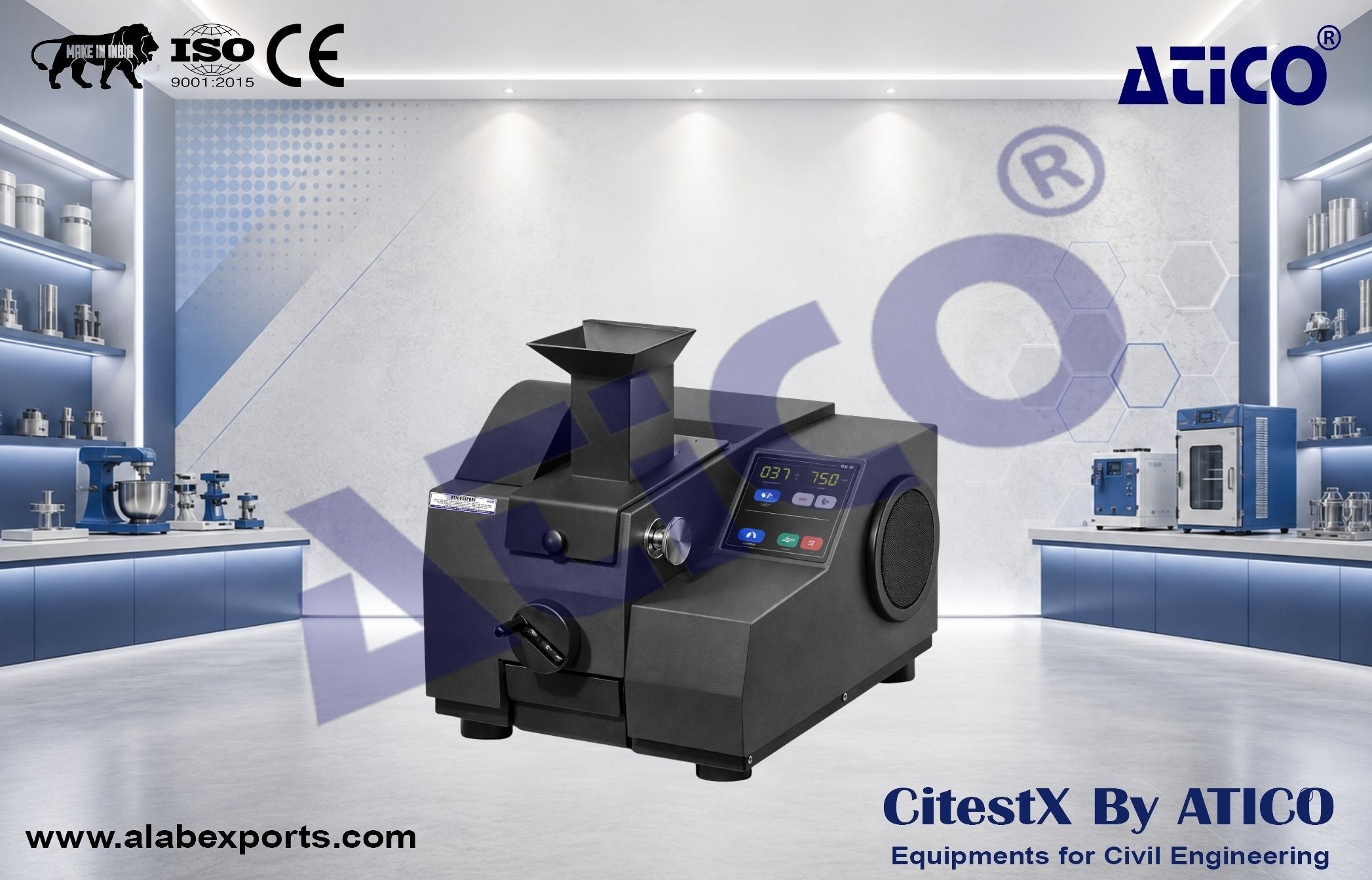

Jaw Crusher, Output : 3 Ltrs. / Batch

The jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.

Robust design, simple handling and cleaning are the key features of the jaw crusher models. Small sample quantities are processed batchwise; for larger amounts the crushers can be operated continuously.

Jaw Crusher – Output: 3 Ltrs. / Batch :

The JAW CRUSHER, OUTPUT: 3 LTRS. / BATCH is designed for efficient and convenient size reduction.

• Variable speed: 550 – 950 min–°
• Reversible rotation direction to clear blockages
• Restart function by simple push of a button
• Permanently lubricated bearings
• Virtually maintenance-free solid design

Zero Point Adjustment :

An advantage of the JAW CRUSHER, OUTPUT: 3 LTRS. / BATCH is the zero point adjustment.
Over time, the breaking jaws show signs of wear, affecting reproducibility. This can be compensated by adjusting the zero point. A display indicator shows when jaws need to be replaced to prevent damage.
Easy Operation & Cleaning

Working with the JAW CRUSHER, OUTPUT : 3 LTRS. / BATCH is safe and simple.

• Large structured operating panel
• Digital display of gap width and speed
• Large hopper with splash-back protection
• Fold-back hopper and crusher arm removable without tools
• Easy exchange of breaking jaws for different applications

Functional Principle :

• The JAW CRUSHER, OUTPUT: 3 LTRS. / BATCH is a robust forced-feed crusher.
• The feed material passes through the no-rebound hopper and enters the crushing chamber. Size reduction occurs in the wedge-shaped area between the fixed crushing arm and the arm moved by an eccentric drive shaft.
• The elliptical motion crushes the sample, which falls under gravity. Once the particle size is smaller than the discharge gap width, it falls into a removable collector.
• Continuous gap width adjustment with digital display ensures optimal size reduction according to the set value.

Applications :

• coarse and pre-crushing

Field of application :

• agriculture, biology, construction materials, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals

Feed material :

• medium-hard, hard, brittle, tough

Size reduction principle :

• pressure

Material feed size :

• < 40 mm

Final fineness :

• < 0.5 mm

Throughput :

• 3 l/batch

Material of grinding tools :

• manganese steel, stainless steel, tungsten carbide, zirconium oxide, steel 1.1750 (for heavy-metal free grinding)

Jaw width :

• 45 x 59 mm

Gap width setting :

• 0 - 11 mm in increments 0.1 mm

Gap width display :

• digital

Zero point adjustment :

• yes

Reverse rotating direction :

• yes

Hinged hopper :

• yes

Dust extraction unit :

• already dust-tight

Central lubrication :

• lifetime lubrication by manufacturer

Process line version :

• process line use is possible by removing drawer

Collector capacity :

• 3 l

Drive :

• 3-phase motor with frequency converter

Drive power :

• 1.1 kW

Electrical supply data :

• different voltages

Power connection :

• 1-phase

Protection code :

• IP 20 / IP 00 at ventilation slots

W x H x D closed :

• 420 x 460 x 560 mm

Net weight :

• ~ 79 kg

Standards :

• CE

Accessories :

• Breaking jaws and wearing plates are available in five materials:

• Manganese steel

• Stainless steel

• Tungsten carbide

• Zirconium oxide

• Steel for heavy-metal free grinding

• Powerful & compact
• High crushing efficiency (feed sizes up to 40 mm can be crushed to 0.5 mm)
• Removable jaw for easy cleaning
• Adjustable speed allows adaptation to sample characteristics
• Wear compensation with zero-point adjustment
• Convenient operating keypad with digital display
• Memory for gap width setting
