JET TRAJECTORY AND ORIFICE FLOW

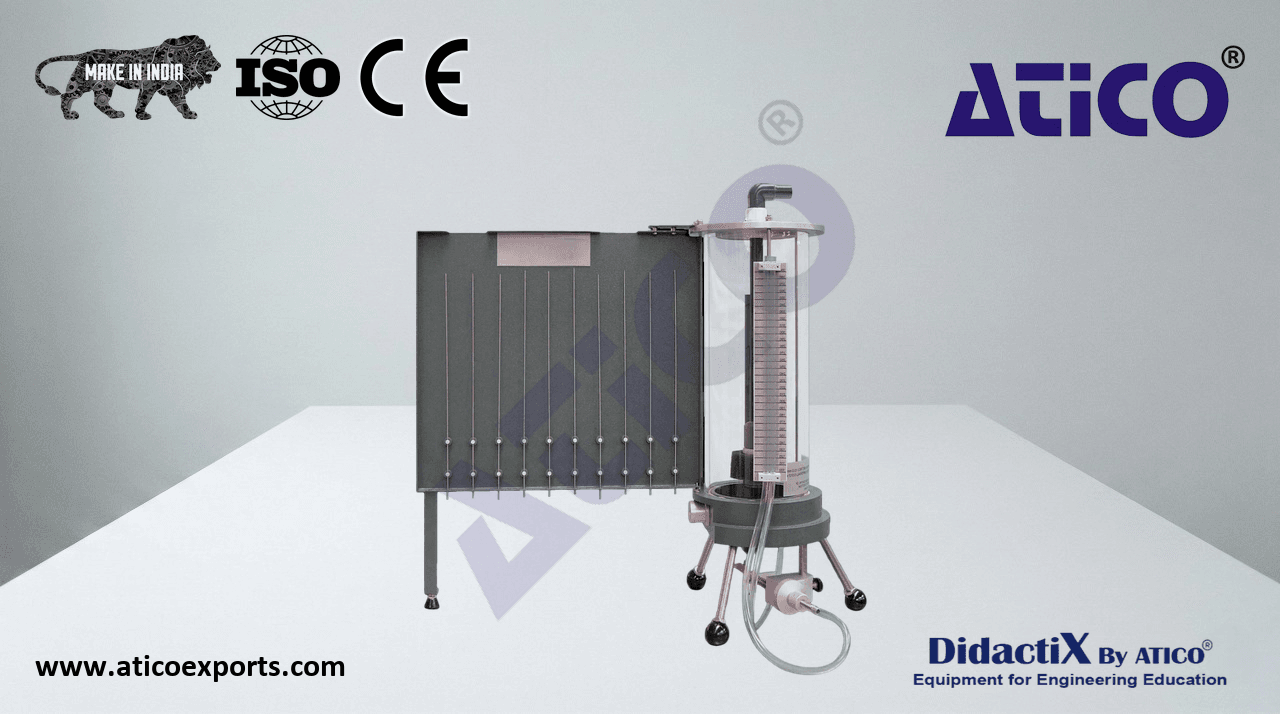

A constant head device, backboard, set of nozzles and Pitot tube. This apparatus demonstrates vertical flow and horizontal jet trajectories through different orifices (nozzles) and allows students to study the trajectory profiles of water jets from the nozzles when mounted horizontally.

The Jet Trajectory and Flow Through an Orifice apparatus allows students to measure:

They make these measurements as water discharges from four vertically mounted, interchangeable nozzles with different throat (orifice) designs.
