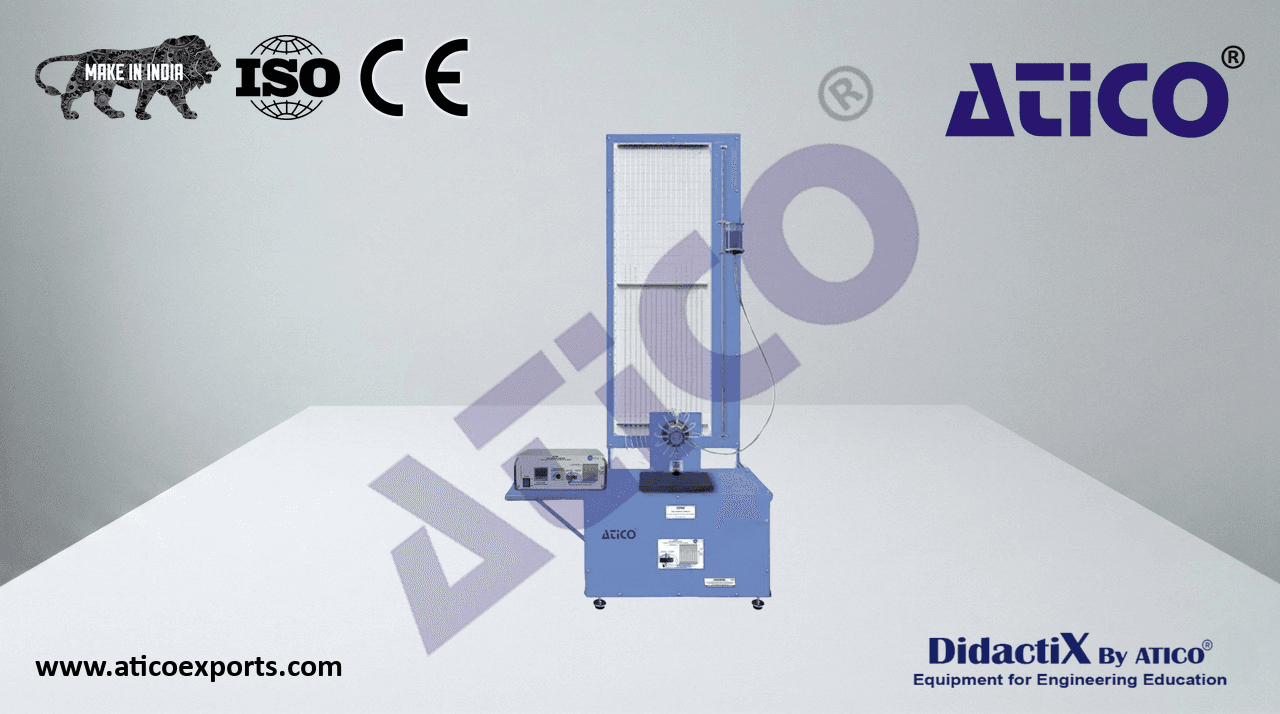

ATENG 12131 — Journal Bearing Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
- Sliding bearing:
The sliding bearing consists of a journal bearing driven by an electrical motor and a freely moving bearing housing. It includes 16
pressure tappings to measure the radial and the axial distribution of pressure of the oil in the sliding bearing.
- Nominal bearing diameter: 52 mm approx.
- Bearing gap: 4 mm approx.
- Bearing width: 75 mm approx.
- Bearing load, range: 6.5 – 16.5 N approx.
- Motor:
- Power output: 0.37 kW approx.
- Max speed: 3000 rpm approx.
A multi-manometer to display the radial and axial pressure distribution of the oil film in the sliding bearing. It includes 16 tube manometers
- of 1750 mm length.
- A methacrylate tank for oil, volume: 3.5 l approx.
- Set of weights: up to 10 N.
- Electronic console, including:
Metallic box.
Motor connector.
Motor speed controller.
Digital display for the motor speed.
Cables and accessories, for normal operation.
