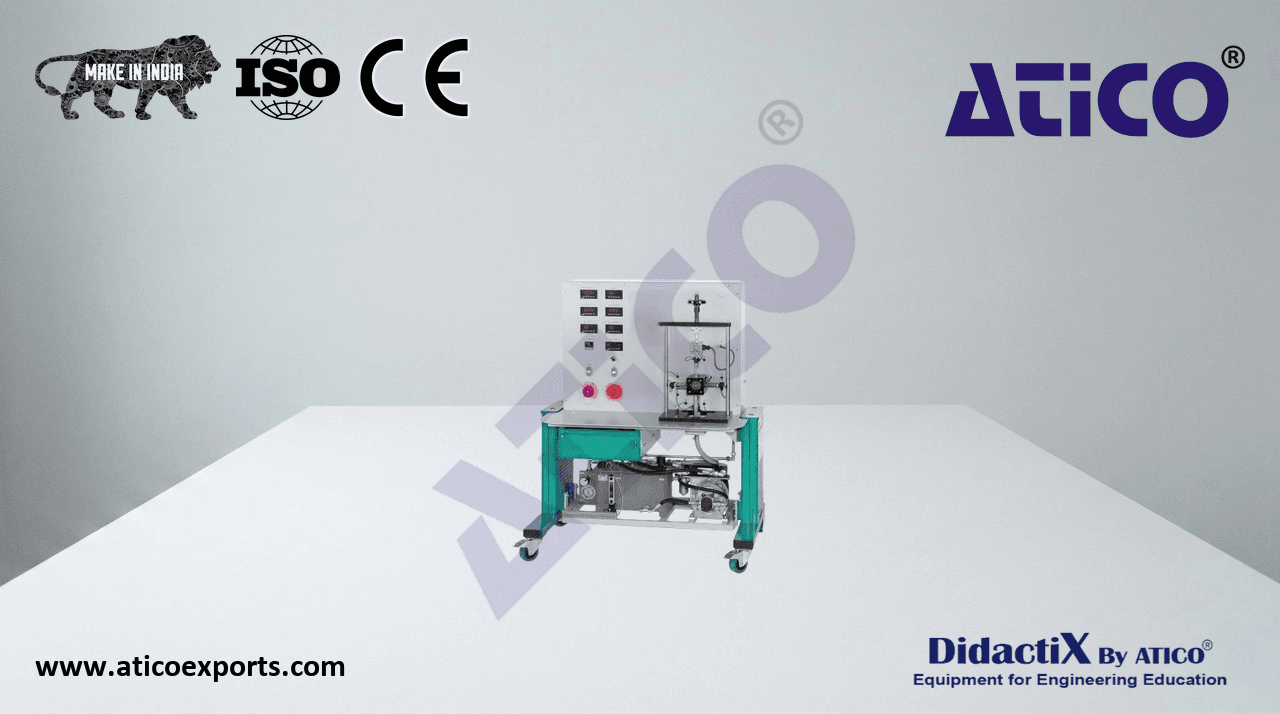

Journal bearing with hydrodynamic lubrication

In hydrodynamic bearings, the shaft and the bearing shell are separated from each other during operation by a supporting lubricating film. The pressure in the lubricating film in hydrodynamic journal bearings is generated by the relative motion between bearing shell and shaft. The position of the shaft in relation to the speed and the load is important for an analysis of the tribological process in the bearing shell of a journal bearing. Learn about Journal bearing with hydrodynamic lubrication for educational labs for optimal educational outcomes..

• friction states in hydrodynamically lubricated journal bearing
• 5 shafts with different diameters for experiments with different bearing clearances
• shaft driven by three-phase motor with frequency converter for continuous adjustment of the speed
• controller to adjust the oil temperature
• radial load of the bearing by means of compression spring and threaded spindle with handwheel and measured via force sensor
• determine the frictional moment by means of lever arm with force sensor
• 8 inductive displacement sensors for measuring the displacement of the shaft
• digital displays for radial load, frictional moment, position of the shaft (X and Y direction), oil pressure, peak oil pressure, oil temperature and speed
• software for data acquisition via USB under Windows 11
