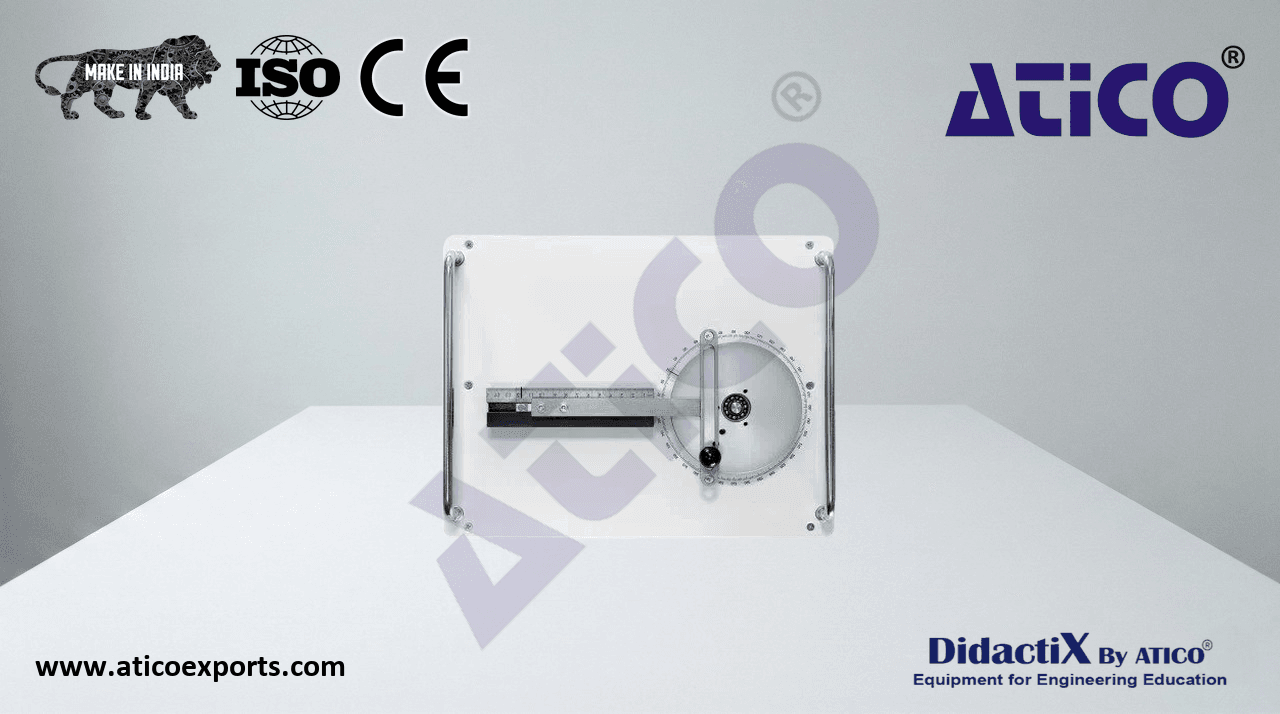

Kinematic model: crank slider

The crank slider, unlike a normal crank mechanism, generates a purely harmonic stroke movement.

• investigation of a crank slider
• generation and investigation of purely harmonic stroke movements
• adjustment of the crank radius at three positions of the connecting rod on the crank disk
• adjustment of the angle by turning the crank disk
• measure the stroke on the cylinder
