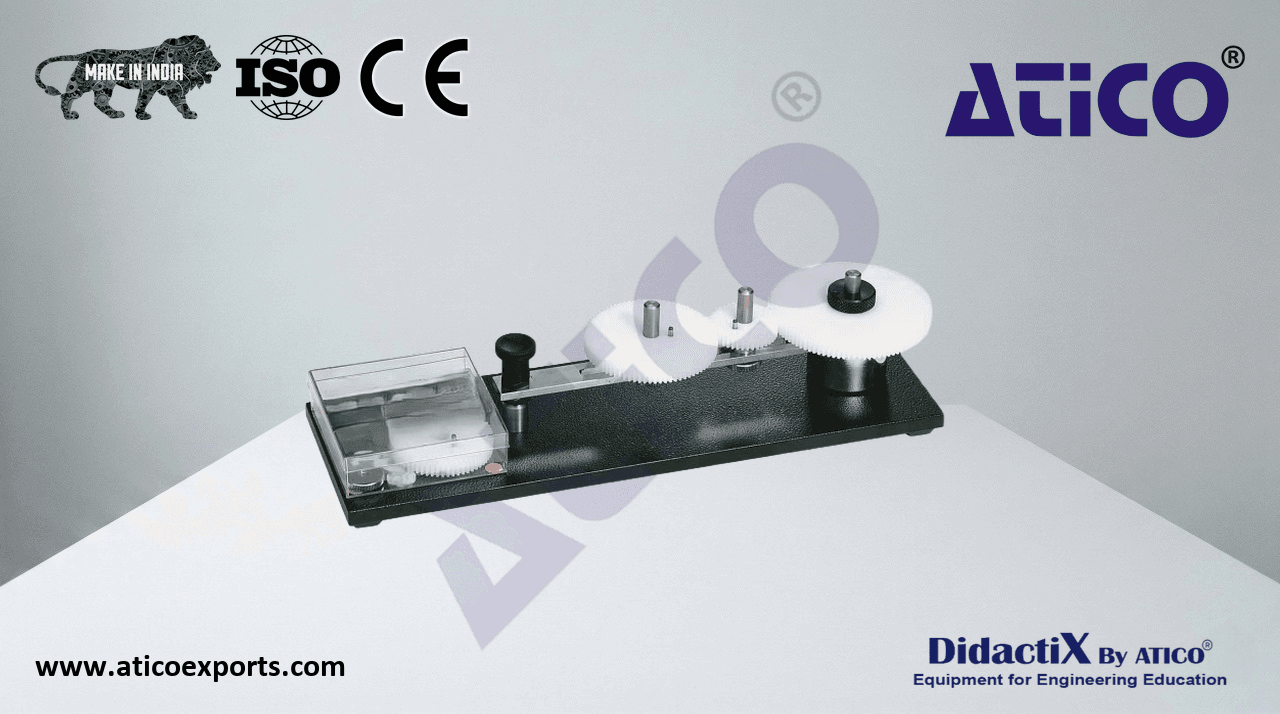

Kinematic model: gear drive

The gear is the element of a machine that transmits and transforms motion. A gear comprises at least one drive, an output and a frame.

• investigation of single-stage or multistage spur gears
• investigation of planetary gears
• driven by hand
• determine the transmission ratio by counting the revolutions of the driven gears
• base plate with storage for components
