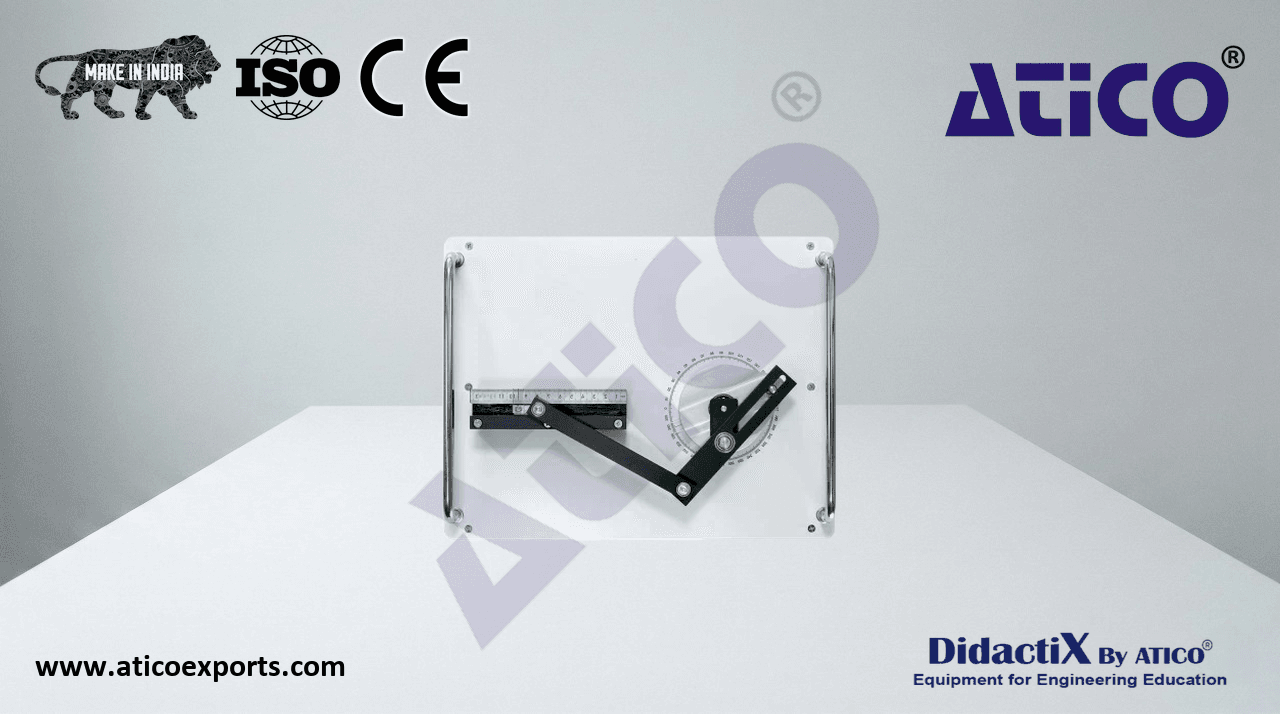

Kinematic model: Whitworth quick return mechanism

The Whitworth mechanism is also known as the quick-return mechanism. It represents a revolving crank slider and produces non-uniform stroke movement with slow forward movement and fast backward movement. This mechanism is used in tools, packaging and transport machinery. Learn about Kinematic model: Whitworth quick return mechanism manufacturers for optimal educational outcomes..

• investigation of a revolving crank slider
• generation and investigation of non-uniform stroke movements
• adjustment of the crank radius at three positions of the connecting rod on the crank disk
• adjustment of the angle by turning the crank disk
• measuring the stroke on the cylinder
