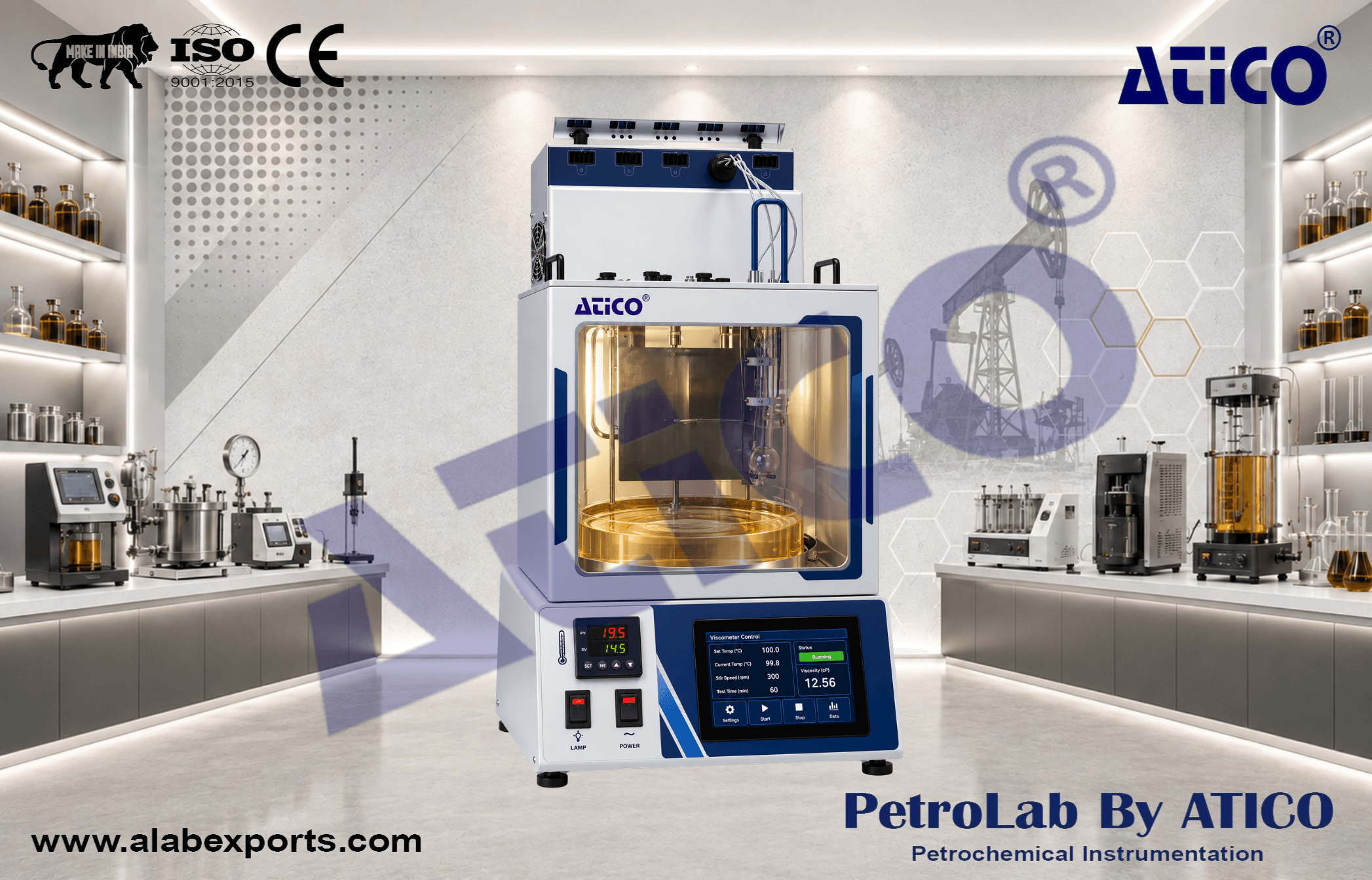

Kinematic Viscosity Bath with Optical Flow Detection System for Fuel Testing Instrument

The Automatic Kinematic Viscosity Bath is designed to measure the kinematic viscosity of petroleum and petrochemical products using calibrated capillary viscometers under precisely controlled temperature conditions. The system supports flow measurement under gravity or vacuum in accordance with applicable test methods.

The apparatus features an optical sensor detection system that measures sample flow and automatically calculates kinematic viscosity from the measured efflux time. It accommodates Ubbelohde, Cannon-Fenske, and Cannon-Fenske Opaque Reverse Flow viscometers. Up to five optical detection assemblies can be connected, while two additional positions are available for manual viscosity measurements.

The microprocessor-based PID temperature controller provides precise temperature regulation, supported by a motorized stirrer for uniform bath circulation without turbulence. Integrated timing, dual digital displays, and built-in safety circuits support reliable operation. The system can operate independently without an external computer or connect to a PC for data acquisition, analysis, storage, and export.

Manufactured by Atico Export for accurate and efficient viscosity testing in petroleum, petrochemical, and quality control laboratories.

• Kinematic viscosity measurement of petroleum products
• Viscosity testing of petrochemical products
• Measurement of sample efflux time using capillary viscometers
• Quality control and characterization of lubricants and fuels
• Automated viscosity calculation and data analysis
• Laboratory testing in accordance with ASTM D445 and IP 71

Temperature Control Range :

• Ambient to 150°C (302°F)
• Sub-ambient temperatures down to 10°C with external cooling

Temperature Display Resolution :

• 0.1°C / 0.1°F

Temperature Calibration Resolution :

• 0.01°C / 0.01°F

Temperature Control Accuracy and Uniformity :

• Exceeds applicable ASTM requirements throughout the operating range

Timing Function :

• Integrated digital timing
• Display resolution: 0.1 seconds
• Timing accuracy: ±0.01%

Communication Interfaces :

• RS232
• RS485

Viscometer Ports :

• Seven round ports, 2 inches (51 mm) in diameter

Bath Medium :

• Water or suitable heat-transfer fluid

Bath Capacity :

• 12-inch bath: 5.8 US gallons (22 L)
• 18-inch bath: 8.9 US gallons (33.7 L)

Viscometer Compatibility :

• Ubbelohde
• Cannon-Fenske
• Cannon-Fenske Opaque Reverse Flow

Dimensions (L × W × H) :

• 12-inch bath: 20.25 × 15.25 × 24.5 inches (51 × 39 × 62 cm)
• 18-inch bath: 20.25 × 15.25 × 30.5 inches (51 × 39 × 77 cm)

Net Weight :

• 12-inch bath: 85 lb (38.6 kg)
• 18-inch bath: 90 lb (41 kg)

Standard Accessories :

• Seven Delrin port covers

• Optical sensor-based flow detection
• Automatic calculation and display of kinematic viscosity
• Supports viscosity results in viscosity units or seconds
• Accommodates Ubbelohde, Cannon-Fenske, and Cannon-Fenske Opaque Reverse Flow viscometers
• Supports up to five optical detection assemblies
• Two additional positions for manual viscosity measurements
• Standalone operation without an external PC
• Microprocessor-based PID temperature control
• Dual digital displays for setpoint and actual bath temperature
• Selectable temperature display in °C or °F
• Integrated digital timing for sample efflux measurement
• Motorized stirrer for uniform, turbulence-free circulation
• Built-in cooling coil for ambient and below-ambient temperature control
• Two-point calibration offset capability
• Redundant overtemperature and low-liquid-level protection
• PC software for data acquisition, calculation, and storage
• Database for averages, standard deviations, and ASTM repeatability
• Calibration tracking for instruments and viscometer tubes
• CSV export of test data, graphs, and test parameters
• RS232 and RS485 communication interfaces
