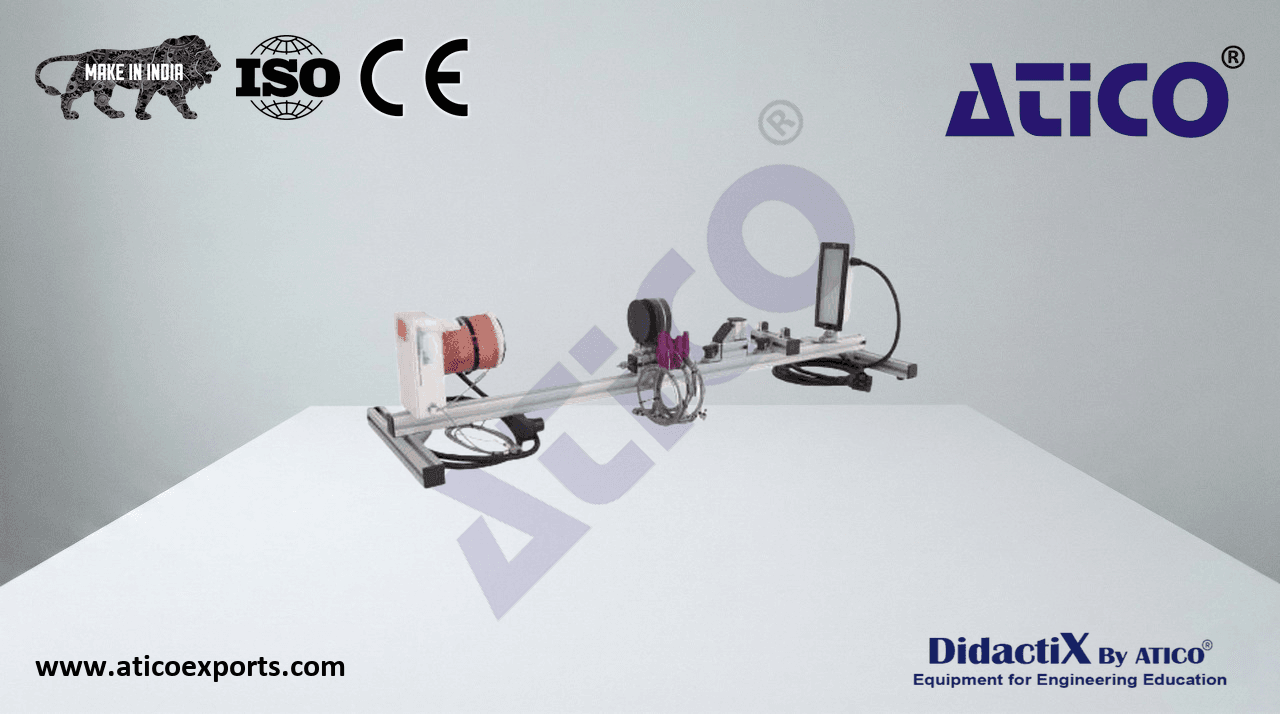

LAWS of RADIANT HEAT TRANSFER/HEAT EXCHANGER MODULE

This module allows the basic laws of heat transfer by radiation (both heat and light) to be investigated. Two appropriate detectors, light filters, target plates of different emissivity and aperture plates each mount on suitable carriages on a parallel graduated track, allowing simple and rapid experimental procedures. The electrically heated matt black radiant heat source is fitted with an integral thermocouple to record its surface temperature. Learn about LAWS of RADIANT HEAT TRANSFER/HEAT EXCHANGER MODULE equipment for optimal educational outcomes.. A radiometer detects the heat flux directly in W/m° from either the source, a combination of four plates of different emissivity (two matt black, one grey and one polished) or between a slot formed by two moveable cork-faced plates. Each plate incorporates a surface thermocouple for temperature measurement. Learn about LAWS of RADIANT HEAT TRANSFER/HEAT EXCHANGER MODULE specifications for optimal educational outcomes.. The diffuse light source comprises a low voltage filament lamp within a rotatable enclosure (180°) that can be located on the parallel track in place of the heat source. A light meter recording directly in lux may be located in place of the radiometer. Learn about LAWS of RADIANT HEAT TRANSFER/HEAT EXCHANGER MODULE exporters for optimal educational outcomes.. Supplied filter plates of varying opacity and thickness can also be mounted on the track to demonstrate the laws of light absorption. Both the heat source and light source intensity are controlled through the variable AC supply from the Heat Transfer Service Unit. Learn about LAWS of RADIANT HEAT TRANSFER/HEAT EXCHANGER MODULE suppliers for optimal educational outcomes..

• Heat source: 200W ceramic heater; Ø100mm black plate (near 1.0 emissivity); up to 300°C at maximum voltage
• Light source: 40W bulb, glass diffuser; 180° rotation
