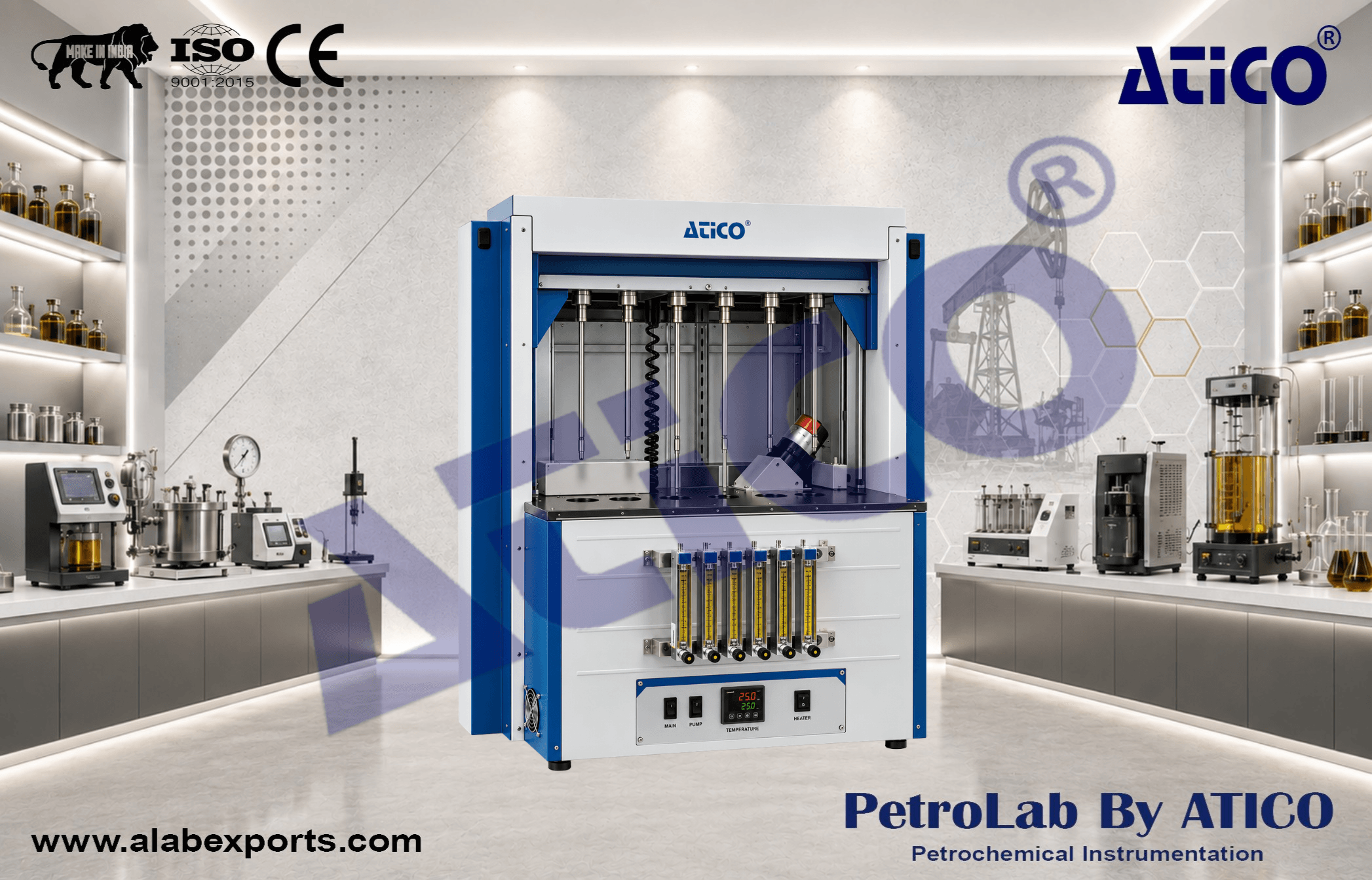

Lead Corrosion Apparatus for Oil Fuel and Petroleum Testing Instruments

he Lead Corrosion Tester measures the corrosiveness of lubricating oils to lead in the presence of a copper catalyst. Lead and copper test panels are rotated in the test lubricant under specified conditions, and the degree of corrosion is determined by measuring the change in weight of the lead panel. The apparatus maintains lubricant samples at 163°C (325°F), with test panels rotating at 600 rpm and air supplied at a controlled flow rate. The system features ball-bearing spindles, a motor-driven counterbalanced support bar, and a safety microswitch that stops the drive motor when the support bar is raised. The fully insulated bath has double-wall stainless steel construction and a built-in rack for suspending test cells vertically at the correct depth. Microprocessor-based PID temperature control provides rapid stabilization, while independent over-temperature protection enhances operational safety. Dual LED displays show actual and setpoint temperatures in °C or °F. A circulation stirrer maintains temperature uniformity, and individual airflow to each test cell is regulated by flowmeters and valves mounted on a common manifold. Manufactured by Atico Export with a focus on precision, durability, and reliable performance for lubricating oil corrosion testing applications.

Testing Capacity:

• 6 lubricant samples

Test Conditions:

• Panel rotation speed: 600 rpm
• Test temperature: 163°C (325°F)
• Airflow rate: 0.94 L/min (2.0 cu. ft./hr.) per test cell
• Test panels: Copper and lead

Temperature Control:

• Maximum temperature: 199°C (390°F)
• Temperature control stability: ±0.05°C (±0.1°F)
• Microprocessor-based PID temperature control
• Dual LED displays for actual and setpoint temperatures in °C/°F
• Built-in backup thermostat for over-temperature protection
• Over-temperature control circuit with programmable cutoff

Drive System and Safety:

• 1/15 hp drive motor
• Ball-bearing spindles for test panel shafts
• Counterbalanced support bar for positioning the drive shaft
• Safety microswitch automatically stops the motor when the support bar is raised

Bath Construction and Circulation:

• Fully insulated bath with double-wall stainless steel construction
• Built-in support rack for vertically suspending test cells at the correct depth
• 1/20 hp stirrer for uniform bath temperature
• Individual airflow control for each test cell
• Flowmeters and valves mounted on a common manifold

Optional Features:

• Ramp-to-set temperature control
• Additional enhanced control features

Standard Accessories:

• Copper test panels: 6
• Lead test panels: 6
• Mounting hardware for panels

Dimensions (L × W × H):

• 39 × 25 × 47 inches (99 × 64 × 119 cm)

Net Weight:

• 290 lbs (131.5 kg)
