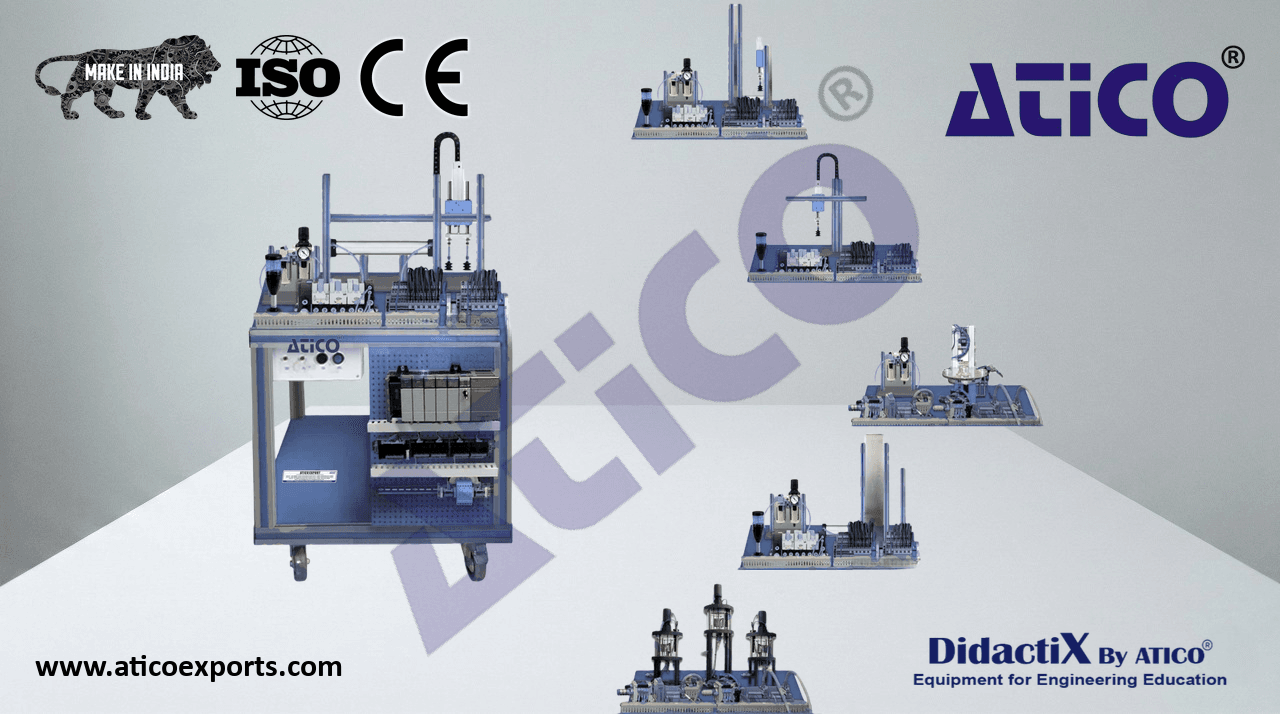

Linear Transport Workstation

The is a linear transporting system, which moves the pallets, that carries the pieces, along the system.

ATENG 12572 — Linear Transport Workstation

Mounted with aluminum profiles.

Four pallets to carry the pieces.

• Stops areas for the pallets:
  Different stops areas with presence sensors and retaining systems for the pallets.
• Electrical panel:
  Differential magneto-thermal switch.
• Power supply of 24 VDC.
  Electrical motor.
  Motor controller.
  Terminal block to connect the individually identified inputs and outputs of the unit.
• Control panel:
  Mushroom head emergency stop push button switch.
  Start and Stop pushbuttons.
  Switch for manual or automatic operation.
  Light indicator.
  Led stack light.
  Terminal block to connect the individually identified inputs and outputs of the unit.
• Pneumatic circuit:
• Air treatment unit:
  Filter-regulator with water trap.
  Manometer with double scale indicator.
  Shut-off valve.
  13 Simple acting pneumatic actuators.
  14 Pneumatic monostable 3/2 solenoid valves.
  Individually identified tubes and push in fittings.
• Sensors:
  24 inductive effect sensors.
  4 reed effect limit switches.
• Fault generation module:
  Box with lock with key.
  Allows generating 20 different faults.
  Each fault is generated through toggle switches.
  2

Specifications

• Recommended accessories: (Not included)
• AE-PLCB. Basic PLC Trainer (optional).
• The AE-PLCB is available with different PLC manufacturer models. All models contain the following modules:
• N-ALI02: is the Main power supply.
• N-CPU: is the PLC CPU that contain the digital In/Out terminals. All CPUs types allow to connect with the PC (for programming and
  monitoring) and the other modules of the trainer through an Ethernet network.
• N-ESA: is the analog In/Out module used to acquire and generate analog signals.
• N-HMIB: is the Human Machine Interface module with a touch screen.
• N-MT: is the test module with switches, push buttons and potentiometers to generate digital and analog signals.
  Software to program the PLC and the HMI device.
• ATENG 12395. Silent Air compressor Unit (optional).
• Low noise level: 40 dB maximum.
• Capacity of the boiler: 9 l.
• Power: 340 W.
• Air intake: 50 l/min.
• Maximum pressure: 8 bar or 0.8 MPa.
  It Includes hoses to easy connect with the units.
  Cables and Accessories, for normal operation.
