Used to evaluate the relationship between the moisture percentage of a soil sample and the number of blows required to close a groove made into the soil, and therefore to determine when clay soil changes from a plastic to a liquid state.
Models Available :
The device is available in two models :

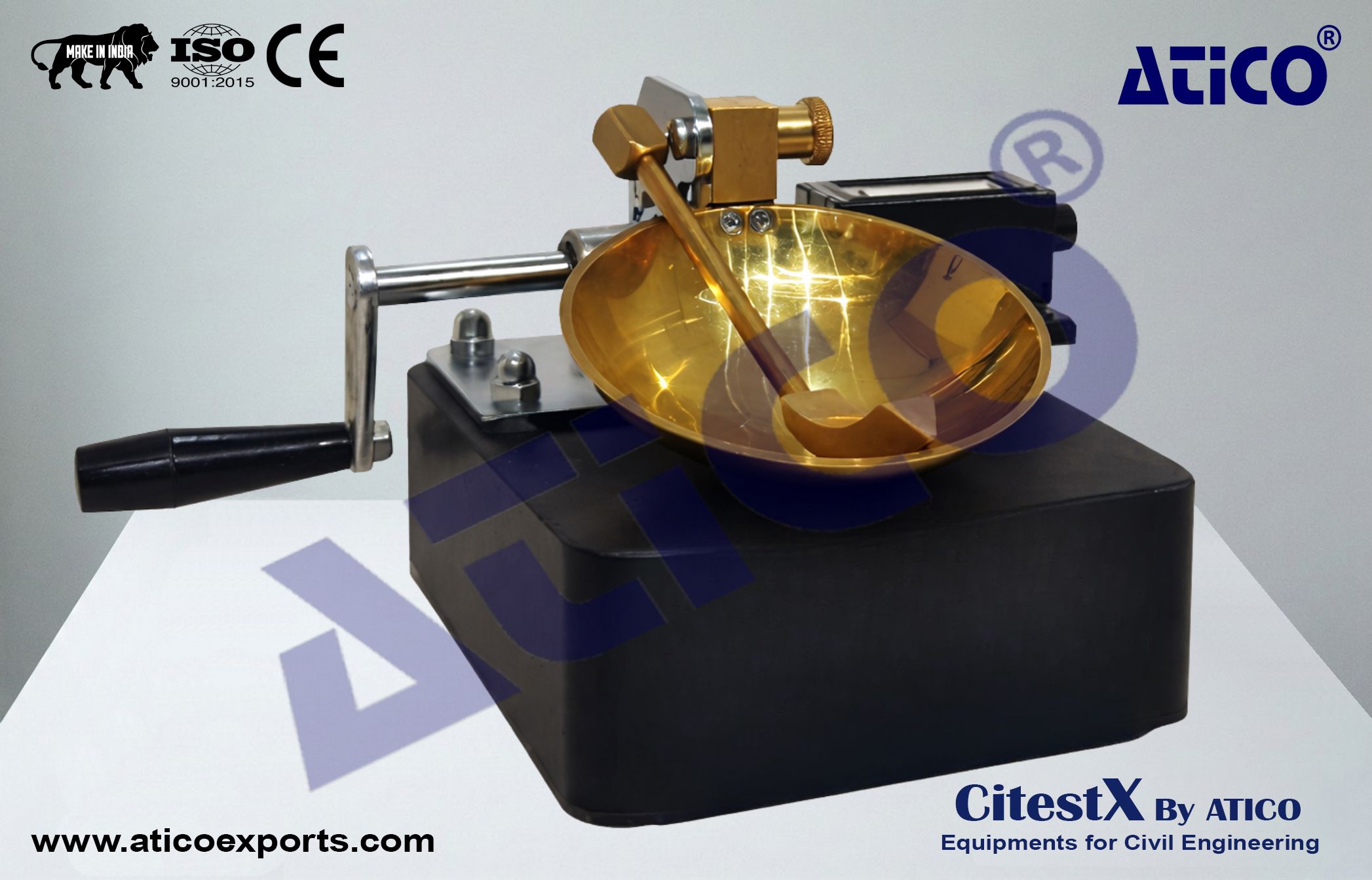

Hand operated
Motor operated at 120 drops/min speed, ensuring better uniformity and accuracy.
Construction :
Comprises a removable brass cup, adjustable crank and cam mechanism, blow counter and base. Supplied with Brass grooving tool.
Dimensions (cm) :
AECE2512/B - 25°25°15
AECE2512/A - 25°25°15
AECE2315/B - 25°25°15
AECE2315/A - 25°25°15
Weight (kg) :
AECE2512/B - 2
AECE2512/A - 2
AECE2315/B - 4
AECE2315/A - 4
Power Supply :
AECE2512/B - -
AECE2512/A - -
AECE2315/B - 220 V, 50–60 Hz, 1 ph
AECE2315/A - 220 V, 50–60 Hz, 1 ph
Optional Accessories :
Resilience Tester is used for measuring the resilience of liquid limit device bases. Resilience Tester consists of a clear acrylic plastic tube, steel ball and a small bar magnet. Resilience Tester should be ordered separately.
