LOAD AND BRAKE MODULE

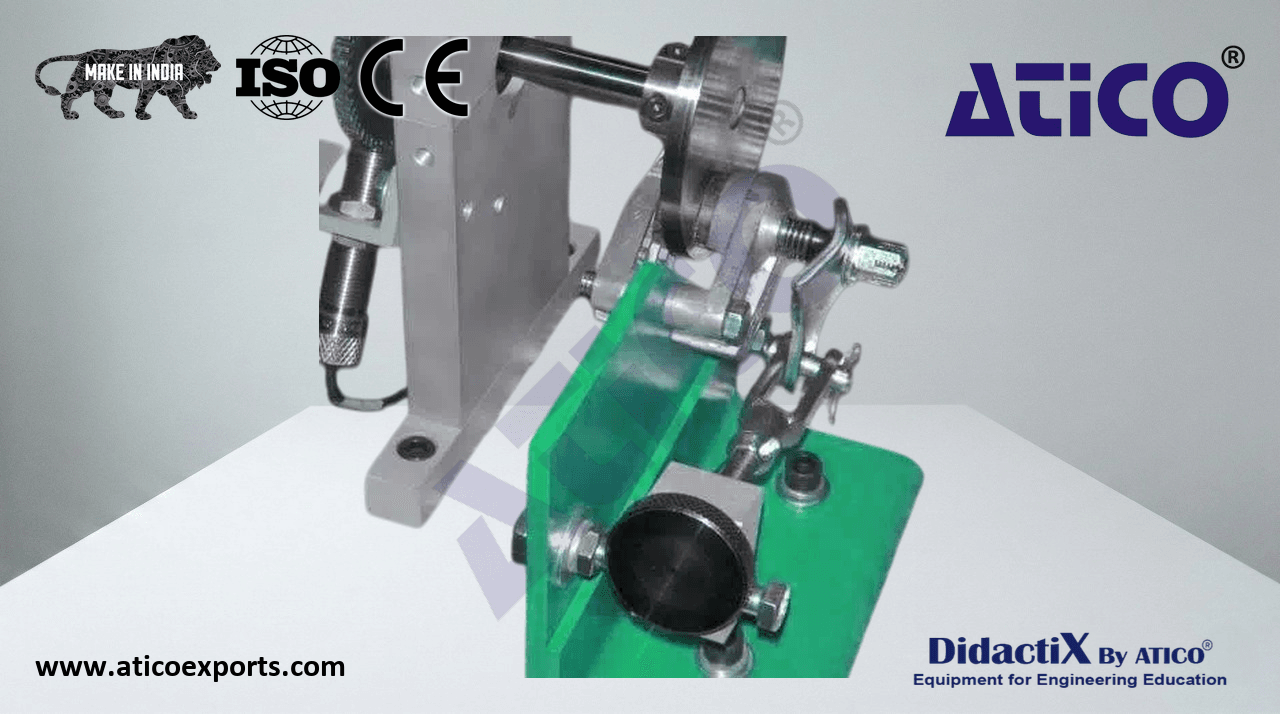

A module that attaches to a machinery diagnostics base unit to simulate a system under load, enabling students to observe vibrational effects at different speeds and braking forces. The module creates vibrations as a function of torque and resistance applied through a calliper disc brake mechanism. A knurled clamping knob applies variable pressure via sprung pins onto the brake pads. Learn about LOAD AND BRAKE MODULE theory-machines India for optimal educational outcomes.. A rotor disc is connected to the main shaft and clamped in position by grub screws.

• Single assembly fixed to base unit via angled bracket and two location bolts
• Calliper brake with two brake pads applying force to either side of rotating wheel
• Variable pressure applied via knurled clamping knob and threaded shaft
• Rotor disc clamped to main shaft via grub screws
