Lorentz Force e/m Apparatus for Advanced Physics Lab

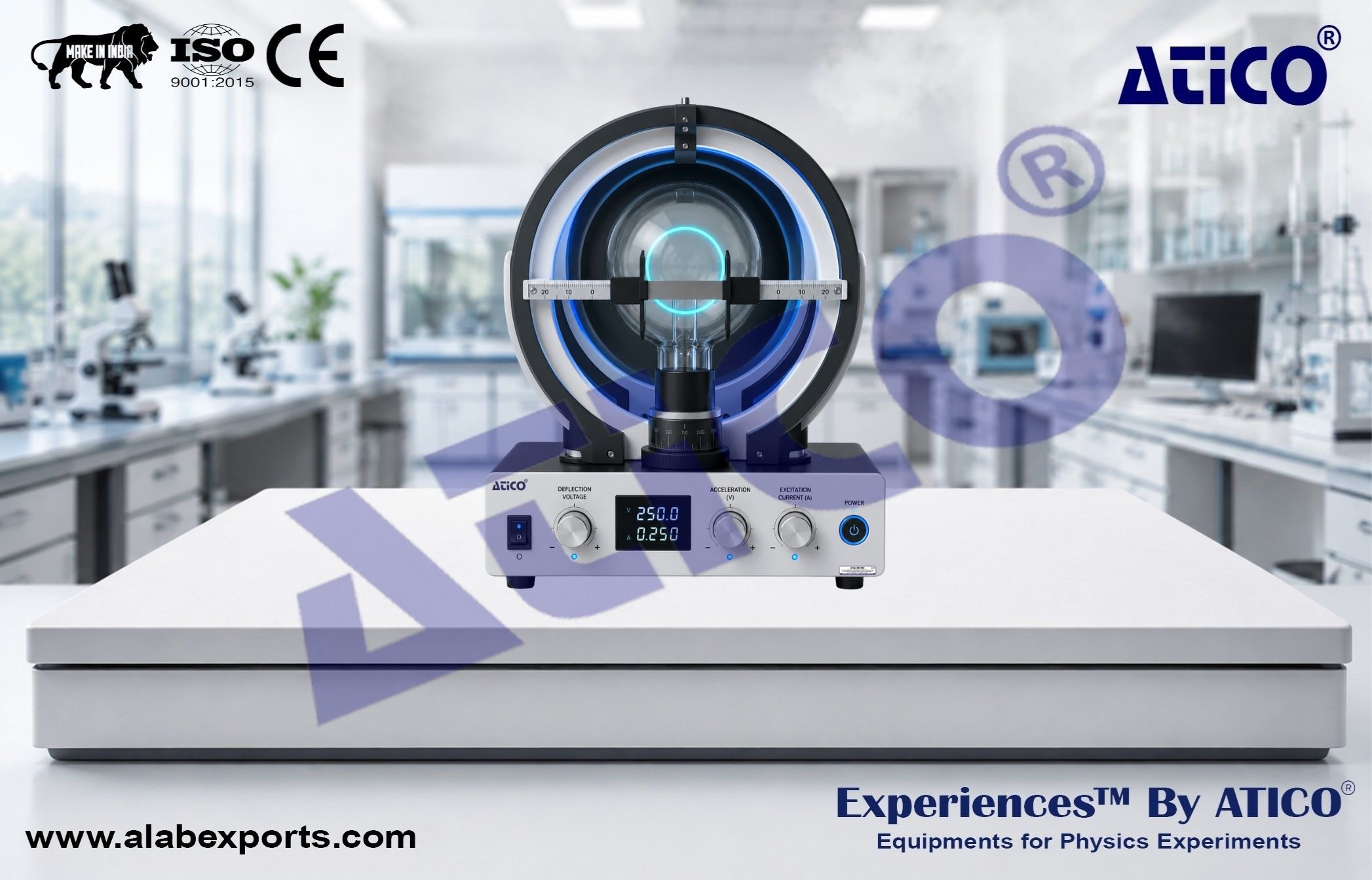

The Lorentz Force e/m Apparatus for Advanced Physics Lab is designed to help students study the fundamental principles of electromagnetism through direct observation and measurement. The apparatus demonstrates the Lorentz force acting on charged particles moving through electric and magnetic fields, providing a clear understanding of particle motion and electromagnetic interactions. During the experiment, an electron beam is generated, accelerated, and exposed to controlled electric and magnetic fields. By observing the resulting beam deflection, students can investigate the effects of the Lorentz force and analyze the motion of charged particles. The apparatus also enables determination of the electron charge-to-mass ratio (e/m), one of the most important physical constants in atomic physics. Its robust construction, user-friendly operation, and reliable performance make it well suited for physics laboratories in colleges, universities, and technical institutions. The apparatus offers valuable hands-on experience in experimental techniques, measurement procedures, and data analysis. Manufactured by Atico Export India.

Experimental Applications:

Study the Lorentz Force:

• Observe how charged particles respond to electric and magnetic fields
• Understand the relationship between force, velocity, and field strength

Investigate Electron Beam Deflection:

• Measure electron beam deflection under varying electric field conditions
• Measure electron beam deflection under varying magnetic field conditions

Determine the Electron Charge-to-Mass Ratio (e/m):

• Calculate the specific charge of the electron using experimental measurements
• Verify theoretical principles through practical experimentation

Explore Electromagnetic Field Interactions:

• Examine the combined effects of electric and magnetic fields on charged particle motion
• Analyze electromagnetic interactions through direct observation

Number of Turns per Coil:

• 150

Diameter of Helmholtz Coils:

• 28 cm

Accelerating Voltage:

• 0 – 250 V
• Continuously Adjustable

Magnetizing Current:

• 0 – 2.0 A
• Continuously Adjustable

Current Flow Direction:

• Clockwise
• Off
• Counterclockwise

Deflecting Voltage:

• 50 – 250 V
• Continuously Adjustable

Voltage Polarity:

• Positive at Upper Plate
• Off
• Positive at Lower Plate

Dual Digital Display Volt-Ammeter:

• DC 0 – 600 V
• 0 – 10.0 A
• Accuracy: ±0.5% ± 2 Digits

Parts List:

Main Unit:

• Quantity: 1

Digital Volt-Ammeter:

• Quantity: 1

Power Cord:

• Quantity: 1

Instruction Manual:

• Quantity: 1

• Complete Experimental Setup
• Compact and Stable Design
• Digital Display for Accurate Readings
• Precise and Cost-Effective Operation
• Ideal for Electromagnetism Laboratory Studies
