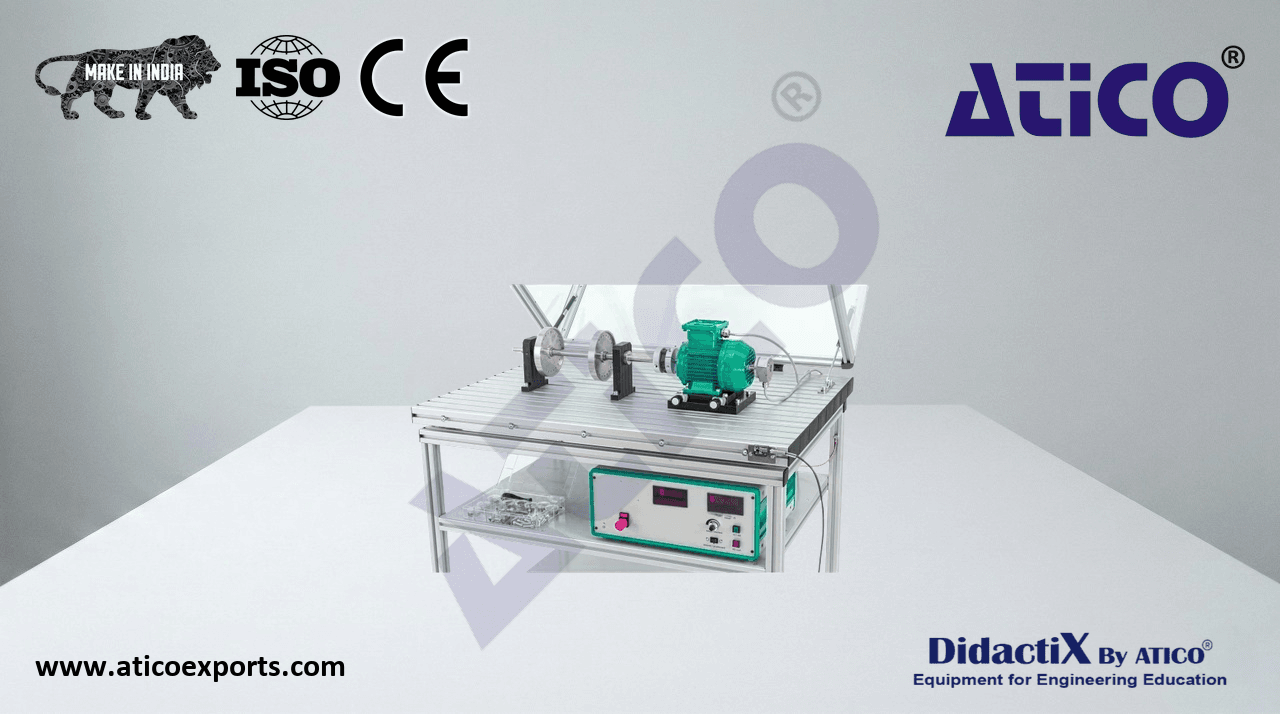

Machinery diagnostic system, base unit

In order to avoid serious damage to machines and to carry out maintenance on time, the condition of the machine must be known. The state of a machine or machine parts can generally be judged well in terms of the type and size of its vibrations. The machinery diagnostic system can be used to simulate certain types of damage and investigate its effects on the vibration spectrum. Learn about Machinery diagnostic system, base unit suppliers for optimal educational outcomes..

• base unit for machinery diagnostic training system
• rigid base plate with workpiece holder slots
• drive motor with variable speed via frequency converter
• digital speed and power display
• 2 shafts: 1x short, 1x long
• 2 unbalanced flywheels with interchangeable balance weights
• bearing blocks, roller bearings, interchangeable
• fixing holes for vibration measuring sensor
• flexible claw coupling and ControlflexR coupling
• motor can be aligned obliquely and transversally
• transparent protective cover with safety features ensure safe operation
• stackable system for components
