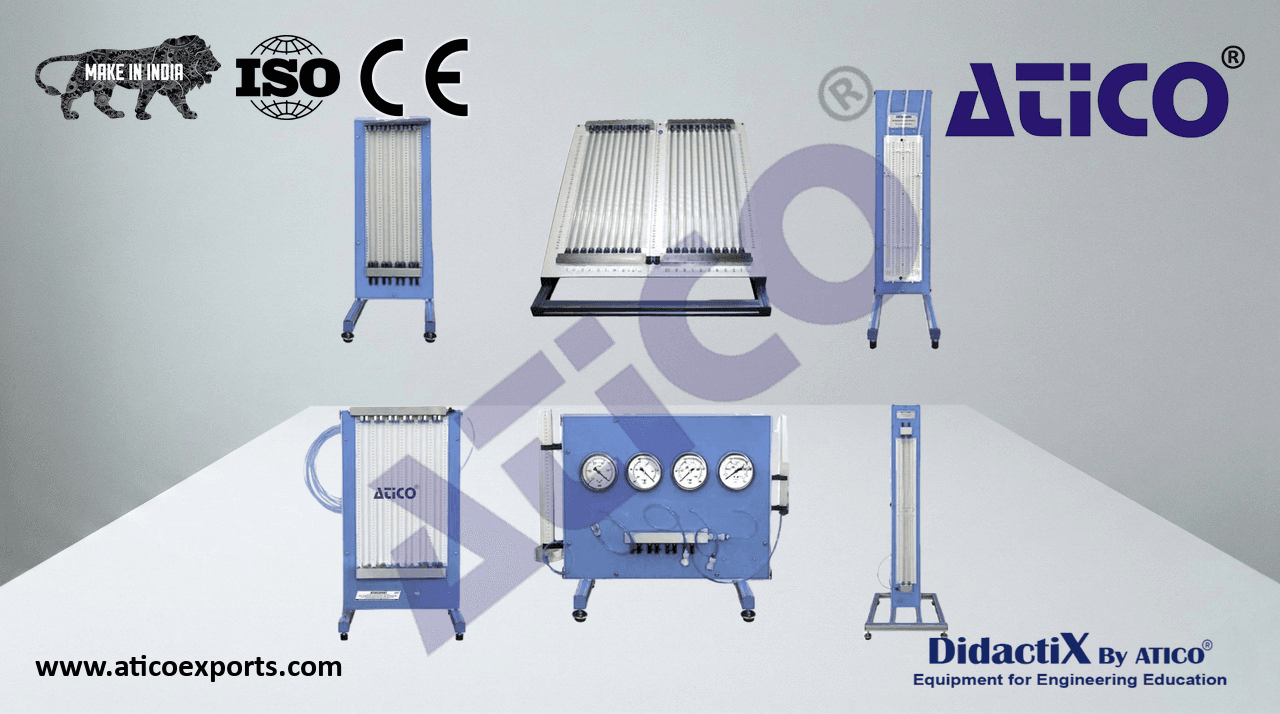

Manometers & Multimanometers (several types):

Thanks to the "Manometer and Multimanometer, collection, a comprehensive and versatile solution is provided with a wide variety of manometers tailored to specific pressure measurement needs.

ATENG 11777 — Manometers & Multimanometers (several types):

Anodized aluminum frame and panels made of painted steel.

Main metallic elements made of stainless steel.

Bench-top unit.

Anodized aluminum frame and panels made of painted steel. Vertical position.

• Main metallic elements made of stainless steel. Eight manometric tubes, length: 500 mm.
• Inclination: 30° approx. Tubes inner diameter: 8 mm, to avoid bubbles.
• Twenty manometric tubes, length: 250 mm. Air pump for pressurization.
• Tubes inner diameter: 8 mm, to avoid bubbles. Eight points for differential pressure measurement, with key.
  Water tank for filling. Common collector.
  Twenty points for differential pressure measurement, with key.
  Non-return valve.
  Common collector.
  Drain valve.
  Drain valve.
• Millimeter precision rules, length: 500 mm.
• Millimeter precision rules, length: 250 mm.
