Measurement of Diffraction Intensity Complete Model Optics Educational Kits

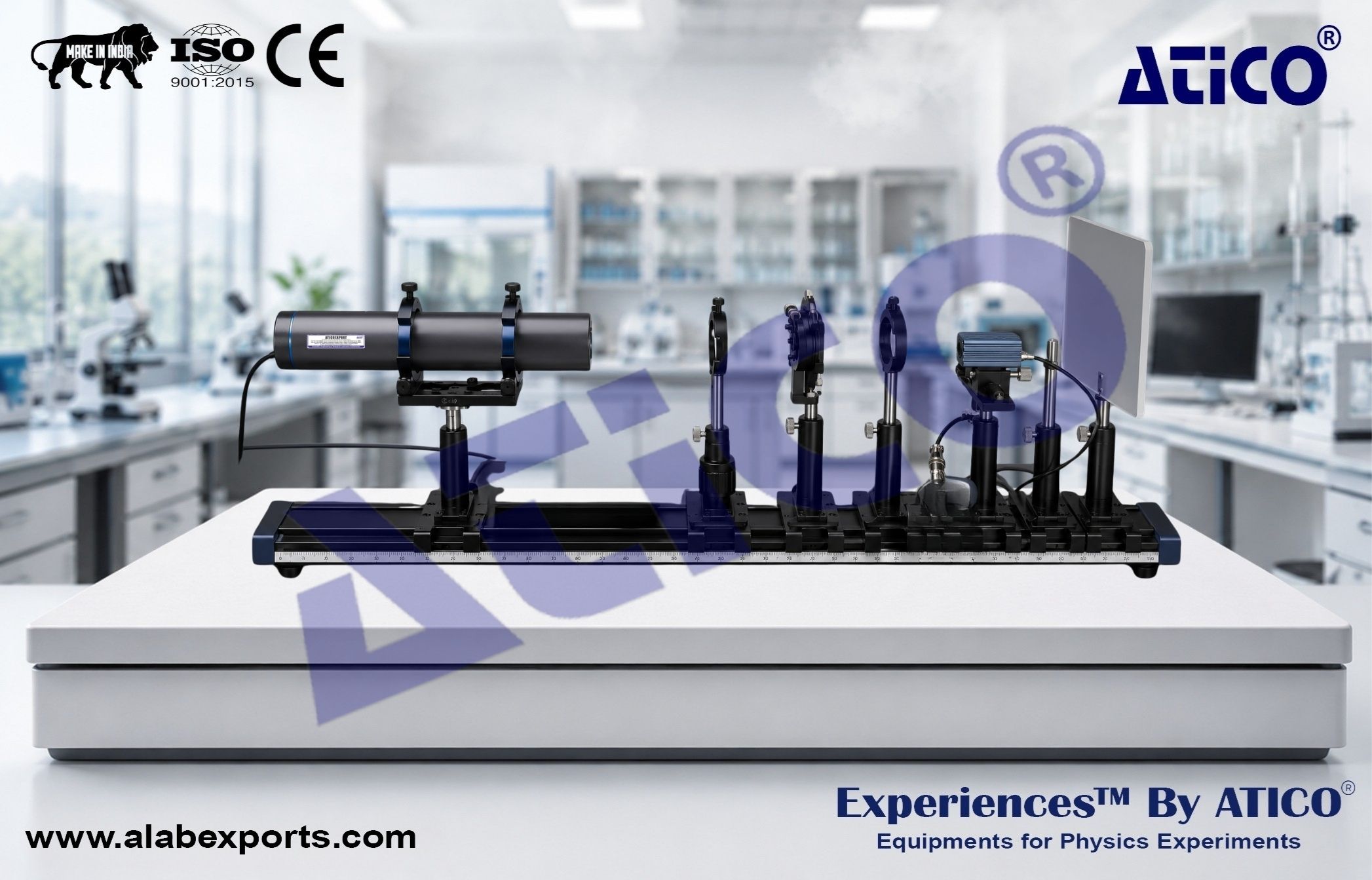

The Measurement of Diffraction Intensity Complete Model Optics Educational Kits is designed for quantitative investigation of optical diffraction phenomena. The apparatus enables students to observe diffraction patterns and measure their intensity distribution accurately using a photodetector and amplifier system. Diffraction patterns generated by various apertures and gratings are converted into electrical signals by the photodetector, and the measured intensity values are displayed digitally. By recording the numerical data, students can analyze and plot diffraction intensity distributions, providing a deeper understanding of wave optics and diffraction theory. The system supports both Fraunhofer (far-field) and Fresnel (near-field) diffraction experiments, making it an ideal educational tool for optics and physics laboratories. The comprehensive instructional manual includes experimental setups, theoretical concepts, operating procedures, and measurement techniques. Physics Lab Experiments from Atico Exports.

Fraunhofer Diffraction (Far-Field) :

• Single-Slit Diffraction
• Multi-Slit Diffraction
• Circular Aperture Diffraction
• Transmission Grating Diffraction

Fresnel Diffraction (Near-Field) :

• Single-Slit Diffraction
• Multi-Slit Diffraction
• Circular Aperture Diffraction
• Straight Edge Diffraction

• Quantitative Diffraction Analysis
• Wave Optics Studies
• Diffraction Intensity Distribution Measurement
• Optical Signal Detection and Analysis
• Physics and Optics Laboratory Training

Optical Rail :

• 1 m, Black Anodized Aluminum
• Quantity: 1

General Carrier :

• Standard
• Quantity: 2

X-Translation Carrier :

• Standard
• Quantity: 2

X-Z Translation Carrier :

• Standard
• Quantity: 1

Transverse Measurement Stage :

• Travel: 80 mm
• Accuracy: 0.1 mm
• Quantity: 1

He-Ne Laser :

• 1.5 mW

• Quantity: 1

Lens Holders :

• Standard
• Quantity: 2

Plate Holder :

• Standard
• Quantity: 1

White Screen :

• Standard
• Quantity: 1

Adjustable Slit :

• Continuously Adjustable, 0–2 mm
• Quantity: 1

Laser Holder :

• Standard
• Quantity: 1

Lenses :

• f = 6.2 mm and 150 mm
• Quantity: 1 Each

Multi-Slit Chrome Plate :

• 2, 3, 4, and 5 Slits
• Slit Width: 0.03 mm
• Adjacent Slit Gap: 0.06 mm
• Quantity: 1

Multi-Hole Chrome Plate :

• Circular Holes: 0.1, 0.2, 0.3, 0.4, 0.5 mm Diameter
• Square Holes: 0.1, 0.2, 0.3, 0.4, 0.5 mm Side Length
• Quantity: 1

Transmission Grating :

• 20 Lines/mm with Mount
• Quantity: 1

Light Meter :

• Photodetector with Amplifier
• Quantity: 1

• Stable Performance with Easy Operation
• LED Display with Accurate Readings
• Includes He-Ne Laser and Photodetector with Amplifier
• Complete Experimental System
• Quantitative Diffraction Analysis
• Detailed Instruction Manual
