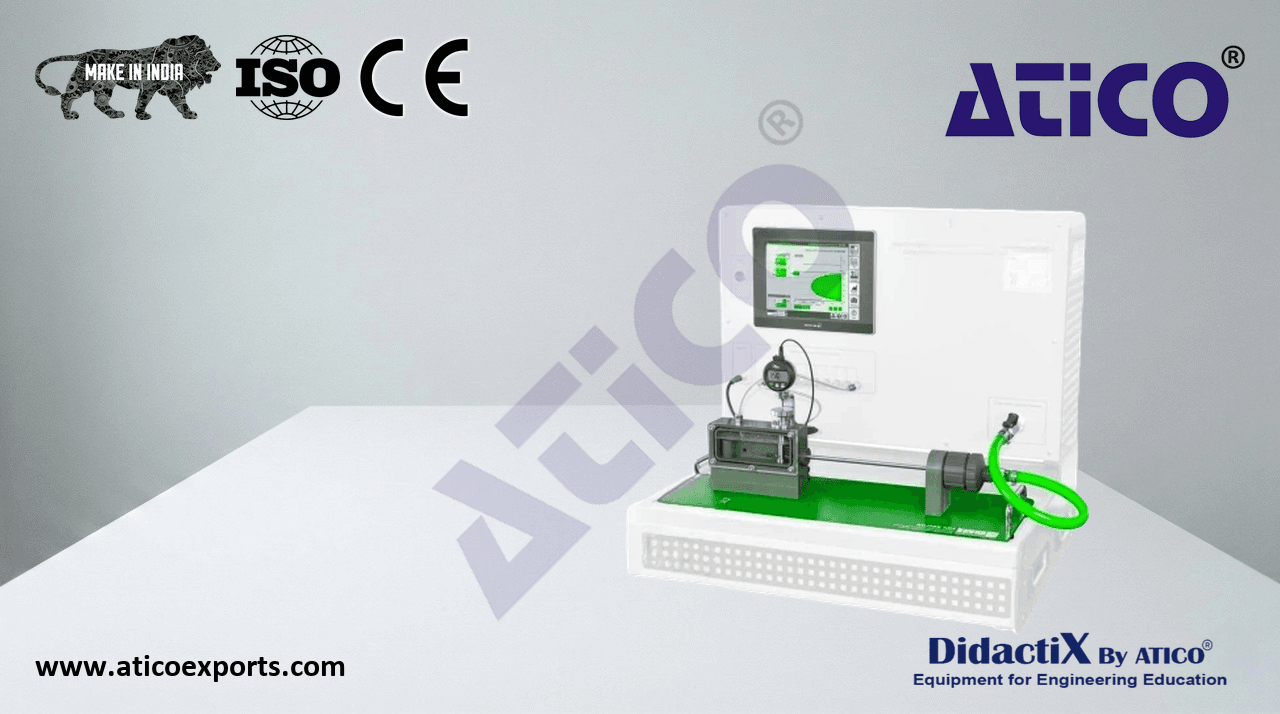

Measurement of flow profile Deluxe

This unit is used to investigate the flow profile. Differences in the flow formation can be detected through the use of measurement techniques.

• determine the flow profile by use of the dynamic pressure
• measurement of the dynamic pressure at the pipe section using a Pitot-static tube
• position of the vertically movable Pitot-static tube can be determined using a digital dial gauge
• transparent experimental setup shows the measuring method
• flow rate and temperature in the pipe section can be adjusted via the base module
• automatic identification of accessories via RFID technology
• experiment execution and display of measured values via touch screen (HMI)
• network capability: access to ongoing experiments and their results from up to 10 external workstations simultaneously via the local network
• water supply and heating via the base module
