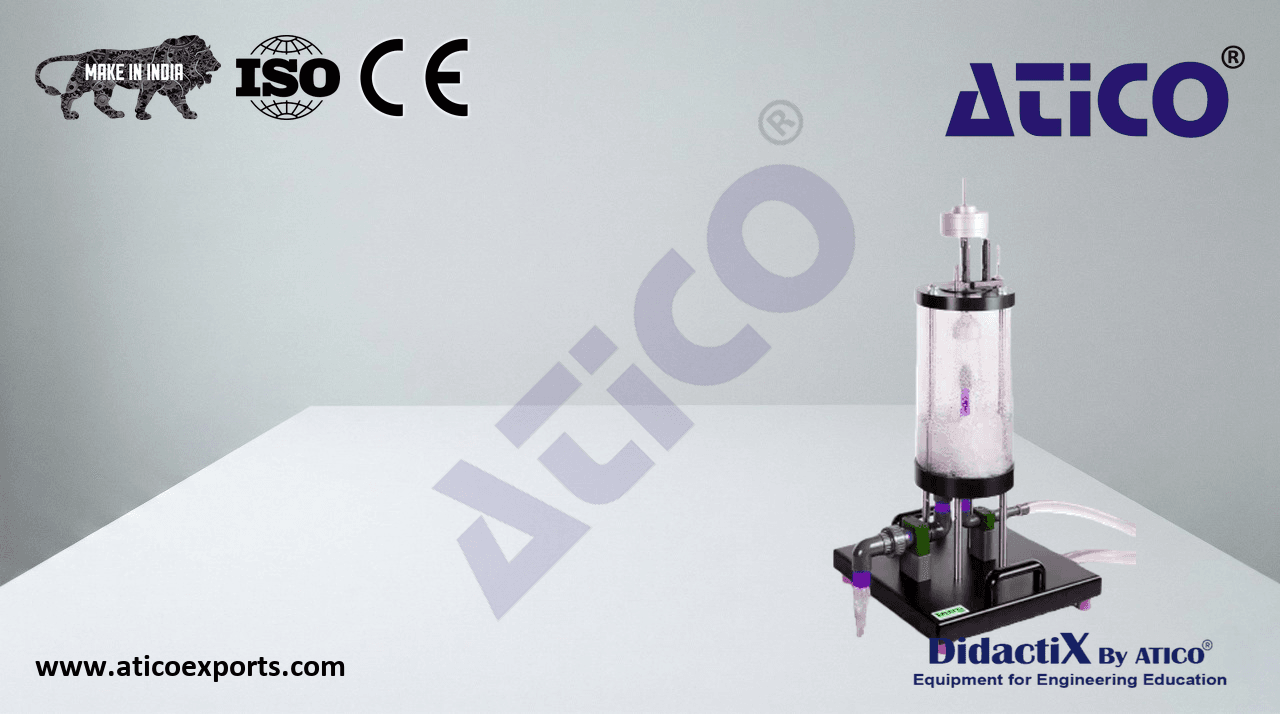

Measurement of jet forces Deluxe

Every change in the velocity of a fluid by deflection, deceleration or acceleration is related to a change in momentum. The change in momentum simultaneously causes a force effect. In practice, this is used, for example, to drive a Pelton turbine. Learn about Measurement of jet forces suppliers for optimal educational outcomes..

• investigation of jet forces and application of the momentum equation
• 2 interchangeable nozzles for generating the water jet
• 4 differently shaped deflectors: flat surface, inclined surface, deepening in form of a truncated cone, deepening in form of a cone
• splash guard made of transparent material for observation of experiments
• measurement of jet forces via bending beam
• nozzle pre-pressure measurement via a pressure connection in the inlet of the nozzle
• water jet can be adjusted via selection of the nozzle and flow rate on the base module
• automatic identification of accessories via RFID technology
• experiment execution and display of measured values via touch screen (HMI)
• network capability: access to ongoing experiments and their results from up to 10 external workstations simultaneously via the local network
• water supplied via the base module
