Measurement of V-I Characteristics of Nonlinear Components Computer Controlled

Experiments :

• Study of voltage divider and current control circuits.

Experiments :

• Measurement of volt-ampere characteristics of linear and non-linear electronic components.

Experiments :

• Investigation of the photoelectric characteristics of light-emitting devices.

DC Voltage Source :

• Output: +5 V DC.
• Maximum Current: 0.5 A.

Digital Voltmeter :

• Range: 0–1.999 V.
• Resolution: 0.001 V.
• Range: 0–19.99 V.
• Resolution: 0.01 V.

Digital Ammeter :

• Measuring Range: 0–200 mA.
• Resolution: 0.01 mA.

Standard Accessories :

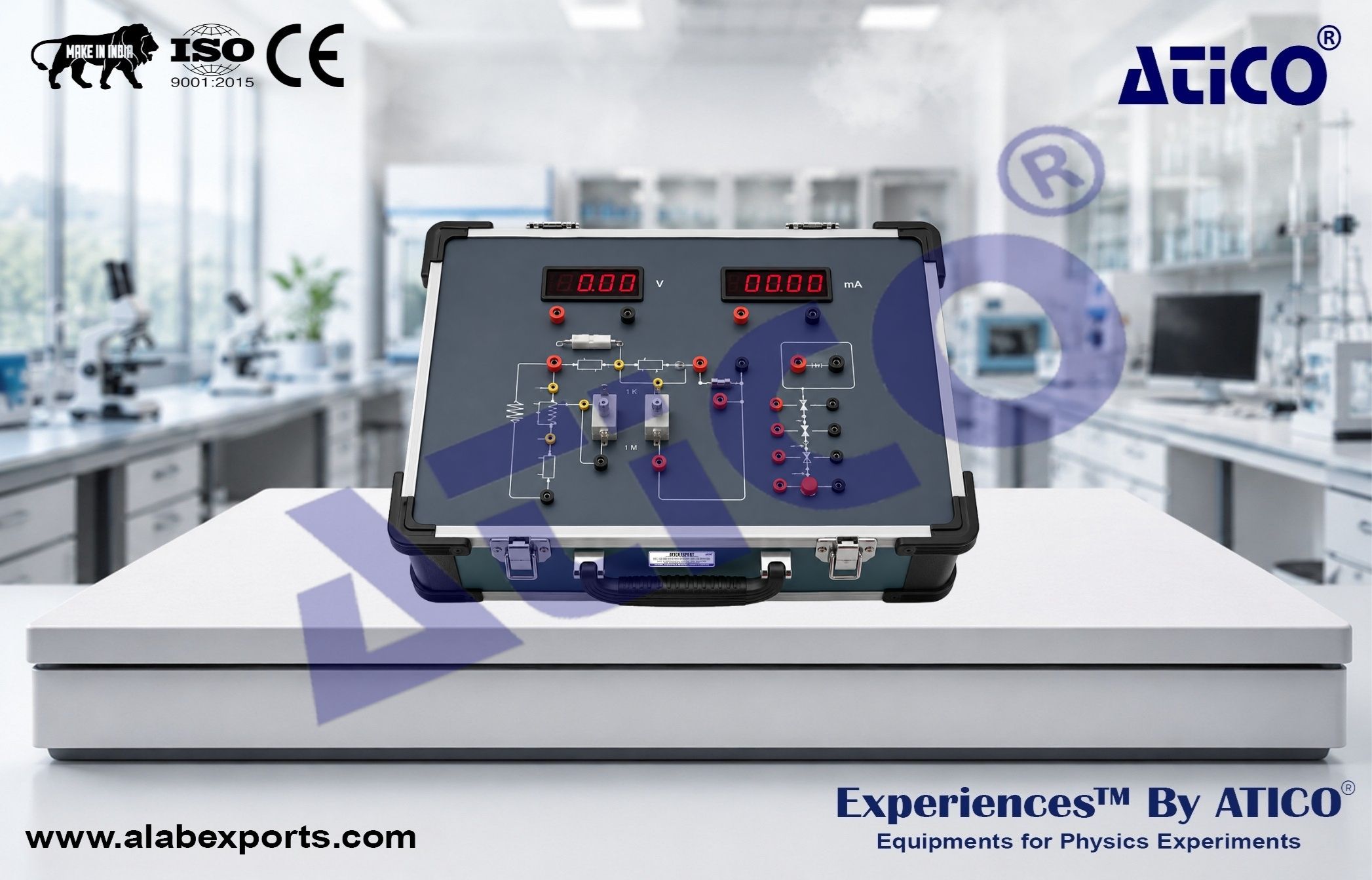

• Main Experimental Unit – 1 No.
• Connection Wires – 10 Nos.
• Power Cord – 1 No.
• Instruction Manual – 1 No.

Manufactured By :

• Atico Export India for Physics Lab Experiments.
