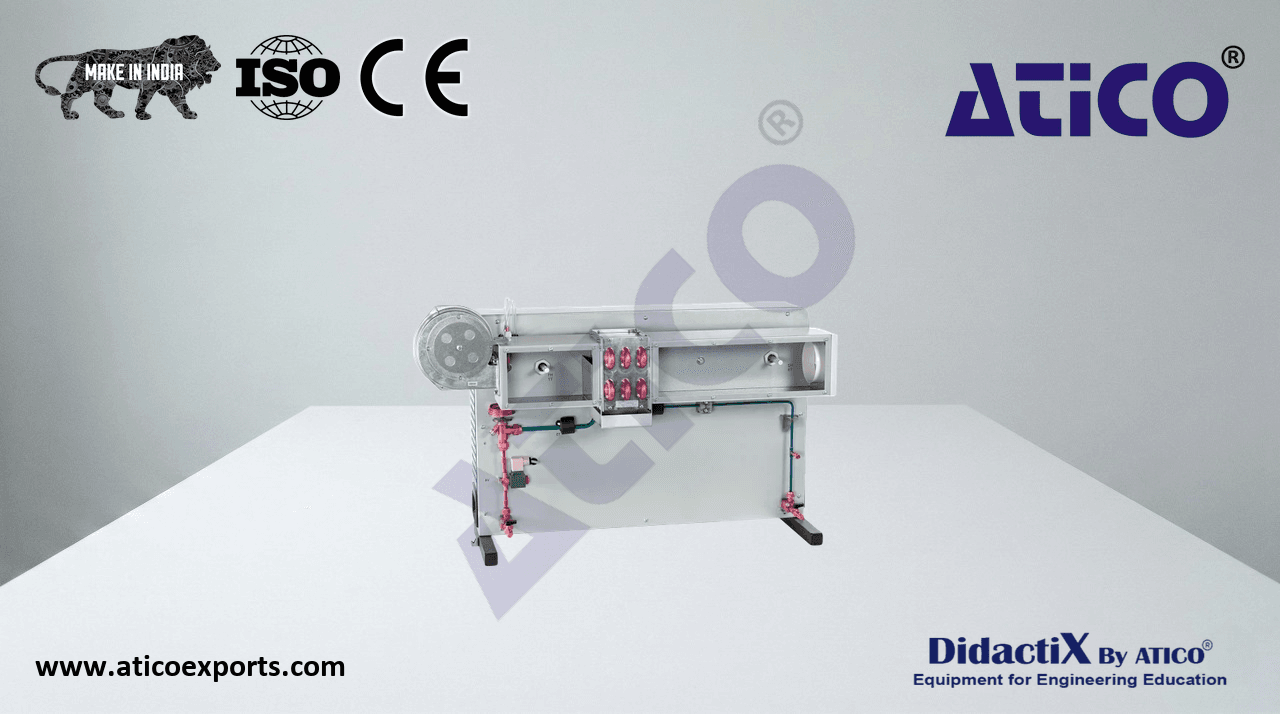

Model of a simple air conditioning system

ET 915. 06 is part of the HSI training system for refrigeration and air conditioning technology. In combination with the base unit the operational model of a simple air conditioning system is created. Learn about Model of a simple air conditioning system manufacturers for optimal educational outcomes.. The model is plugged onto the base unit, secured using fasteners and connected with refrigerant hoses to become a complete refrigeration circuit for the air cooler.

• model of a simple air conditioning system to plug onto the base unit
• training system with HSI technology
• air duct with transparent front
• evaporator as air cooler
• radial fan with throttle valve
• thermostatic expansion valve as expansion element
• sensors to record temperature, humidity and differential pressure for determining the volumetric air flow rate
• operation of individual components and of the system and fault simulation via software
• software with control functions and data acquisition via USB under Windows 11
• software: educational software, data acquisition, system operation
