Modern Optics Experiment Kit

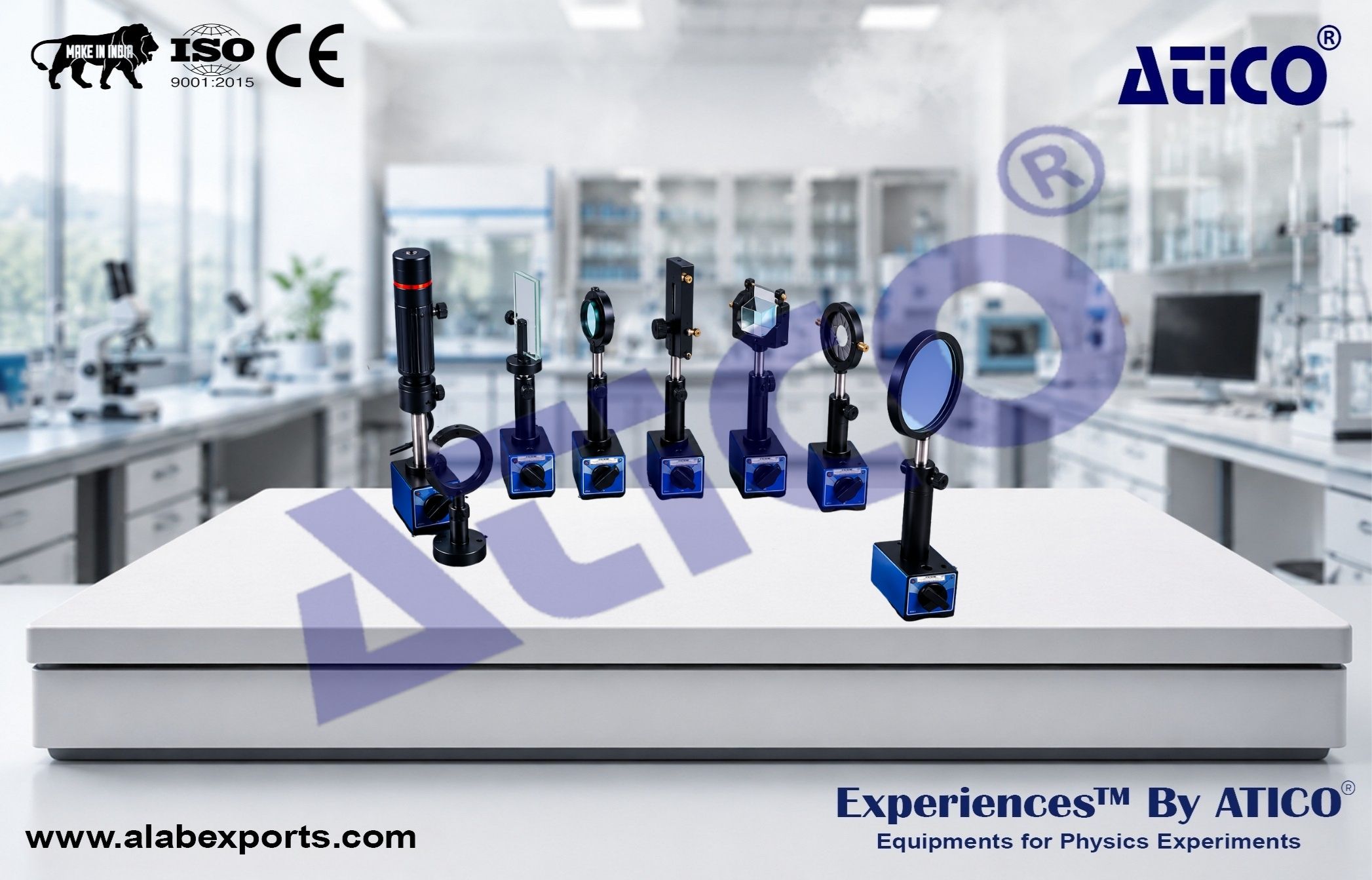

This comprehensive optics experiment kit is designed for advanced studies in geometrical optics, wave optics, interferometry, diffraction, spectroscopy, holography, and optical image processing. It provides a modular platform for performing a wide range of optical experiments using precision optical components and laser sources, making it ideal for undergraduate and postgraduate physics laboratories. Physics Lab Experiments from Atico Exports.

Parts Included :

• XYZ Translation Stage on Magnetic Base – 1
• X-Z Translation Stage on Magnetic Base – 1
• Z Translation Stage on Magnetic Base – 2
• Magnetic Bases – 4
• Two-Axis Mirror Holders – 2
• Lens Holders – 2
• Grating/Prism Table – 1
• Plate Holder – 1
• White Screen – 1
• Object Screen – 1
• Iris Diaphragm – 1
• Two-Dimensional Adjustable Light Source Holder – 1
• Sample Stage – 1
• Single-Sided Adjustable Slit – 1
• Lens Group Holder – 1
• Standing Ruler – 1
• Direct Measurement Microscope Holder – 1
• Single-Sided Rotary Slit – 1
• Biprism Holder – 1
• Laser Holder – 1
• Ground Glass Screen – 1
• Paper Clip – 1
• Beam Expander Holder – 1
• Beam Expanders (f = 4.5 mm and 6.2 mm) – 1 each
• Lenses (f = 45, 50, 70, 190, 225, 300 mm) – 1 each
• Lens (f = 150 mm) – 2
• Doublet Lens (f = 105 mm) – 1
• Direct Measurement Microscope – 1
• Plane Mirrors – 3
• Beam Splitter (7:3) – 1
• Beam Splitters (5:5) – 2
• Dispersion Prism – 1
• Transmission Gratings (20 lines/mm and 100 lines/mm) – 1 each
• Composite Grating (100 lines/mm and 102 lines/mm) – 1
• Character Grid – 1
• Transparent Crosshair – 1
• Checkerboard Target – 1
• Precision Aperture (0.3 mm) – 1
• Silver Halide Holographic Plates (90 mm × 240 mm) – 12 Plates
• Millimeter Ruler – 1
• Theta Modulation Plate – 1
• Hartmann Diaphragm – 1
• Small Object – 1
• Optical Filters – 2
• Spatial Filter Set – 1
• He-Ne Laser with Power Supply (>1.5 mW, 632.8 nm) – 1
• Low-Pressure Mercury Lamp with Housing (20 W) – 1
• Low-Pressure Sodium Lamp with Housing and Power Supply (20 W) – 1
• Variable White Light Source (12 V / 30 W) – 1
• Fabry-Perot Interferometer – 1
• Air Chamber with Pump and Pressure Gauge – 1
• Four-Digit Manual Counter (0–9999 Counts) – 1

• Modular optical platform supporting a wide range of advanced optics experiments.
• Suitable for studies in interferometry, diffraction, spectroscopy, holography, and optical image processing.
• Precision optical and mechanical components ensure accurate experimental results.
