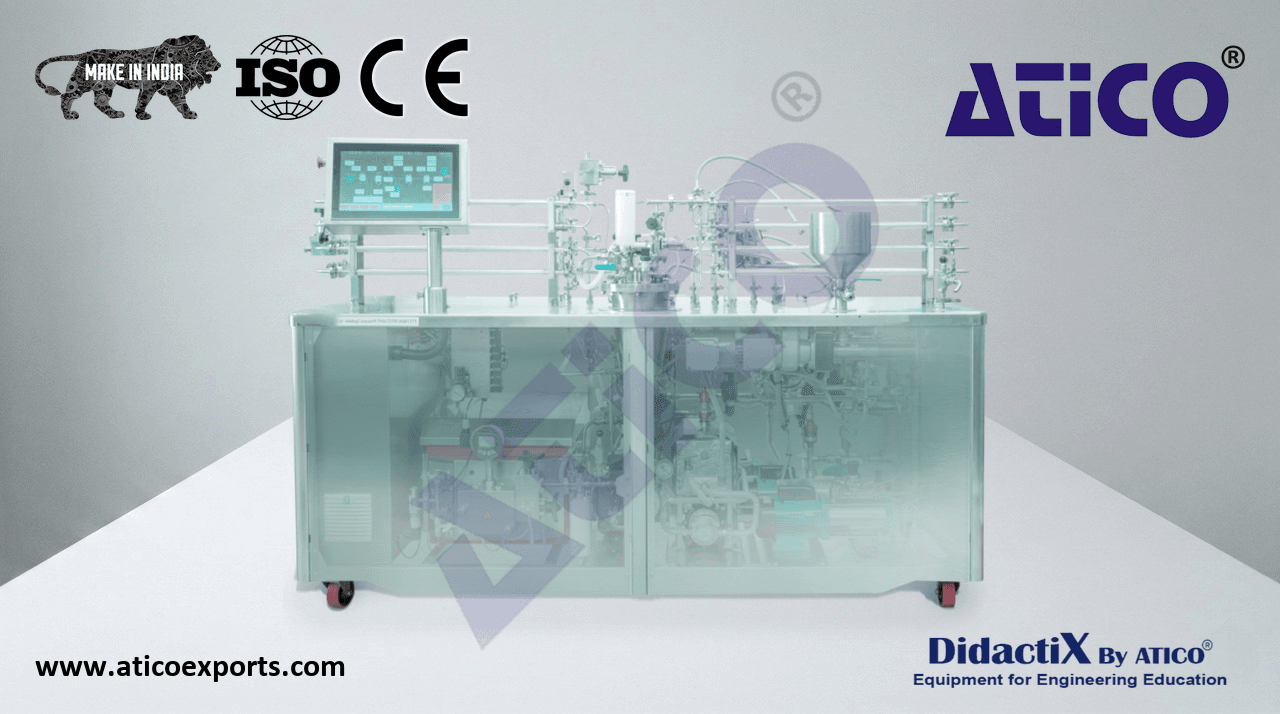

Modular Miniature Scale HTST / UHT Processing System

A highly flexible miniature-scale HTST/UHT processing system ideal for laboratory development of liquid food products. It can operate independently or as part of a continuous processing line.

This compact and mobile system includes an integrated pressurised hot water generator and requires only electricity and cooling water, making it suitable for facilities with limited utilities.

Pump type: Progressing cavity variable-speed pump
Standard flow: 10–30 L/hr
High flow: Up to 120 L/hr
Water capacity: 4.0 litres
Water temperature: Up to 165°C
Heating duty: 4 or 6 kW
Materials: 316 stainless steel product contact surfaces
Working pressure: Up to 10 bar
Holding tube options: Short and extended residence times

• Touchscreen control of operations
• Tubular and plate heat exchanger options
• Low product hold-up
• High accuracy temperature sensors
• Fully instrumented
• Upstream and downstream homogenisation
• Aseptic and non-aseptic processing modes
• Automated sterilisation options
• Recipe management system
• Controlled outlet cooling
• Two-stage cooling option
• Backpressure control for particulate products
