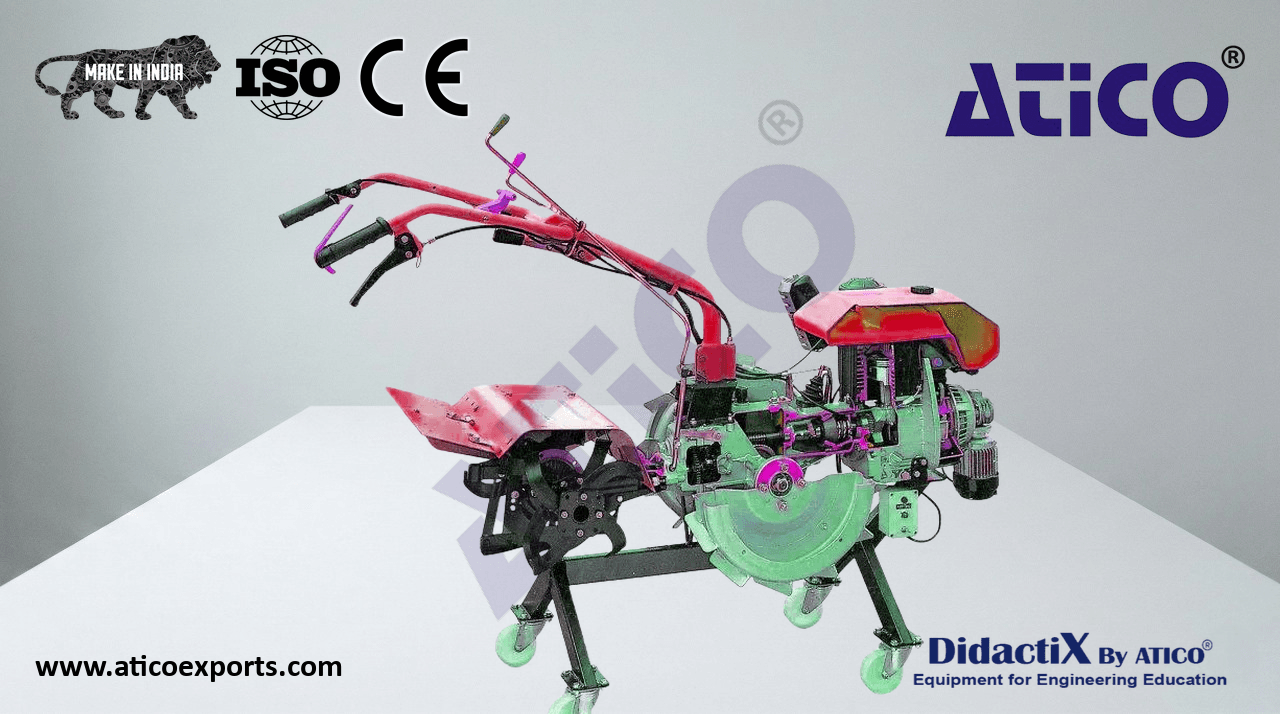

Motor Cultivator Cut-Away, Single-Cylinder Engine

The cut-away model represents a modern Motor Cultivator with a gas-powered single-cylinder, air-cooled 6/10 hp engine. The cut-away model represents a modern Motor Cultivator with a gas-powered single-cylinder, air-cooled 6/10 hp engine. It has been carefully sectioned for training purposes, professionally painted with different colors to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system, and other key components. Many parts have been chromium plated and galvanized for a longer life. The unit operates electrically and requires a 120 volt power source. It runs at a reduced speed to allow students to easily understand and observe the operation of the various mechanical parts.

It has been carefully sectioned for training purposes, professionally painted with different colors to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system, and other key components.
It runs at a reduced speed to allow students to easily understand and observe the operation of the various mechanical parts.

Specifications

• 4 stroke, single cylinder gas engine • Power: 6 Kw • Recoil starter • Dry clutch with manual control • Gearbox 3+2 • Reverse command by lever • PTO • Adjustable handlebars • Motor-stop safety device

Weight And Dimensions

Size: 70cm x 180cm x 110cm (L x W x H) Net Weight: 100 kg Gross Weight: 150 kg
