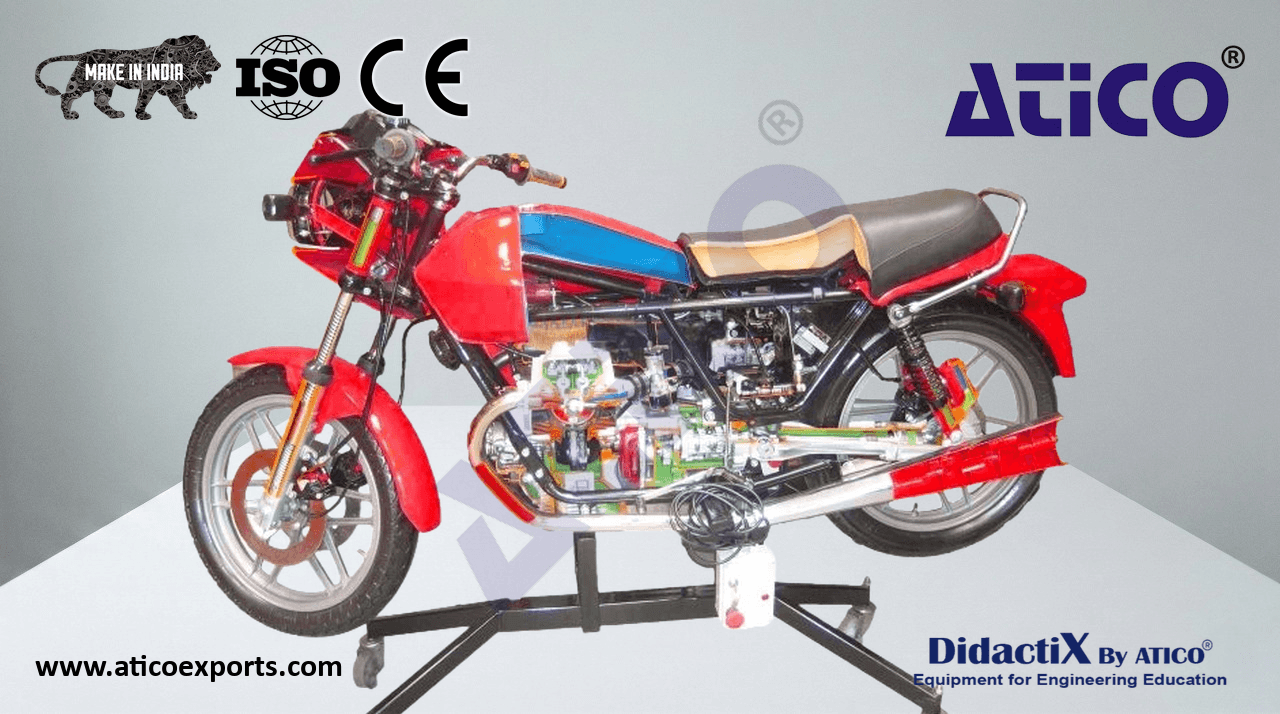

Motorcycle Cut-Away, V-Twin Engine

This motorcycle cut-away model features a 300/500cc V-twin 2 cylinder engine. The model has been carefully sectioned for training purposes.

Specifications

• 2 stroke, 2 cylinder motorcycle engine
• Cylinder bore: 66 x 50 x 6
• Capacity: 350/500cc (approximately)
• Maximum Power: 35 cv at 8100 rpm
• Overhead valve distribution with axis and rocker
• Lubrication system with lobe pump
• Camshaft on cylinder block with chain
• Air cooling system, two single-body carburetors
• Non-lubricated single disk clutch with diaphragm spring
• Geared main transmission
• 5-speed gearbox
• U-shaped chassis with tubular structure
• Front suspension by telescopic fork with hydraulic shock absorber
• Back suspension by oscillating fork with adjustable springs having hydraulic shock absorber
• Front and back wheels in light alloy
• Front brake disk with two-cylinder fixed clasp
• Back brake disk with two-cylinder fixed clasp
• Operates electrically at 120 volts / 60 Hz
• Mounted on stand with wheels
• Compliance: CE Mark

Weight And Dimensions

Size: 200cm x 70cm x 130cm (L x W x H) Net Weight: 160 kg Gross Weight: 230 kg.
